Publication 1756-UM009C-EN-P - December 2010

263

Calibrate the ControlLogix Analog I/O Modules Chapter 11

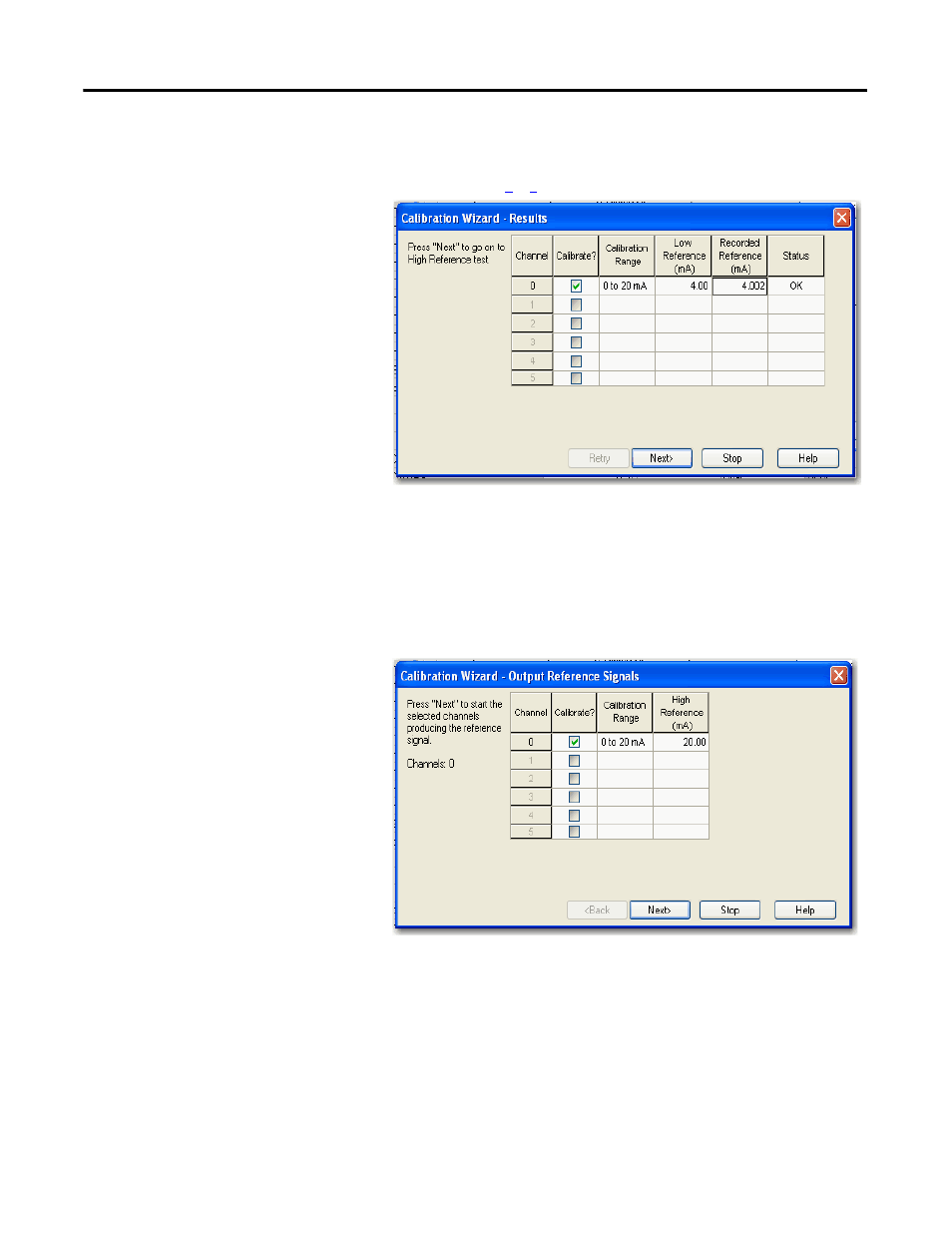

A Results wizard displays the status of each channel after calibrating for
a low reference. If channels are OK, continue. If any channel reports an
error, retry steps

7

9

until the status is OK.

11.

Click Next.

12.

Set the channels to be calibrated for a high reference.

The Output Reference Signals wizard appears to show which channels
will be calibrated for a high reference and the range of the calibration. It
also shows what reference signal is expected at the input.

13.

Click Next.
