Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 236
236
Publication 1756-UM009C-EN-P - December 2010

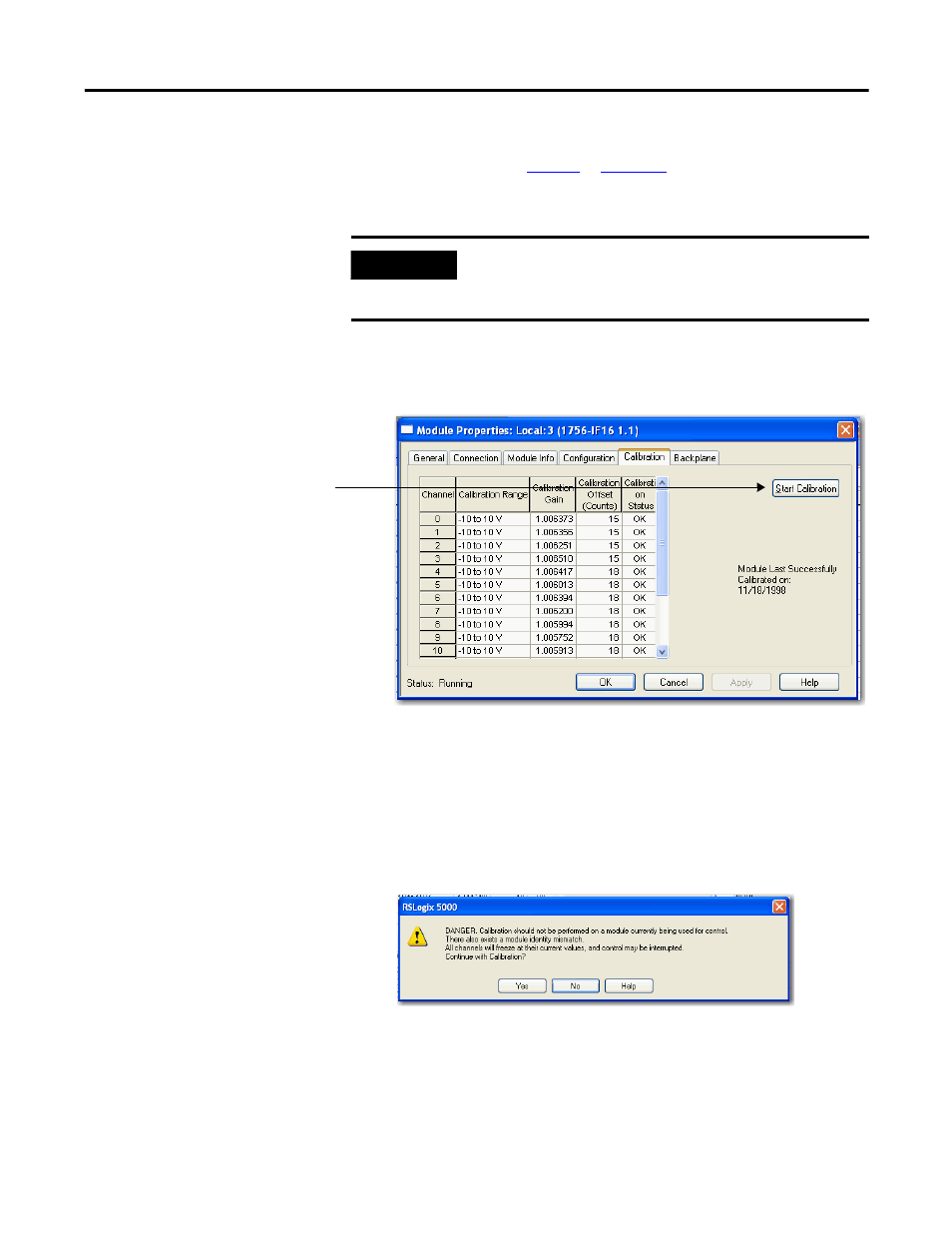

Chapter 11 Calibrate the ControlLogix Analog I/O Modules
While you are online, you must access the Calibration tab on the Module
Properties dialog box. See
for procedures.
Follow these steps to calibrate your module.
1.
Connect your voltage calibrator to the module.
2.
Go to the Calibration tab on the Module Properties dialog box.
3.
Click Start Calibration to access the Calibration Wizard to step through
the process.
If your module is not in Program mode, a warning message appears.
You must manually change the module to Program mode before
clicking Yes.
IMPORTANT
The 1756-IF16 module is used in the screen facsimiles for the
calibration process. However, the procedures are the same for
the 1756-IF8 module.
