Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 342

342
Publication 1756-UM009C-EN-P - December 2010
Appendix C Use Ladder Logic To Perform Run Time Services and Reconfiguration

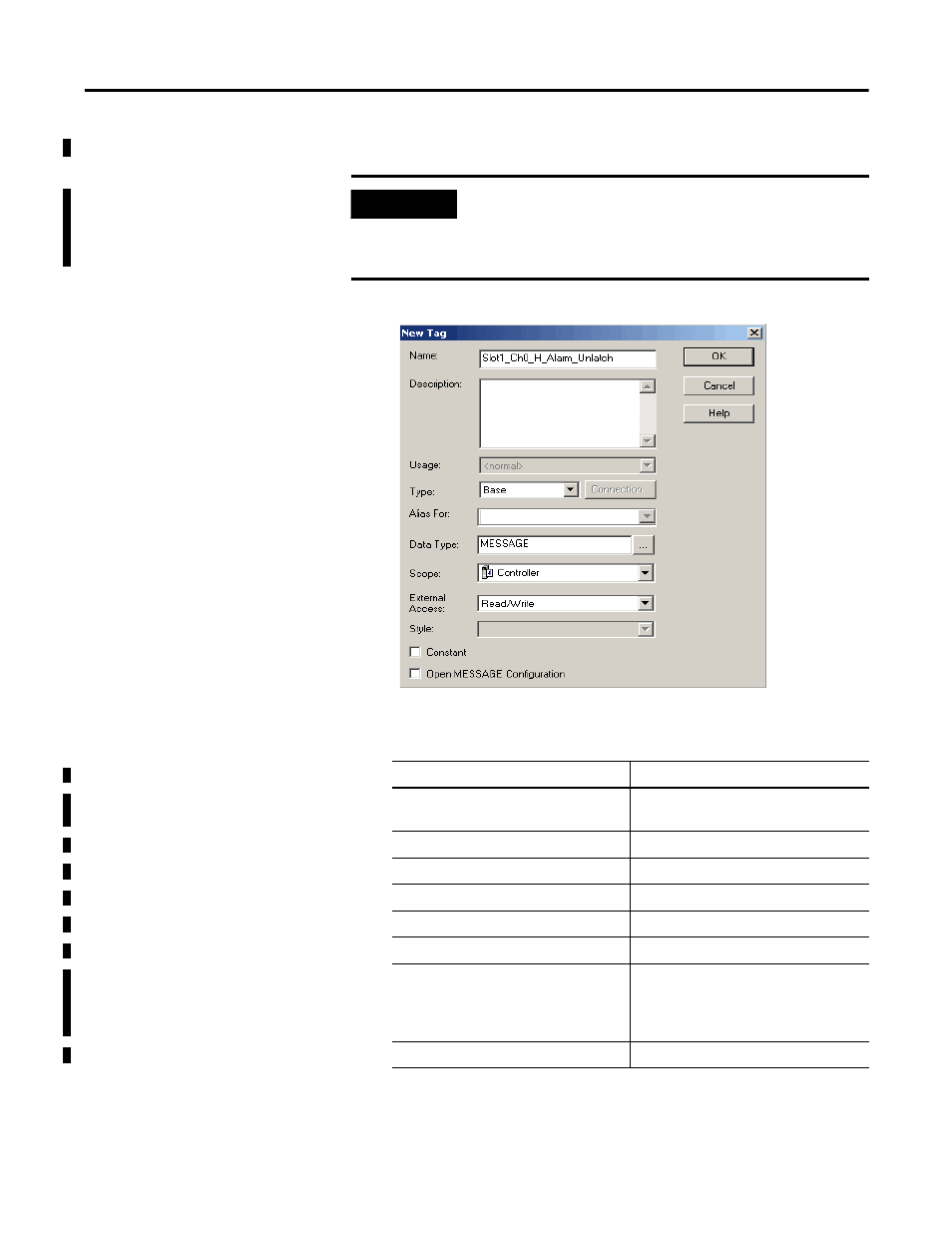

The New Tag dialog box appears with the cursor in the Name field.
6.
Choose from the options in the New Tag dialog box.
IMPORTANT
We suggest you name the tag to indicate what module service
the message instruction is sending. For example, if a message
instruction is to unlatch a high alarm, then name the tag ‘High
alarm unlatch’ to reflect this.
Field Name
Description
Name
Type the tag name, including the slot
number in the module.
Description
Type an option tag description.
Usage
Use the default.
Type
Use the default.
Alias for
Leave blank.
Data Type
Choose MESSAGE.
Scope
Choose the Controller scope.
Note: Message tags can be created
only with the Controller scope.
External Access
Use the default.
