238 Publication 1756-UM009C-EN-P - December 2010
Chapter 11 Calibrate the ControlLogix Analog I/O Modules
6. Click Next.
7. Set the calibrator for the low reference and apply it to the module.

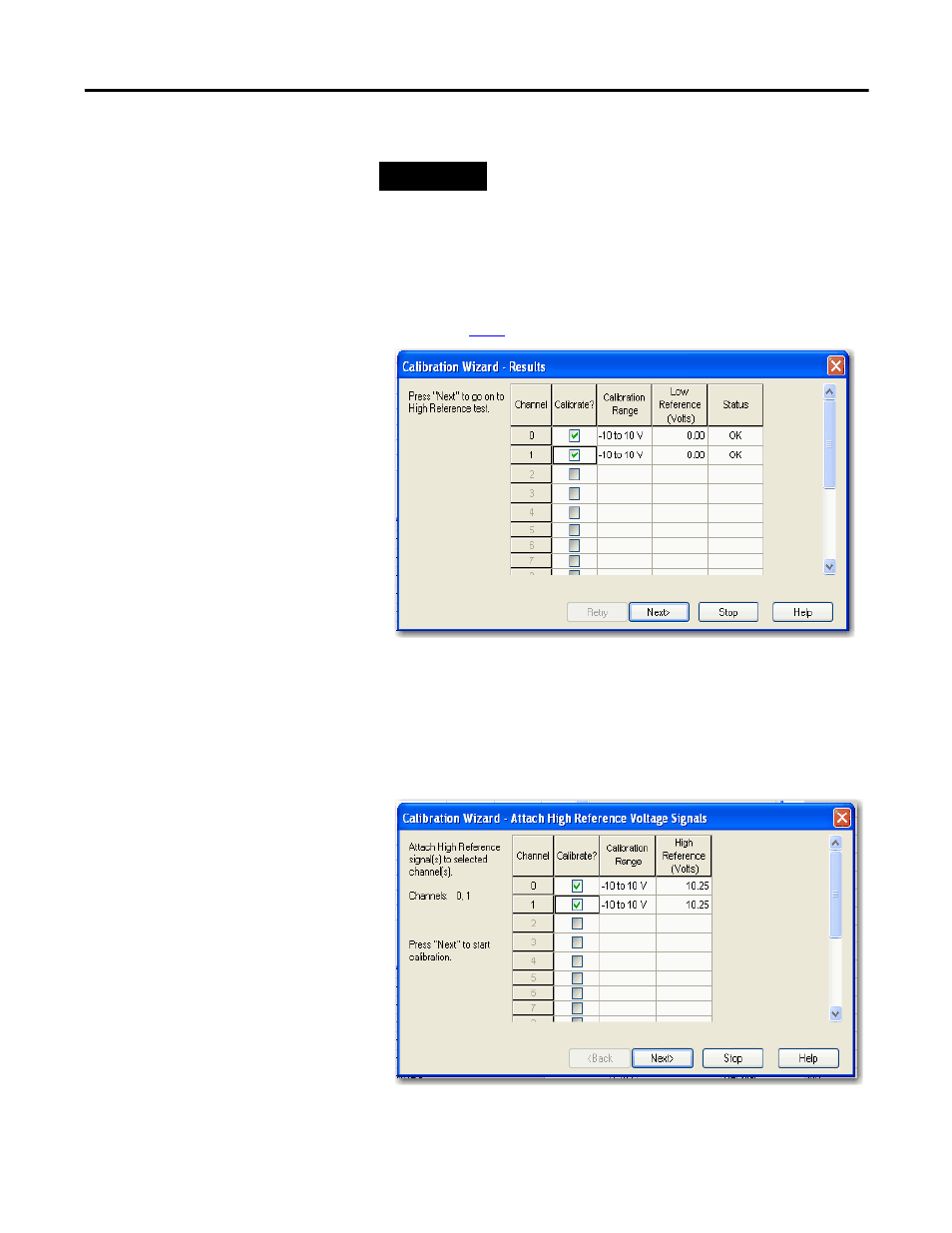

A Results wizard displays the status of each channel after calibrating for
a low reference. If channels are OK, continue. If any channel reports an
error, retry
step 7 until the status is OK.
8. Set the calibrator for the high reference voltage and apply it to
the module.
The High Reference Voltage Signals wizard appears to show which
channels will be calibrated for a high reference and the range of the
calibration. It also shows what reference signal is expected at the input.
9. Click Next.
TIP
Click Back to return to the last window to make any
necessary changes. Click Stop to halt the calibration
process, if necessary.
