1756-of6vi, Controllogix voltage loop output analog module – Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual

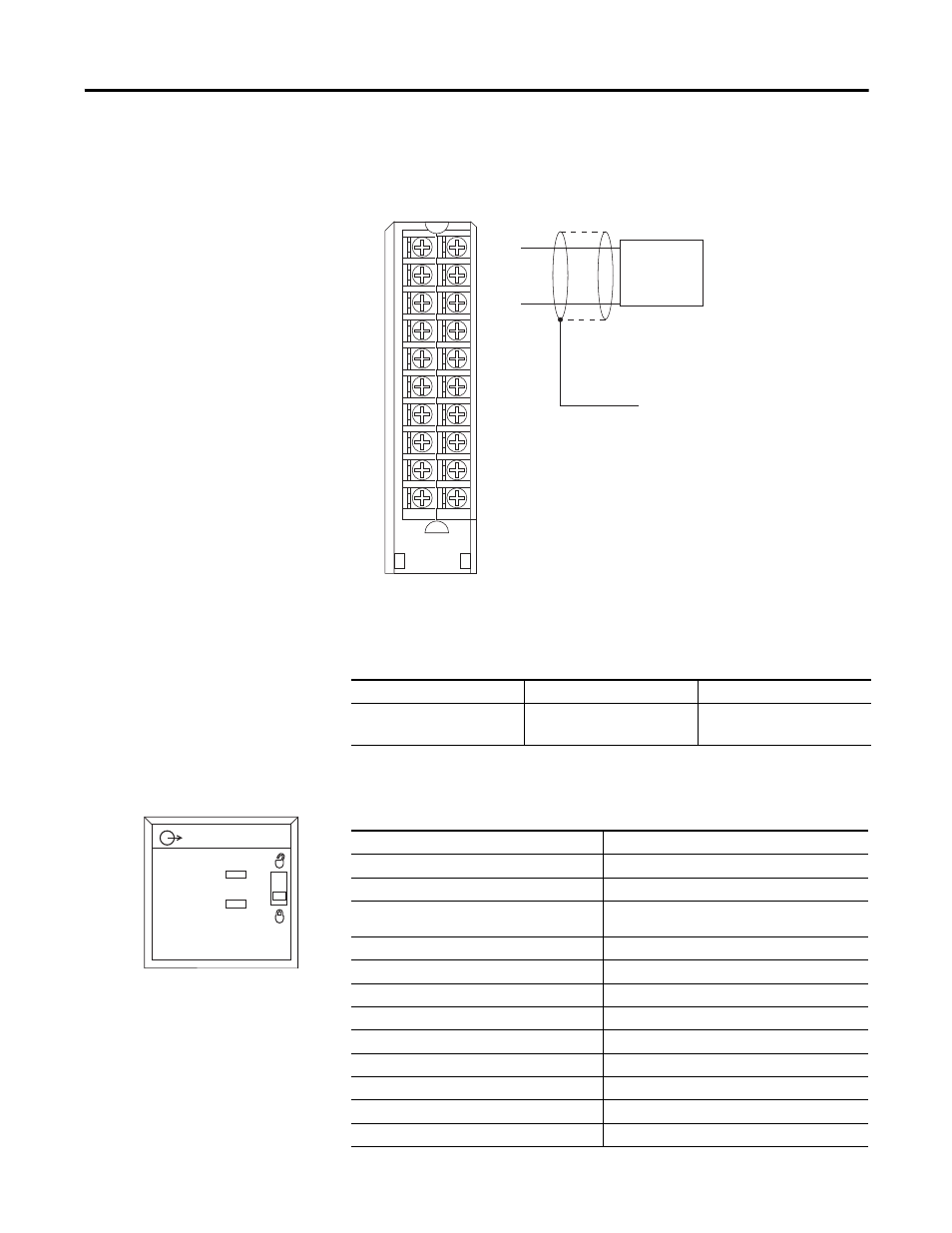

Page 320

320
Publication 1756-UM009C-EN-P - December 2010
Appendix A Analog I/O Module Specifications
1756-OF6VI
ControlLogix voltage loop output analog module
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
+
–
Shield Ground
1756-OF6VI
OUT-1
Not Used
RTN-1
OUT-3
RTN-3
Not Used
OUT-5
Not Used
Not Used
RTN-5
OUT-0
Not Used
RTN-0
OUT-2
RTN-2
Not Used
OUT-4
Not Used
Not Used
RTN-4
User Analog
Output Device
· Place additional devices anywhere in the loop.
· Do not connect more than two wires to any single terminal.
Input Signal to User Count Conversion - 1756-OF6V
Range
Low Signal and User Counts
High Signal and User Counts
±10V
-10.517V
-32768 counts
10.517V
32767 counts
Technical Specifications - 1756-OF6VI
Attribute
1756-OF6VI
Outputs
6 individually isolated
Output range
± 10.5V
Resolution
14 bits across 21V (1.3 mV)
(13 bits across 10.5V +sign bit)
Current draw @ 5.1V
250 mA
Current draw @ 24V
175 mA
Power dissipation, max
4.85 W
Thermal dissipation
16.54 BTU/hr
Output impedance
<1
Ω
Open circuit detection
None
Overvoltage protection
24V DC
Short circuit protection
Electronically current limited
Drive capability
> 1000
Ω
loads, 10 mA
ANALOG OUTPUT
CAL
OK
