Appendix A Analog I/O Module Specifications

1756-IF16

ControlLogix voltage/current analog input module

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

Shield
Ground

Channel 0

Channel 3

Jumper
Wires

i

i

A

2-wire

Transmitter

A

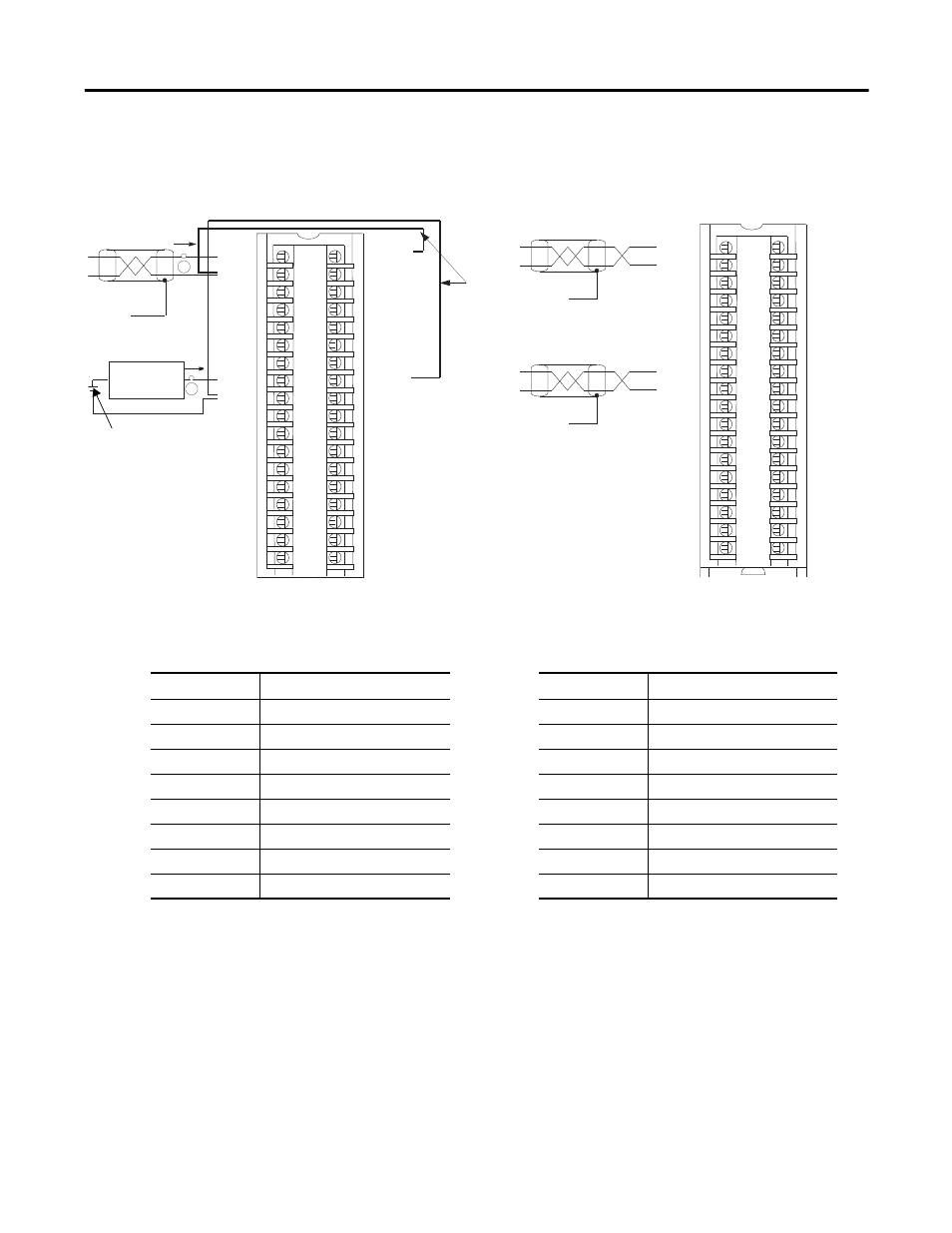

1756-IF16 Differential Current

IN-0

IN-1

IN-2

IN-3

IN-7

RTN

IN-4

IN-5

IN-6

IN-15

IN-8
IN-9

IN-10

IN-11

RTN

IN-12
IN-13

IN-14

i RTN-0

i RTN-1

i RTN-2

i RTN-3

i RTN-7

RTN

i RTN-4

i RTN-5

i RTN-6

i RTN-15

i RTN-8
i RTN-9

i RTN-10

i RTN-11

RTN

i RTN-12
i RTN-13

i RTN-14

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

+

+

Shield Ground

Channel 0

Channel 3

1756-IF16 Differential Voltage

IN-0

IN-1

IN-2

IN-3

IN-7

RTN
IN-4

IN-5

IN-6

IN-15

IN-8
IN-9

IN-10

IN-11

RTN
IN-12

IN-13

IN-14

i RTN-0

i RTN-1

i RTN-2

i RTN-3

i RTN-7

RTN
i RTN-4

i RTN-5

i RTN-6

i RTN-15

i RTN-8
i RTN-9

i RTN-10

i RTN-11

RTN
i RTN-12

i RTN-13

i RTN-14

Shield Ground

· Use this table when wiring your module in differential

current mode.

· All terminals marked RTN are connected internally.
· A 249

Ω

current loop resistor is located between IN-x and

i RTN-x terminals.

· If multiple (+) or multiple (-) terminals are tied together, connect

that tie point to a RTN terminal to maintain the module’s
accuracy.

· Place additional loop devices (such as strip chart recorders) at

the A location in the current loop.

· Do not connect more than two wires to any single terminal.

IMPORTANT: When operating in four-channel, High-speed mode, only
use channels 0, 2, 4 and 6.

Table 1.A

This channel

Uses these terminals

Channel 0

IN-0 (+), IN-1 (-), i RTN-0

Channel 1

IN-2 (+), IN-3 (-), i RTN-2

Channel 2

IN-4 (+), IN-5 (-), i RTN-4

Channel 3

IN-6 (+), IN-7 (-), i RTN-6

Channel 4

IN-8 (+), IN-9 (-), i RTN-8

Channel 5

IN-10 (+), IN-11 (-), i RTN-10

Channel 6

IN-12 (+), IN-13 (-), i RTN-12

Channel 7

IN-14 (+), IN-15 (-), i RTN-14

· Use this table when wiring your module in differential

voltage mode.

· All terminals marked RTN are connected internally.
· If multiple (+) or multiple (-) terminals are tied together, connect

that tie point to a RTN terminal to maintain the module’s
accuracy.

· Terminals marked RTN or i RTN are not used for differential

voltage wiring.

· Do not connect more than two wires to any single terminal.

IMPORTANT: When operating in four-channel, High-speed mode, only
use channels 0, 2, 4 and 6.

Table 1.B

This channel

Uses these terminals

Channel 0

IN-0 (+), IN-1 (-)

Channel 1

IN-2 (+), IN-3 (-)

Channel 2

IN-4 (+), IN-5 (-)

Channel 3

IN-6 (+), IN-7 (-)

Channel 4

IN-8 (+), IN-9 (-)

Channel 5

IN-10 (+), IN-11 (-)

Channel 6

IN-12 (+), IN-13 (-)

Channel 7

IN-14 (+), IN-15 (-)

User-provided
Loop Power
