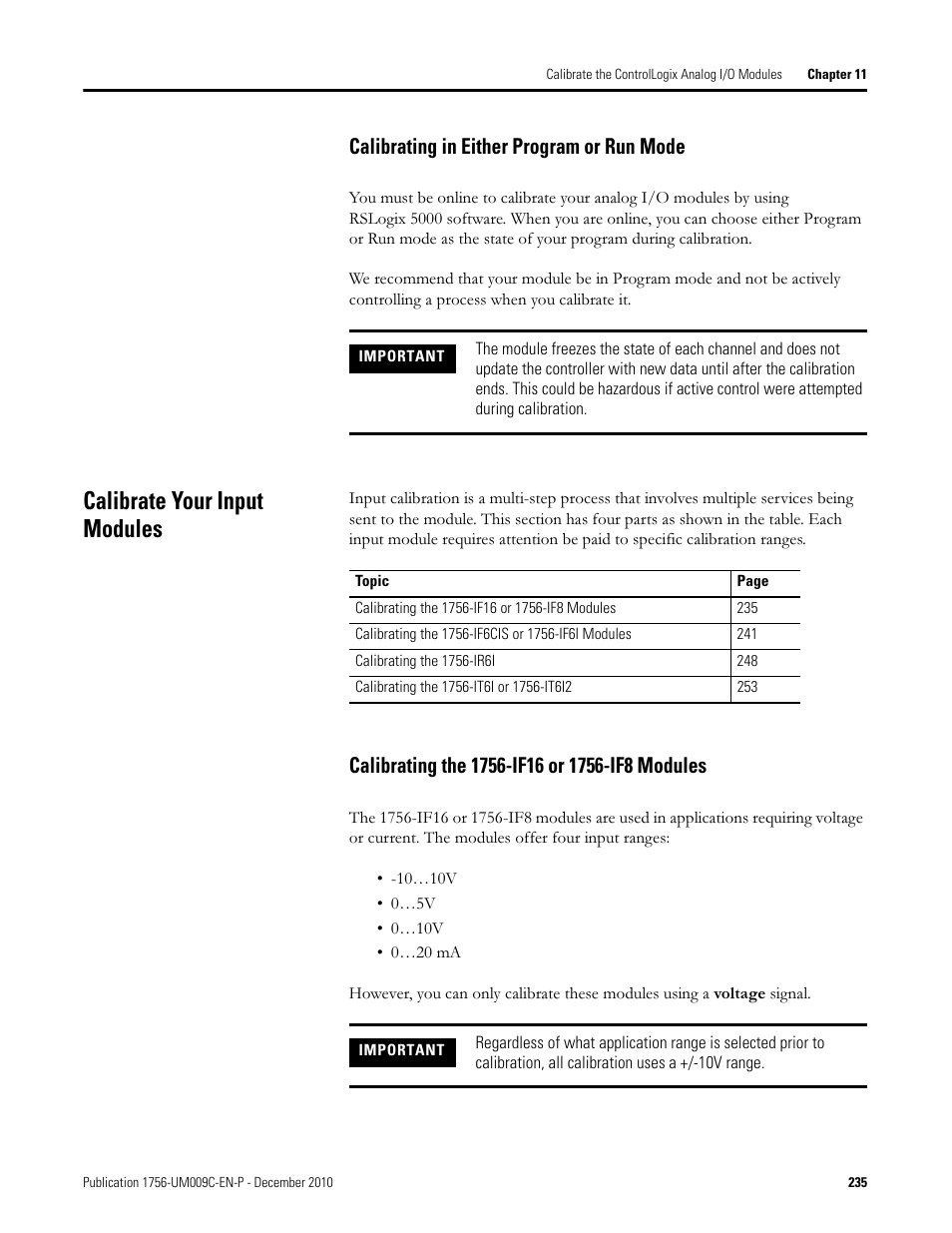

Calibrate your input modules, Calibrating in either program or run mode, Calibrating the 1756-if16 or 1756-if8 modules – Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 235
