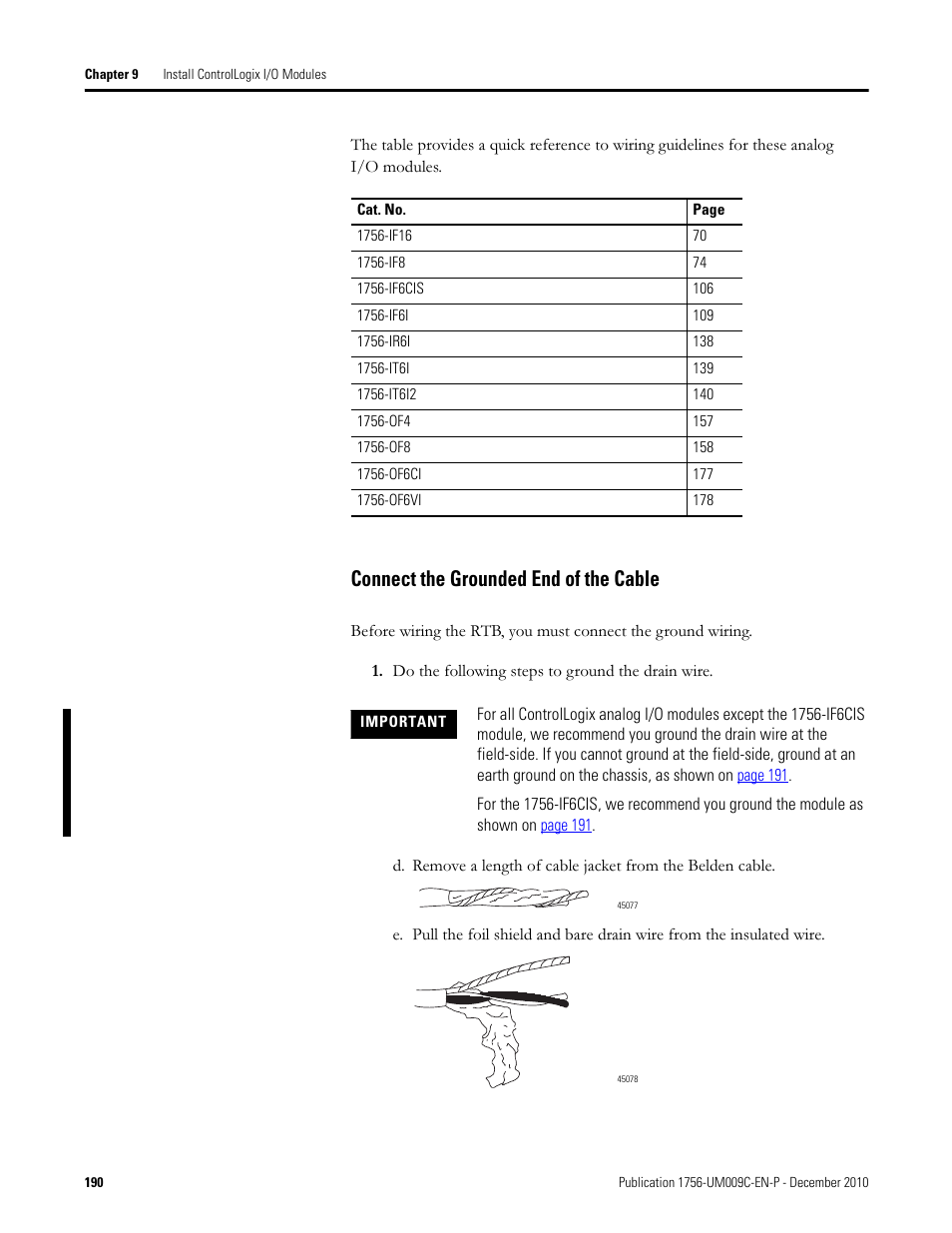

Connect the grounded end of the cable – Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 190
