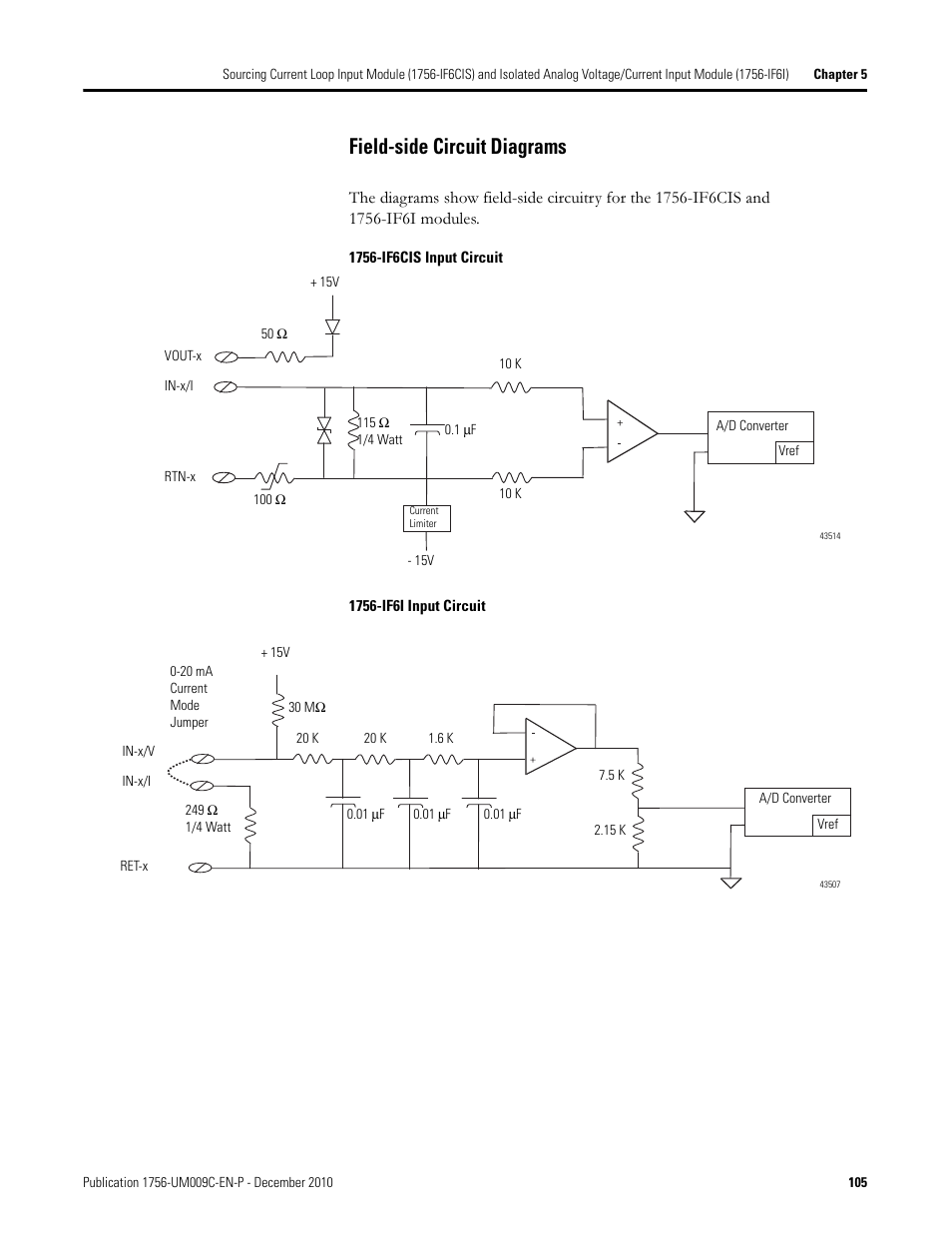

Field-side circuit diagrams – Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 105
