p STC-2002 DEPOSITION CONTROLLER y
SECTION 3.XX e page 96 of 276 ^
L/Q
LOOP
14
QUAL
12
L/Q
SECTION 3.9 Software Controlled RunTime Screen Keys
There are several software controlled keys that are active in the RunTime Mode.
Crystal Quality Display.
L/Q Key

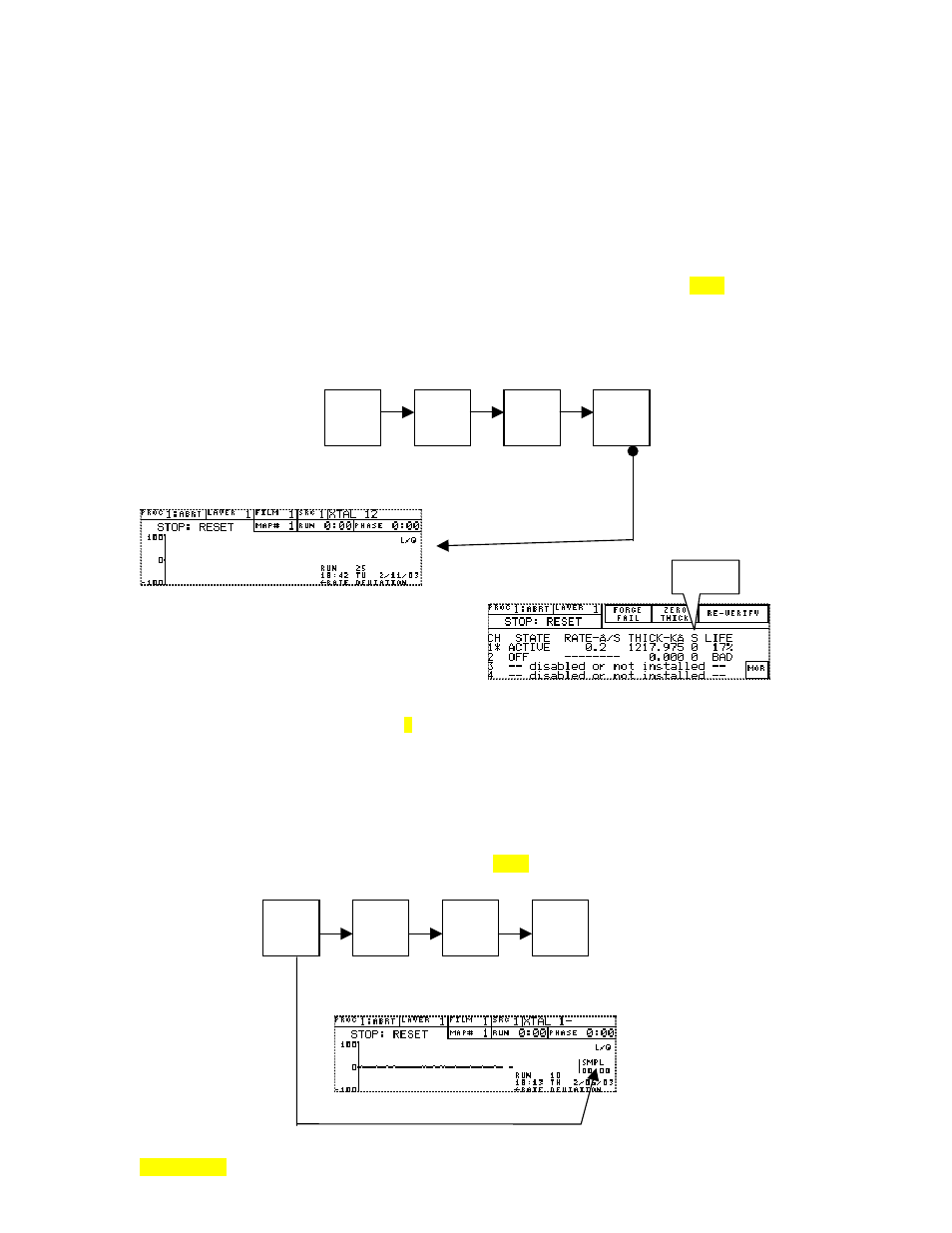

The rightmost single key area on the second row of the Run Time screen labeled "L/Q" is used to sequence
through the crystal quality indicators displayed on the RunTime screen (as depicted below). The
parameters that can be displayed are LOOP and QUAL. These are described in Section x2.17 under STC-
2002 Crystal Switch. Each press of the L/Q key, advances through the possibilities as shown. For those
that are familiar with previous deposition control products, STAB
ility is no longer presented by this
method due to the increased complexity because of the added crystal possibilities. The STAB ility
information can now be found on the 2 nd STATUS screen under the column header "S".
STAB ility now displayed on the 2 nd STATUS screen
Related Film parameters: C on t ro l Loop Qual L imits 0 to 9
XT A L Stability S (Limits) 0 to 9
Sample and Hold.
SMPL Key
Using the single key area below the L/Q key, the STC-2002 will force a Sample to be taken and restart the
toggling sequence of the Sample and Hold Phases when in a Sample and Hold mode. When in the Sample
and Hold mode, this area will not be empty as is normally the case and will contain text and values
appropriate to the activity which is running. See Section x2.13 for a description of Sample and Hold
operation and the associated parameters (MAIN/REVIEW FILM).
SMPL SMPL
2:27
HOLD
1:12
Stability
