Yaskawa Σ-V Series AC Servo Drives Rotational Motor MECHATROLINK-III - Manual (Page 64)

3.7 Noise Control and Measures for Harmonic Suppression
3-27
3
Wirin
g and
Co
nnectio
n
3.7.2 Precautions on Connecting Noise Filter
This section describes the precautions on installing a noise filter.
(1) Noise Filter Brake Power Supply
If using a servomotor with a holding brake, use the following noise filter on the brake power supply input.
Model: FN2070-6/07 (Manufactured by SCHAFFNER Electronic.)

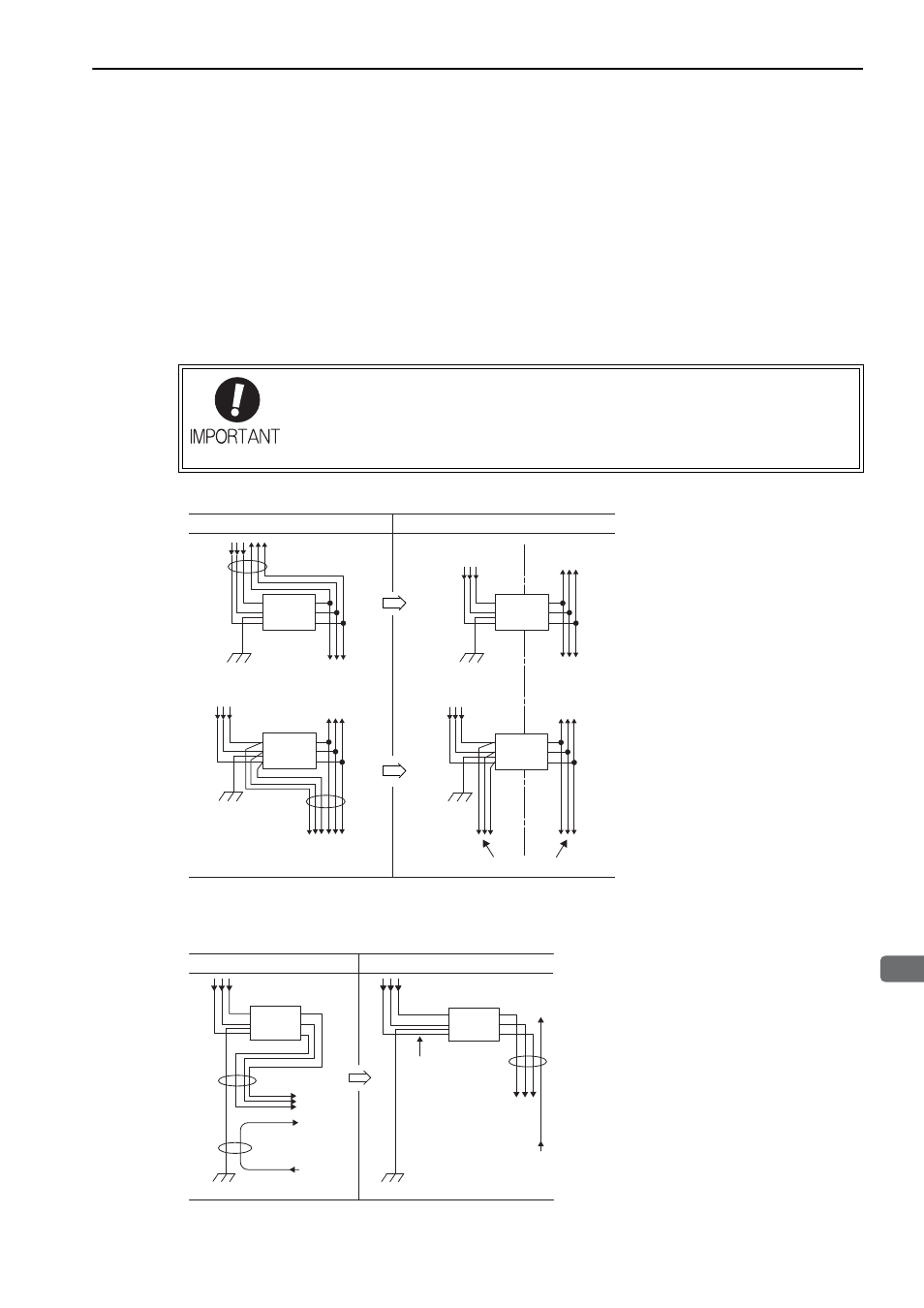

(2) Precautions on Using Noise Filters
Always observe the following installation and wiring instructions.
Do not put the input and output lines in the same duct or bundle them together.
Separate the noise filter ground wire from the output lines.
Do not accommodate the noise filter ground wire, output lines and other signal lines in the same
duct or bundle them together.
Some noise filters have large leakage currents. The grounding measures taken also
affects the extent of the leakage current. If necessary, select an appropriate leakage cur-
rent detector or leakage current breaker taking into account the grounding measures that
are used and leakage current from the noise filter. Contact the manufacturer of the noise
filter for details.
Separate these circuits.
Noise
Filter
Incorrect Correct
Noise
Filter
Noise
Filter Noise
Filter
Ground plate Ground plate
Ground plate Ground plate
Noise
Filter Noise
Filter
The ground wire
can be close to
input lines.
Ground plate Ground plate
Incorrect Correct
