June 25, 2009 K2 Storage System Instruction Manual 369
Setting up the Nearline 10 Gig E switch
3. Press Enter to open the switch’s configuration application.
NOTE: The configuration application for the HP ProCurve switch requires Java.
You can also access the switch’s configuration application from the K2 System
Configuration application.

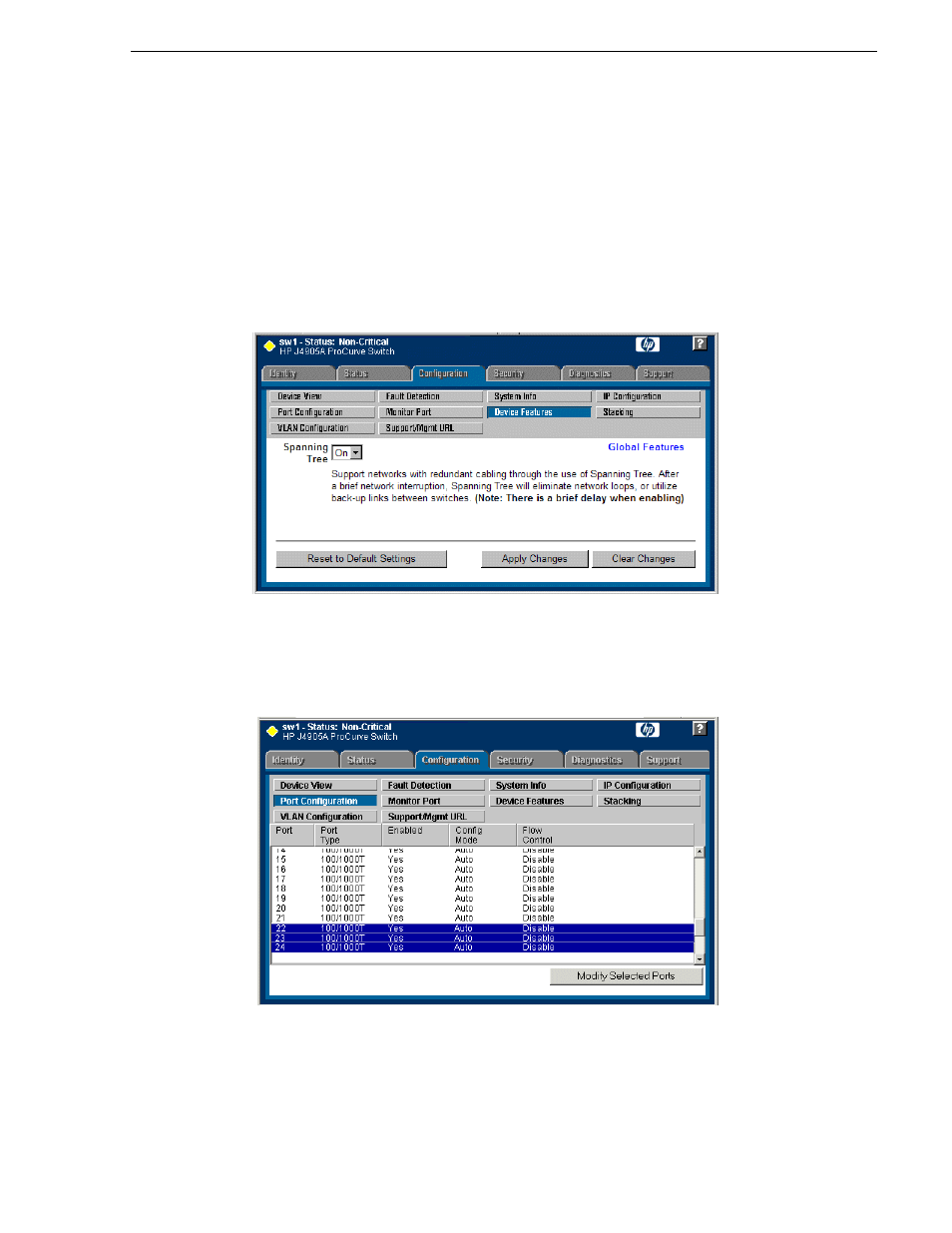

4. In the switch’s configuration application, choose Configuration , then Device
Features .
5. Set Spanning Tree to On and click Apply Changes . If prompted, log in with the
switch’s administrator username and password.
6. Click Port Configuration .
7. If you do not need trunks, such as on a one-switch system, skip to the next step in
this procedure. If you need trunks, such as on a two-switch system with ISLs, do
the following:
a. Select (Ctrl + Click) the trunked ports. Typically the trunked ports are at the
