Stratix 5100 Device Manager Parameter Definitions
Chapter 4
Detailed Status
This page shows status details for the interface.

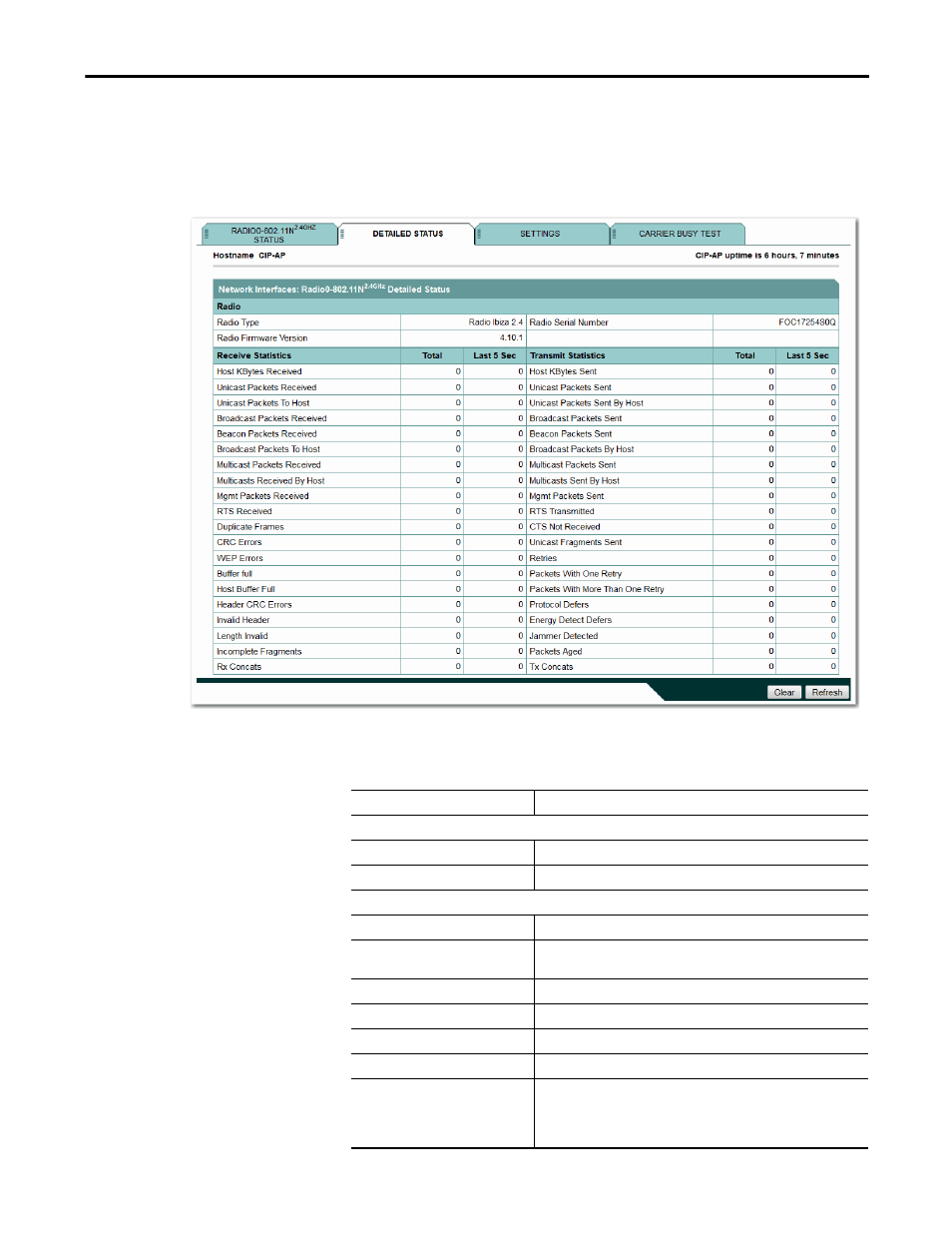

Figure 38 - Interface Detailed Status
Table 19 - Network Interfaces: Radio0-802.11N2.4 GHz and 5 GHz Detailed Status
Parameter
Description
Radio
Radio Type
List the interface and serial number.
Radio Firmware Version
Current firmware version installed on the WAP.
Receive/Transmit Statistics
Host Kilobytes Received/Sent
Number of Kilobytes Sent and Received by the server.
Unicast Packets Received/Sent
Number of Unicast Packets Received/Sent in point-to-point
communication.
Unicast Packets Sent To Host/By Host
Number of Unicast Packets Received/Sent by the server.
Broadcast Packets Received/Sent
Number of Broadcast Packets Received/Sent by the access point.
Beacon Packets Received/Sent
Number of Beacon Packets Received/Sent by the access point.
Broadcast Packets To Host/By Host
Number of Number of Broadcast Packets Received/Sent by the server.
Multicast Packets Received/Sent
• The number of packets received that were sent as a transmission to a set
of nodes.
• The number of packets transmitted that were sent as a transmission to a
set of nodes.
