Configuring Filters Chapter 17

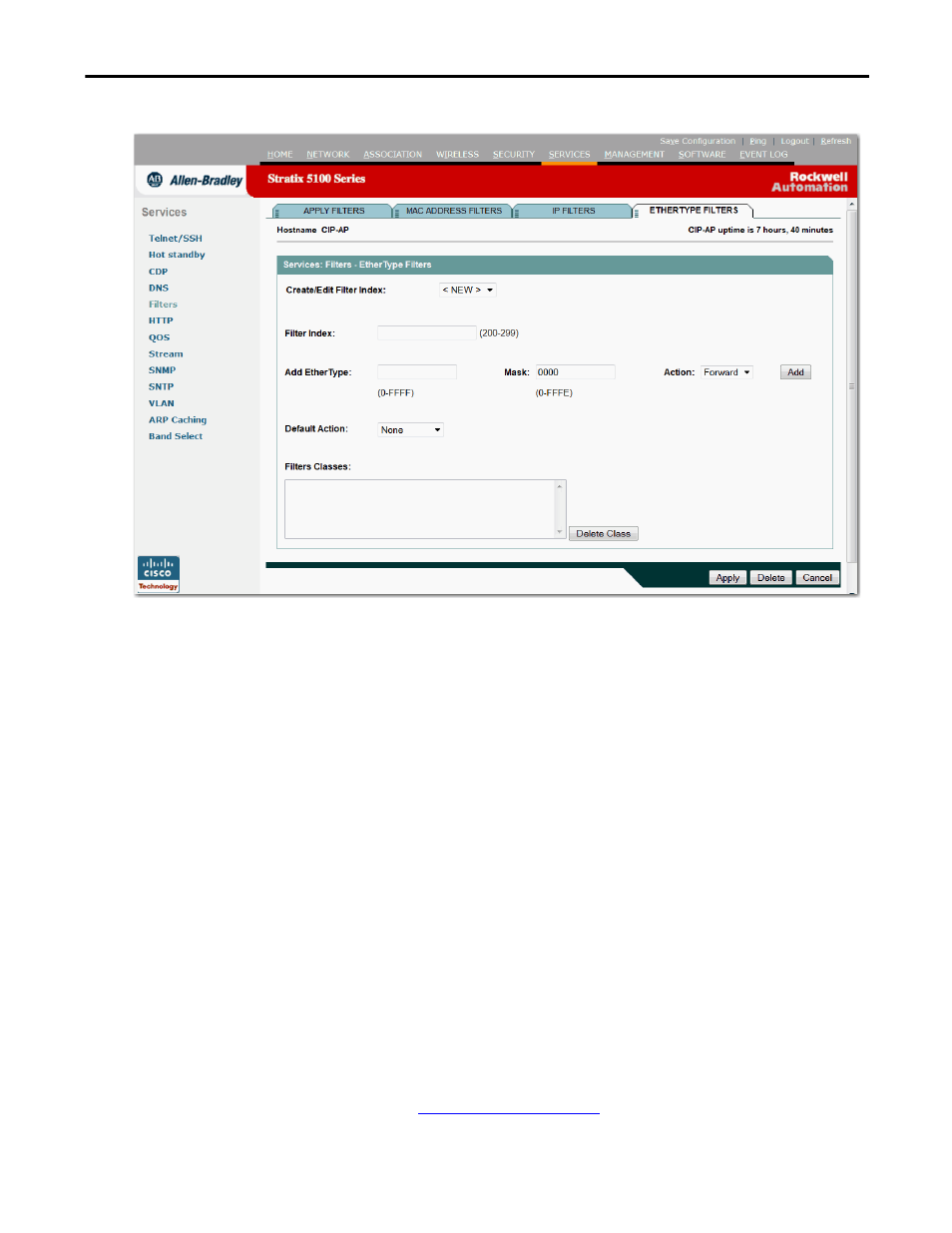

Figure 120 - Ethertype Filters Page
Follow these steps to go to the Ethertype Filters page:
1. From the main menu, click Services.
2. In the Services page list, click Filters.
3. On the Apply Filters page, click the Ethertype Filters tab.
Creating an Ethertype Filter
Follow these steps to create an Ethertype filter:
1. Follow the link path to the Ethertype Filters page.
2. If you are creating a new filter, make sure (the default) is selected
in the Create/Edit Filter Index menu.
To edit an existing filter, select the filter number from the Create/Edit
Filter Index menu.
3. In the Filter Index field, name the filter with a number from 200…299.
The number you assign creates an access control list (ACL) for the filter.
4. Enter an Ethertype number in the Add Ethertype field.
See Protocol Filters on page 573 for a list of protocols and their numeric
designators.
