Chapter 4 Stratix 5100 Device Manager Parameter Definitions
IP Filters Page
Use this page to create or edit protocol filters. IP filters prevent or allow the use of
IP address(es), IP protocols, and TCP/UDP ports through the access point's
Ethernet and radio ports. You can create a filter that passes traffic to all addresses
except those you specify, or you can create a filter that blocks traffic to all
addresses except those you specify. You can create filters that contain elements of
one, two, or all three IP filtering methods. You can apply the filters you create to
either or both the Ethernet and radio ports and to either or both incoming and
outgoing packets.

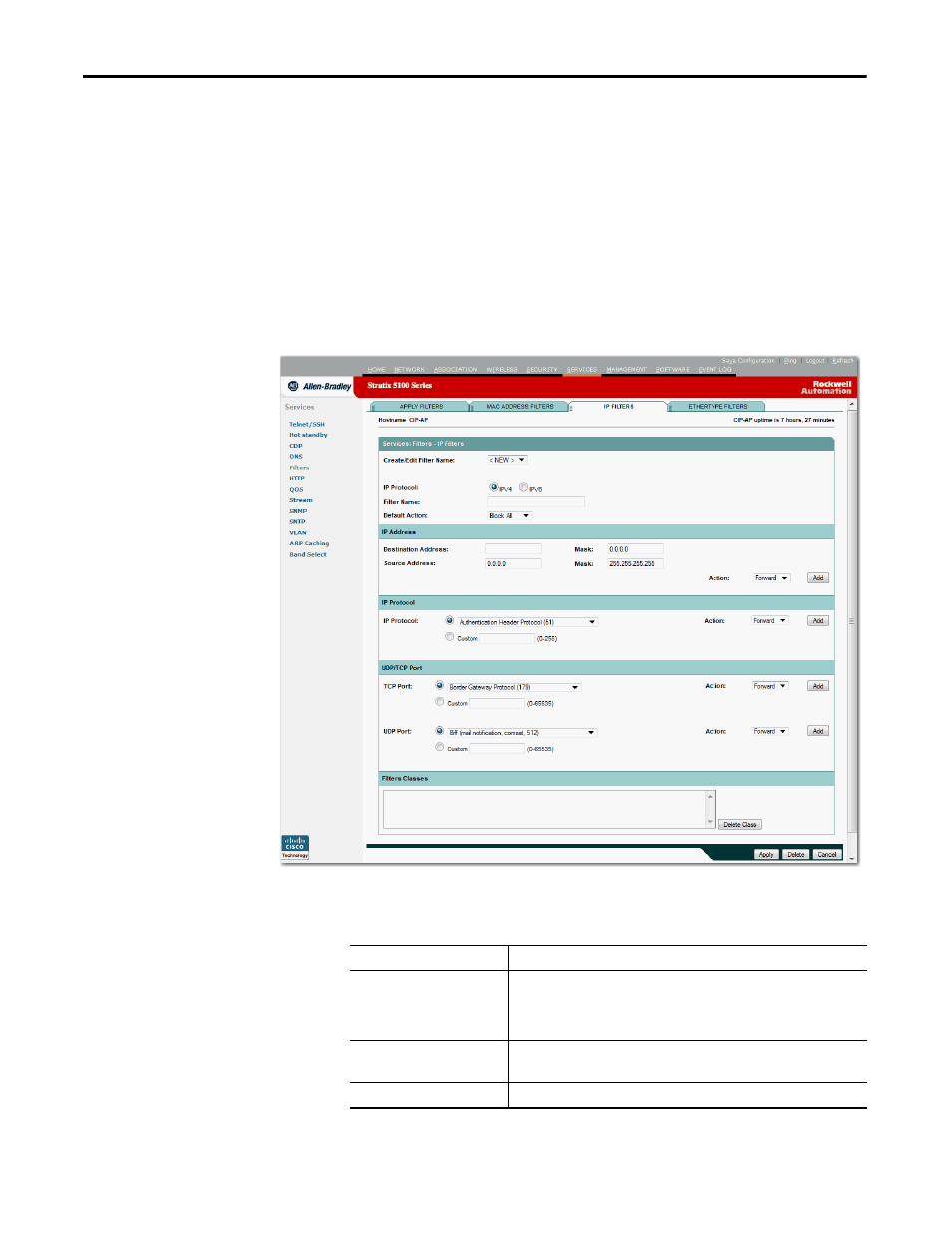

Figure 66 - IP Filters Page
Table 50 - IP Filters Page Parameter Descriptions
Parameter Description
Create/Edit Filter Name If you are creating a new filter, make sure to select (the default) from the
Create/Edit Filter drop-down menu.
To edit an existing filter, select the filter name from the Create/Edit Filter drop-
down menu.
IP Protocol IPV4
IPV6
Filter Name Enter a descriptive name for the new filter.
