28
Rockwell Automation Publication 1783-UM006A-EN-P - May 2014
Chapter 1
Getting Started with the Stratix 5100 WAP
This graphic shows an access point configured as a workgroup bridge. See
Understanding Workgroup Bridge Mode on page 535
and
Workgroup Bridge Mode on page 540
for information on configuring your access
point as a workgroup bridge.

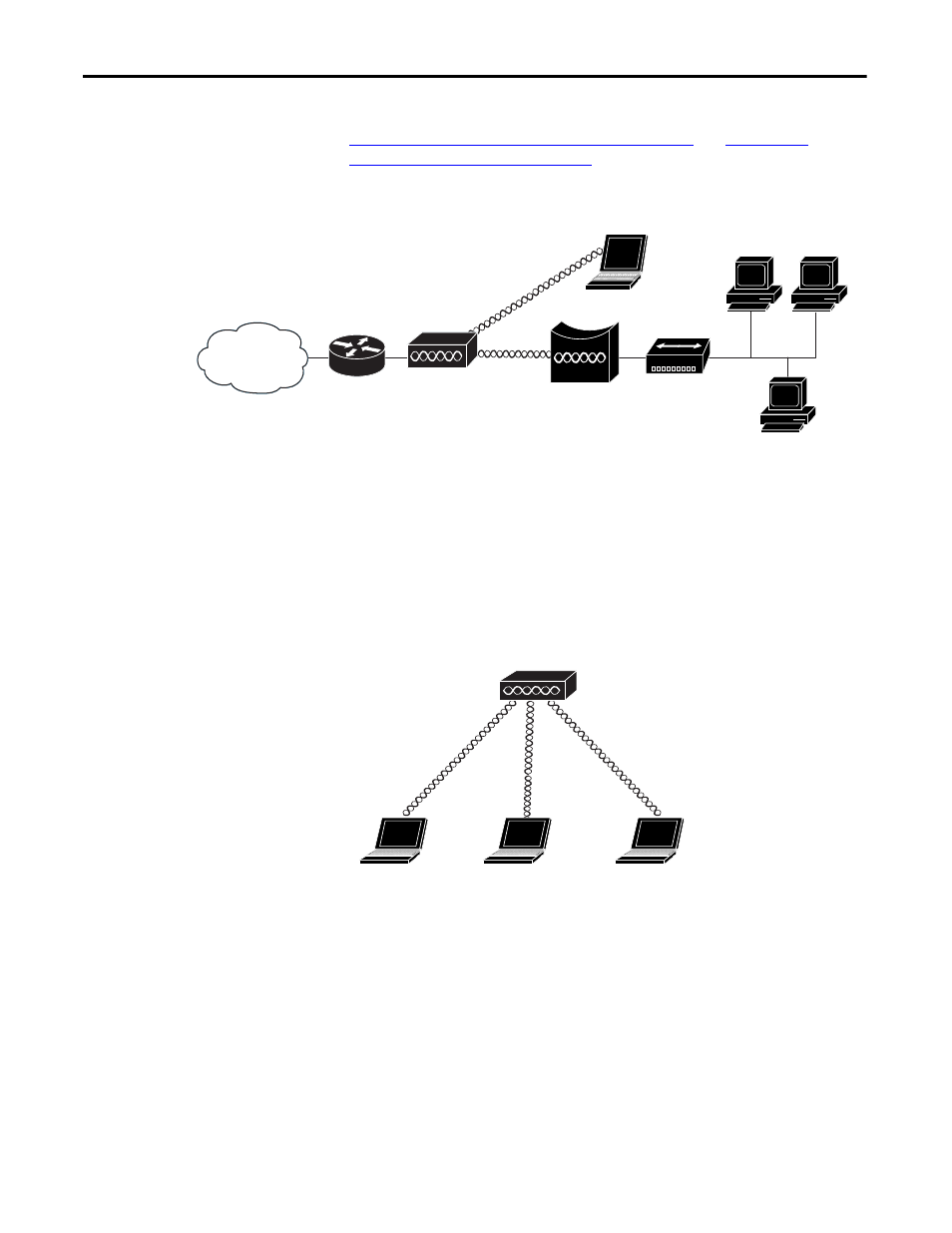

Figure 5 - Access Point as a Workgroup Bridge
Central Unit in a Wireless Network
In a wireless network, an access point acts as a stand-alone root unit. The access
point is not attached to a wired LAN; it functions as a hub linking all stations
together. The access point serves as the focal point for communication, increasing
the communication range of wireless users.
Figure 6 - Access Point as Central Unit in All-Wireless Network
Unpacking
To unpack the access point, follow these steps:
1. Unpack and remove the access point and the accessory kit from the
shipping box.
2. Return any packing material to the shipping container and save it for
future use.
3. Verify that you have received the items listed below.
• Stratix 5100 Wireless Access Point/Workgroup Bridge
• Mounting bracket, screws included
Access point
Workgroup bridge
135448
Access point
135443
