F
Eos Fader Wings 323
Appendix F
Eos Fader Wings
Overview
Eos Fader Wings can be used in conjunction with your Eos console to create up to 240 additional
submasters. The wings are available in 10 x 2 or 20 x 2 configurations.
Connecting Wings to Eos
Up to three (3) Universal Fader Wings may be connected together and then connected to Eos
consoles using a USB cable only. Fader wings cannot be physically attached to an Eos console.
The best way to connect wings is to attach them in order from left to right.

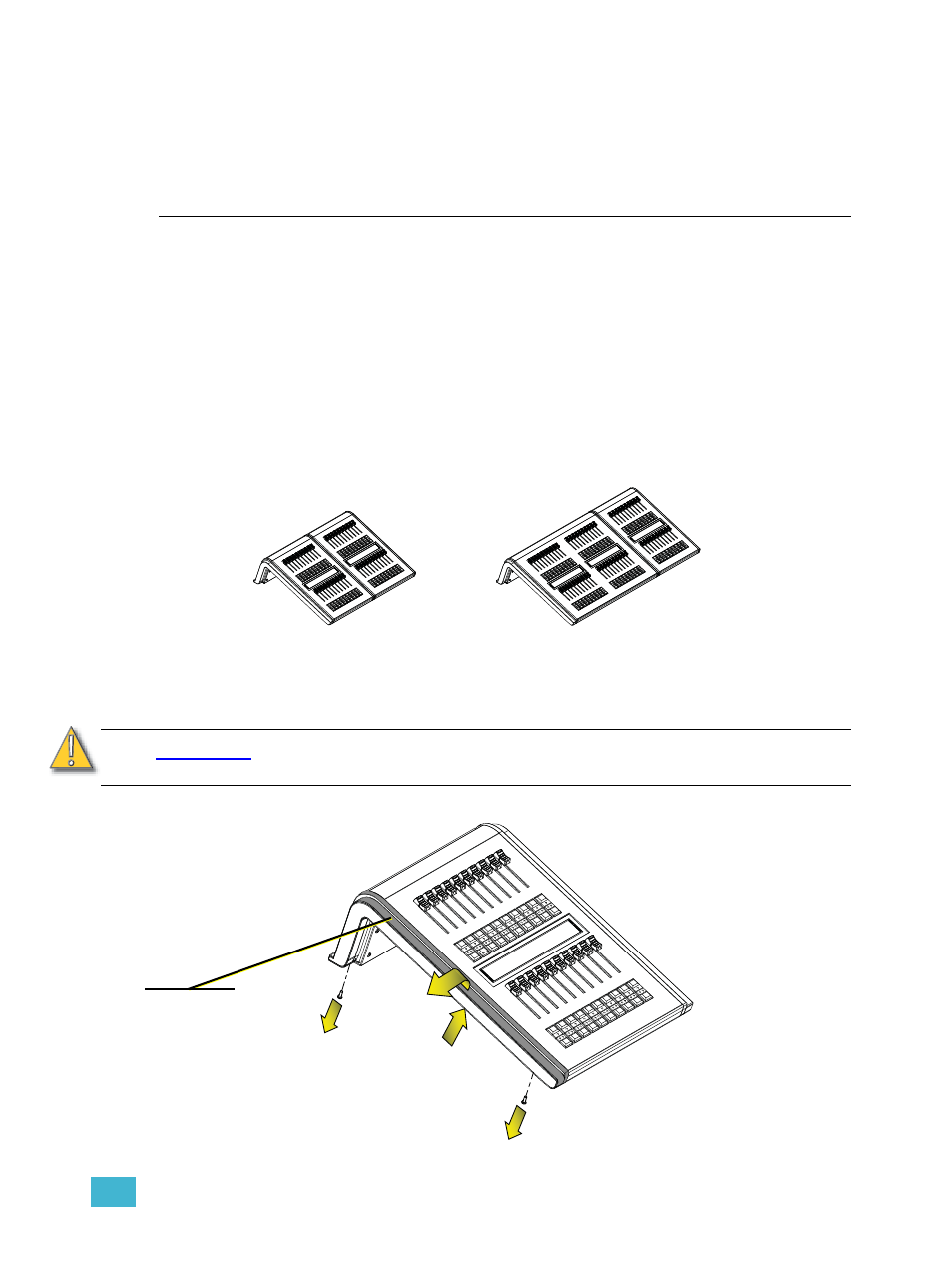

Connect Universal Fader Wings To Each Other
OR
Step 1: Using a #1 Phillips head screwdriver, on the underside of the wing(s) remove the two
screws securing the bumpers that will be removed from the appropriate side or sides
of the wings. The bumpers will be removed in a later step.
a:
Carefully turn the wing over and place it faders-down on a clear, flat work
surface.
b: Remove and save the two screws securing the bumper to the side of the wing.
C A U T I O N : Do not set the console on the connector side (rear panel). Instead, place it face
down on the faders.
1
1 2
3
bumpers on
either side
