5. Click on OK to complete the operation. The Workspace window of the EIP View
page will appear as follows:

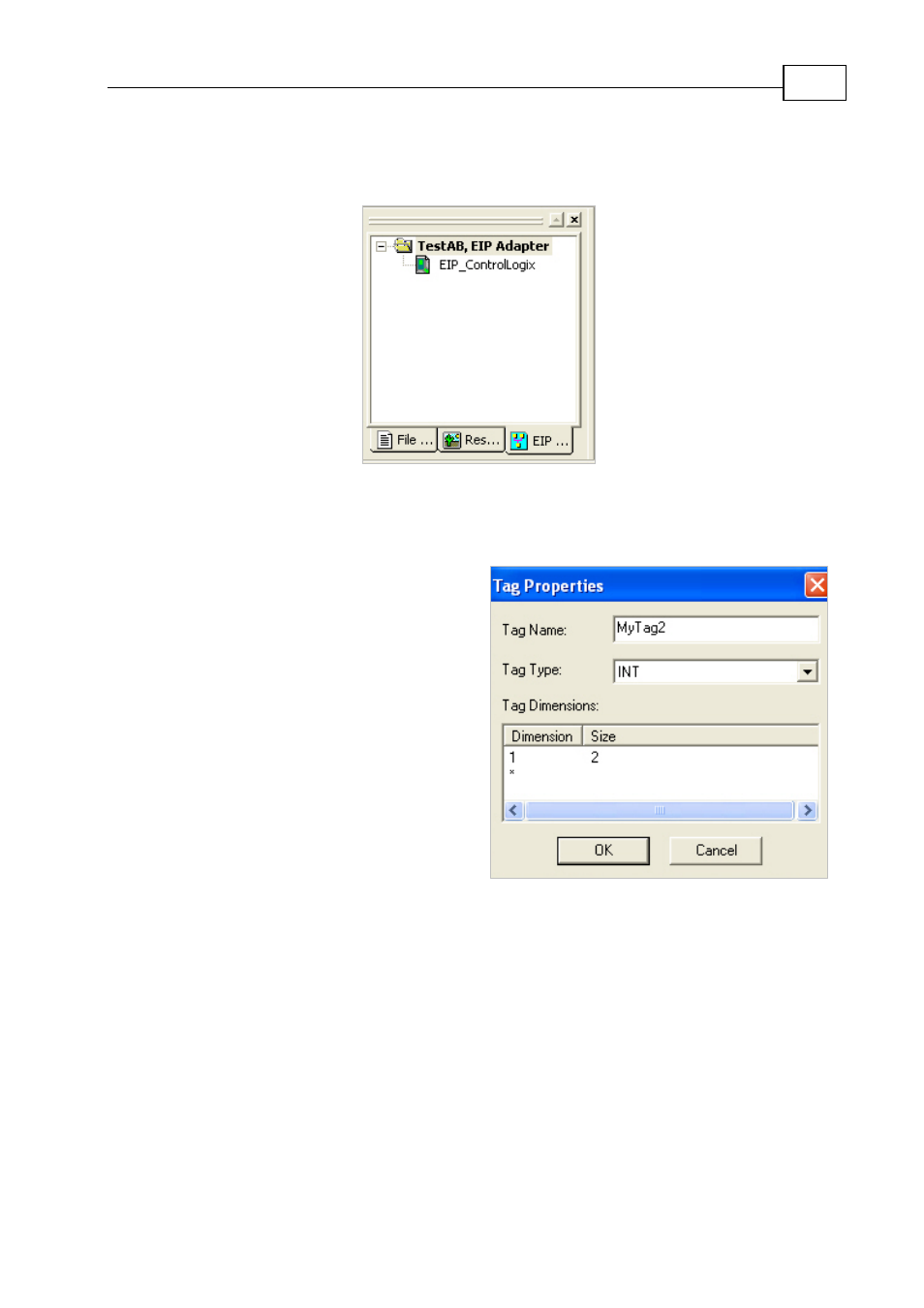

Figure 11-12: EIP Adapter
6. To create device’s tags, use the context menu Add Tag. The following dialog box
will open:
7. In the Tag Name field, enter the tag
name used for Read/Write.
8. In the Tag Type field, select the
appropriate type (BOOL, SINT, INT,
DINT, REAL). Use the Tag
Dimension field to define the tag as
an array.
NOTE: The Tag Name, Type and
Dimensions MUST be the same as
defined on the Rockwell side.
Figure 11-13: Tag Properties
11.5.1.2 Using syntax
11.5.1.2.1 Command interpreter
Get Tag syntax is
[Device Name] . [Tag Name]
[Device Name] . [Tag Name][index]
where index need if tag is array.
