9.2 CANopen Configurator GUI
After installing the CANopen Configurator, a new icon will appear on your desktop.
Click on the icon to open the CANopen Configurator. The CANopen Configurator User
Interface is displayed:

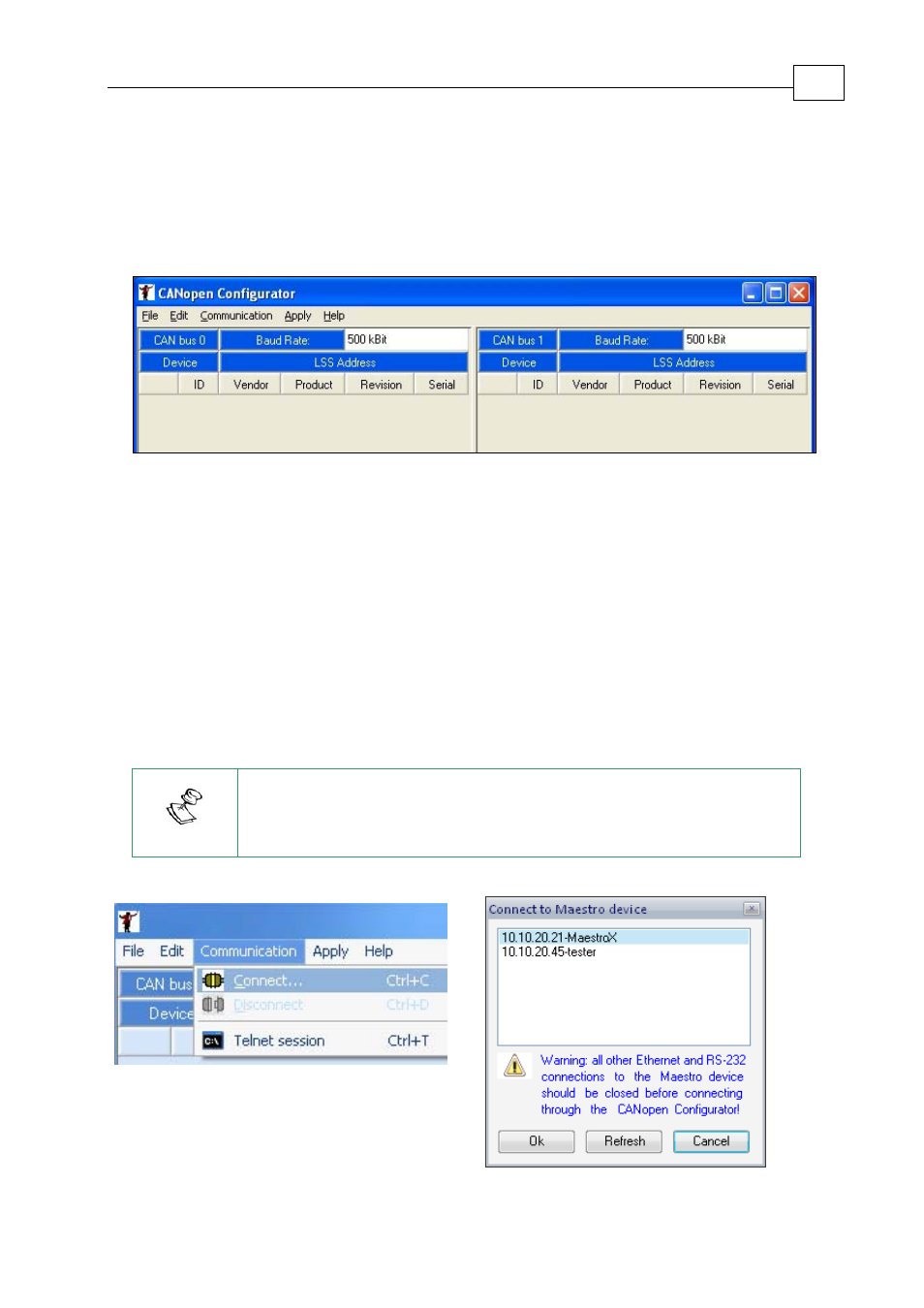

Figure 9-3: The CANopen Configurator User Interface
9.3 Connecting to a Maestro
If a Maestro is connected to the same network as your PC, the CANopen Configurator
is able to find it. To configure devices on the CAN networks which are connected to a
specific Maestro, you must first connect to that Maestro device via the Connect tool in
the CANopen Configurator Communication menu (see Figure
9-4).
After the Connect tool is selected, the CANopen Configurator searches the LAN for
Maestros and displays the active Maestros in a window (see Figure
9-5). The IP
address of each device is listed alongside its name. Select the Maestro device you want
to connect to and click OK.
Note: To prevent configuration conflicts, close all other Ethernet
and RS-232 connections to the Maestro device before
connecting via the CANopen Configurator.
Figure 9-4: The Connect Tool Figure 9-5: Maestro Selection
