The CANopen Configurator
MAN-MASSW (Ver. Q)
9-8
Note:
The Online Verification tool can be used to find a node that
does not have a current device ID configured.
Example: In the case where a node is changed and the configuration
file is loaded (File > Node Set Import), the Online
Verification tool recognizes the node and marks it as
invalid because it has not yet been defined in the current
configuration. To fix the problem, the correct value for the
LSS address is manually set and the Apply Configuration
option is selected. The new configuration must be
downloaded and stored (File > Node Set Export).
9.6
Configuration Status Report
The current CANopen network status can be stored in the form of a report file in XML
or HTML format by accessing the Build Report feature on the File menu
(File > Build Report ). An example of a build report is shown below.

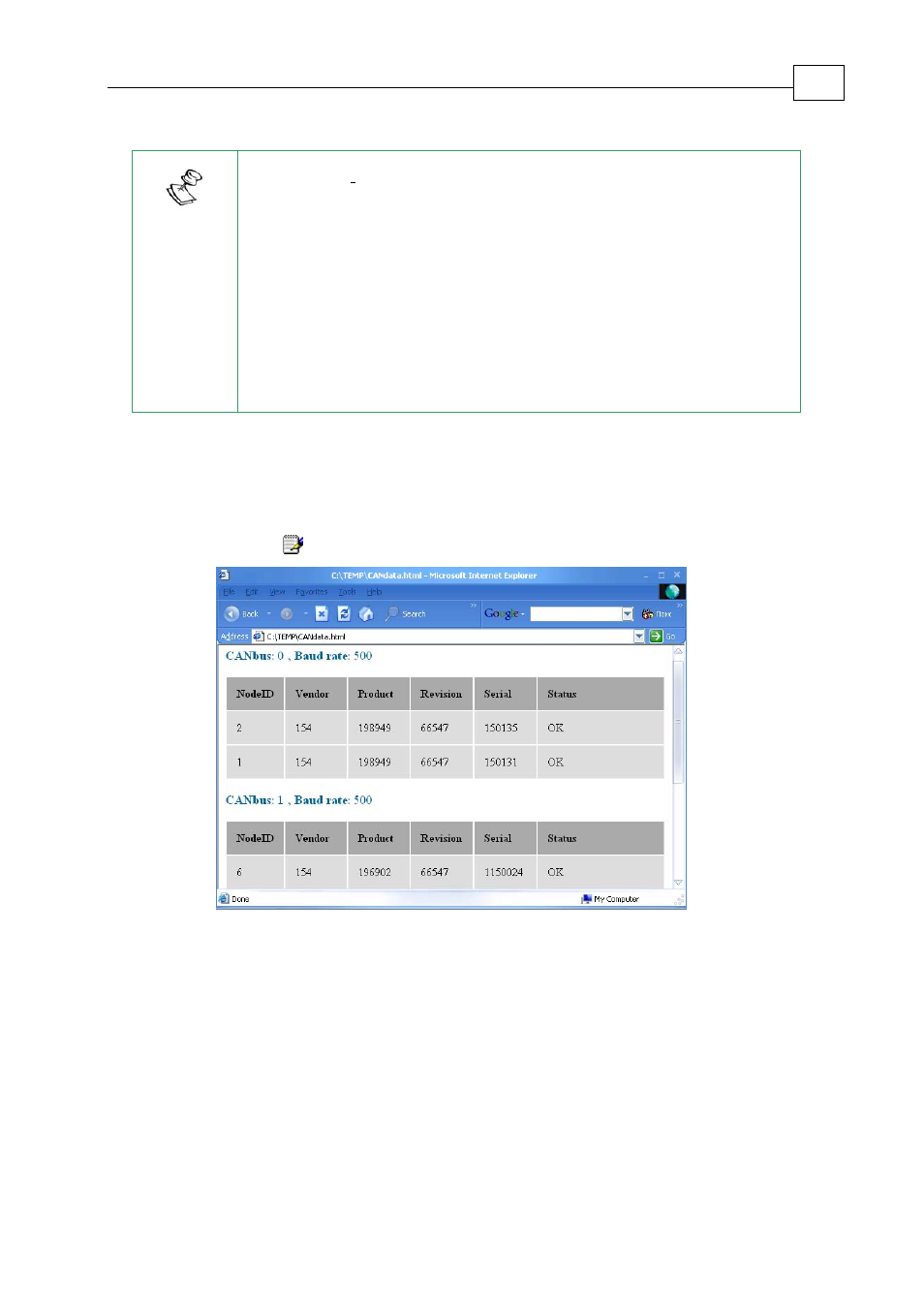

Figure
9-14: CANopen Network Build Report
