812 NT8D41AA Serial Data Interface Paddle Board
Figure 266

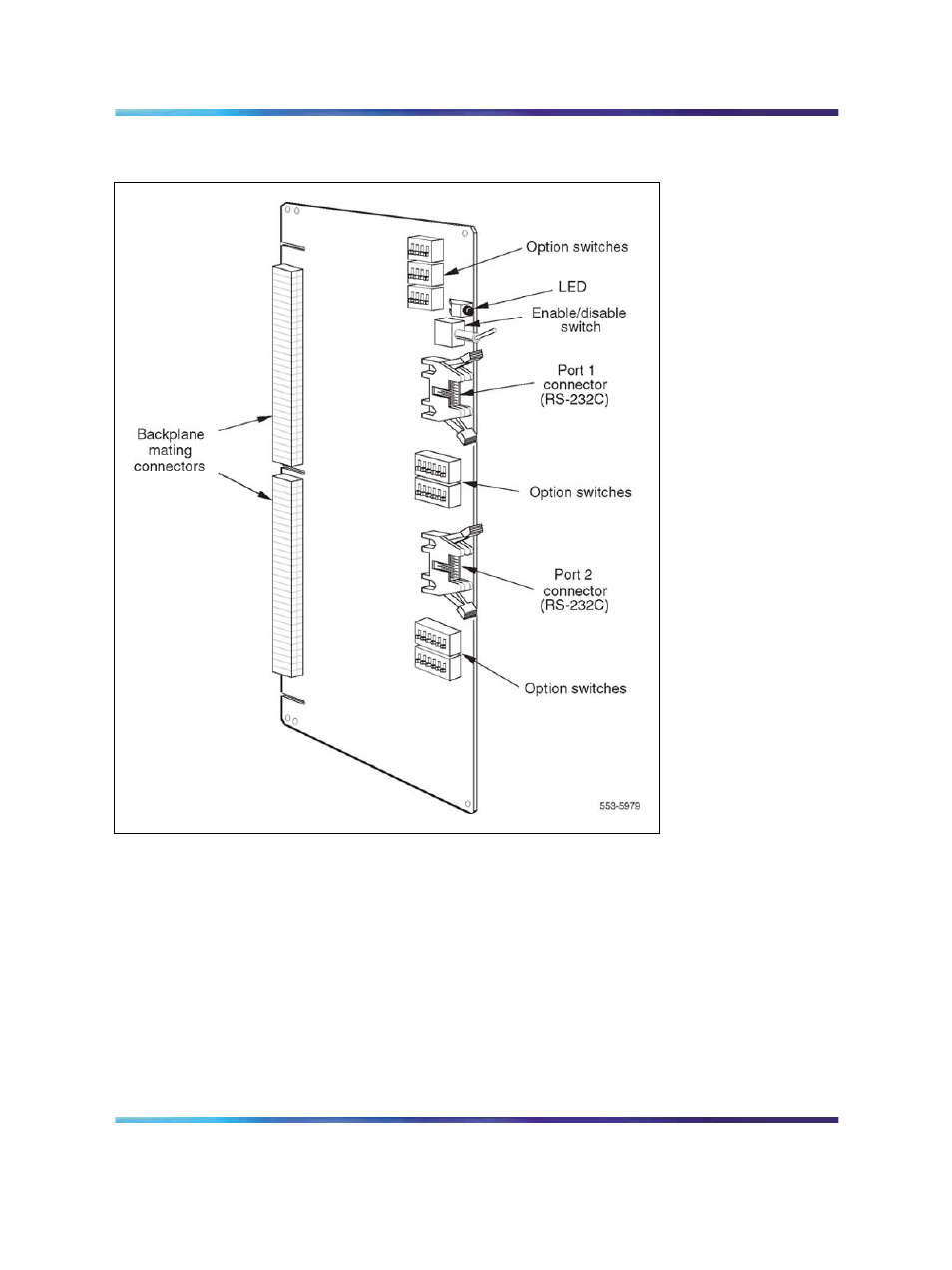

NT8D41AA SDI paddle board
Functional description
The NT8D41AA SDI paddle board has two asynchronous serial ports.
These serial ports are connected to the I/O panel in the back of the shelf
using special adapter cables. The serial ports can be used to connect the
Meridian 1 system to a terminal, a printer, a modem, or to an other system
processor.
The SDI paddle board contains two Universal Asynchronous
Receiver/Transmitters (UARTs) and the logic necessary to connect the
UARTs to the system processor bus. See
Figure 267 "NT8D41AA SDI
