172 NT5D11 and NT5D14 Lineside T1 Interface cards
Faceplate
The faceplate of the card is twice as wide as the other standard analog and
digital line cards, and occupies two card slots. It comes equipped with four
LED indicators. See
Figure 29 "Lineside T1 card - faceplate" (page 175) .

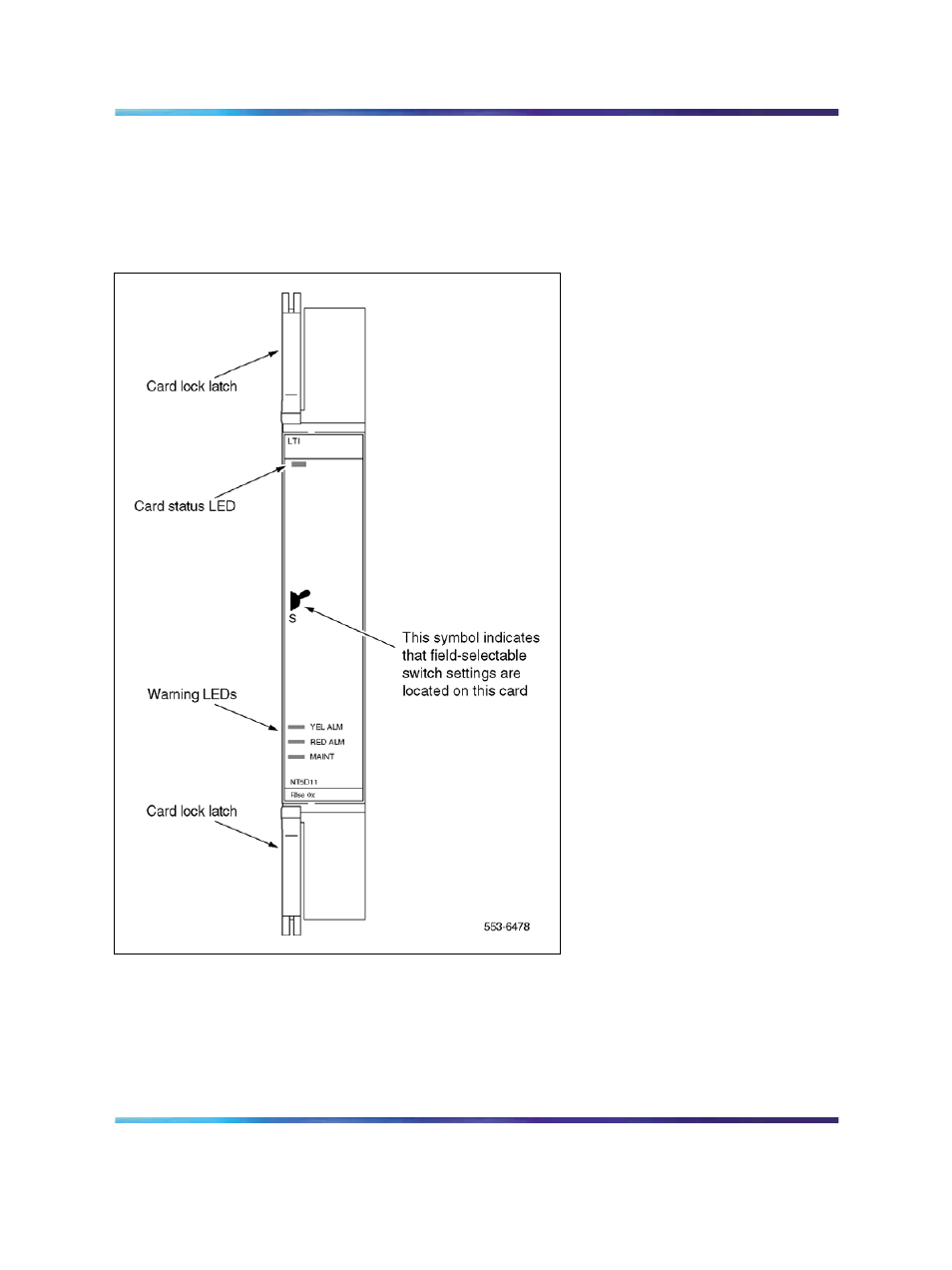

Figure 28
Lineside T1 card faceplate
In general, the LEDs operate as shown in Table 78 "NT5D14AA Lineside T1
faceplate LEDs" (page 173) .
