NT8D14 Universal Trunk card

Figure 200

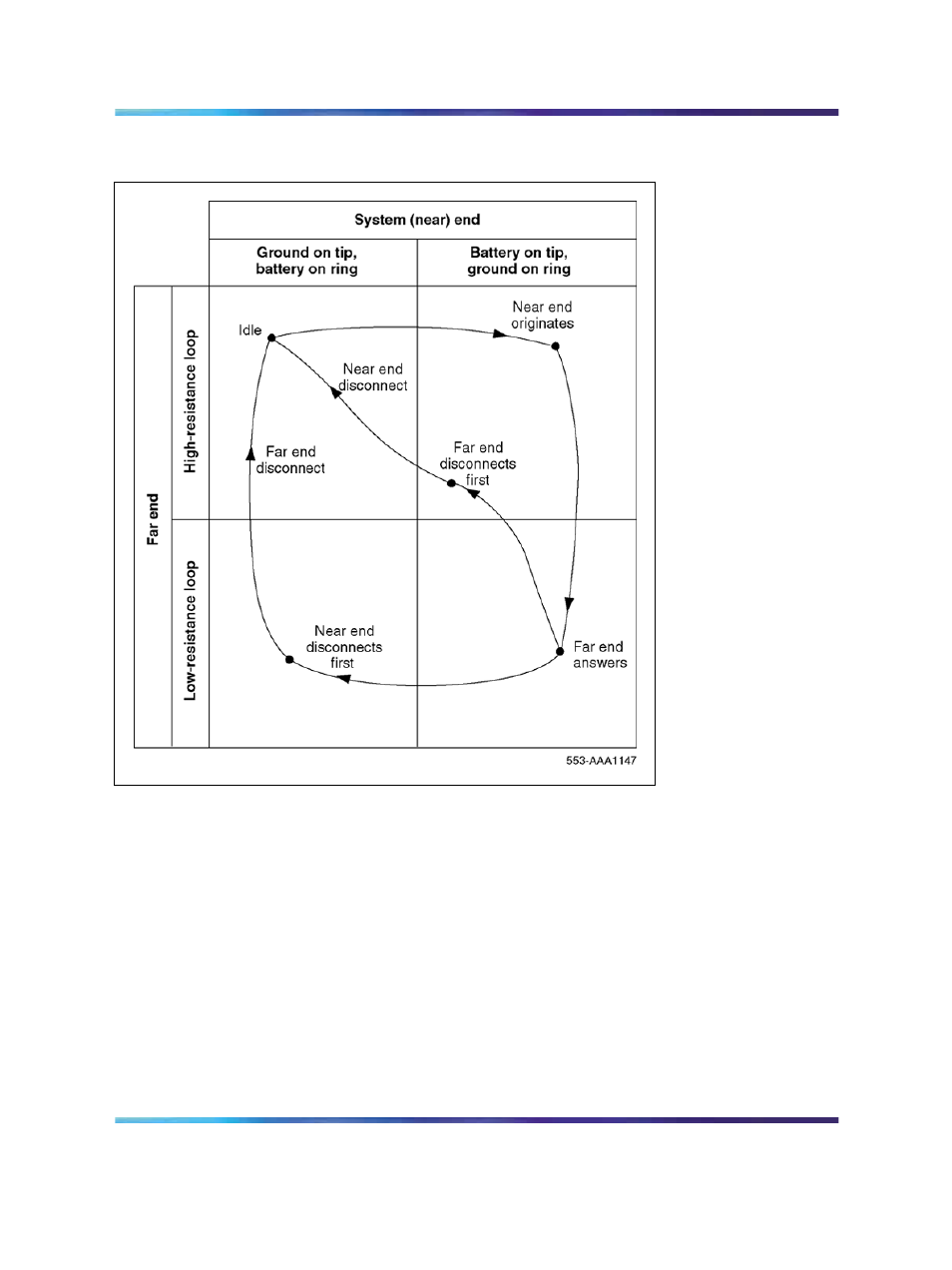

Two-way, loop OAID, TIE trunk call states - outgoing call to far-end PBX

When seized as a dial-selected outgoing trunk, the near-end places the
battery on the tip and ground on the ring. This alerts the far-end of the
seizure. The far-end responds with a low resistance across the tip and ring
leads. See

Figure 208 "Two-way, loop OAID, tie trunk call states - outgoing

call to far-end PBX" (page 660)

and

Figure 209 "Two-way, loop OAID, tie

trunk call connection sequence - outgoing call to far-end PBX" (page 661)

.
