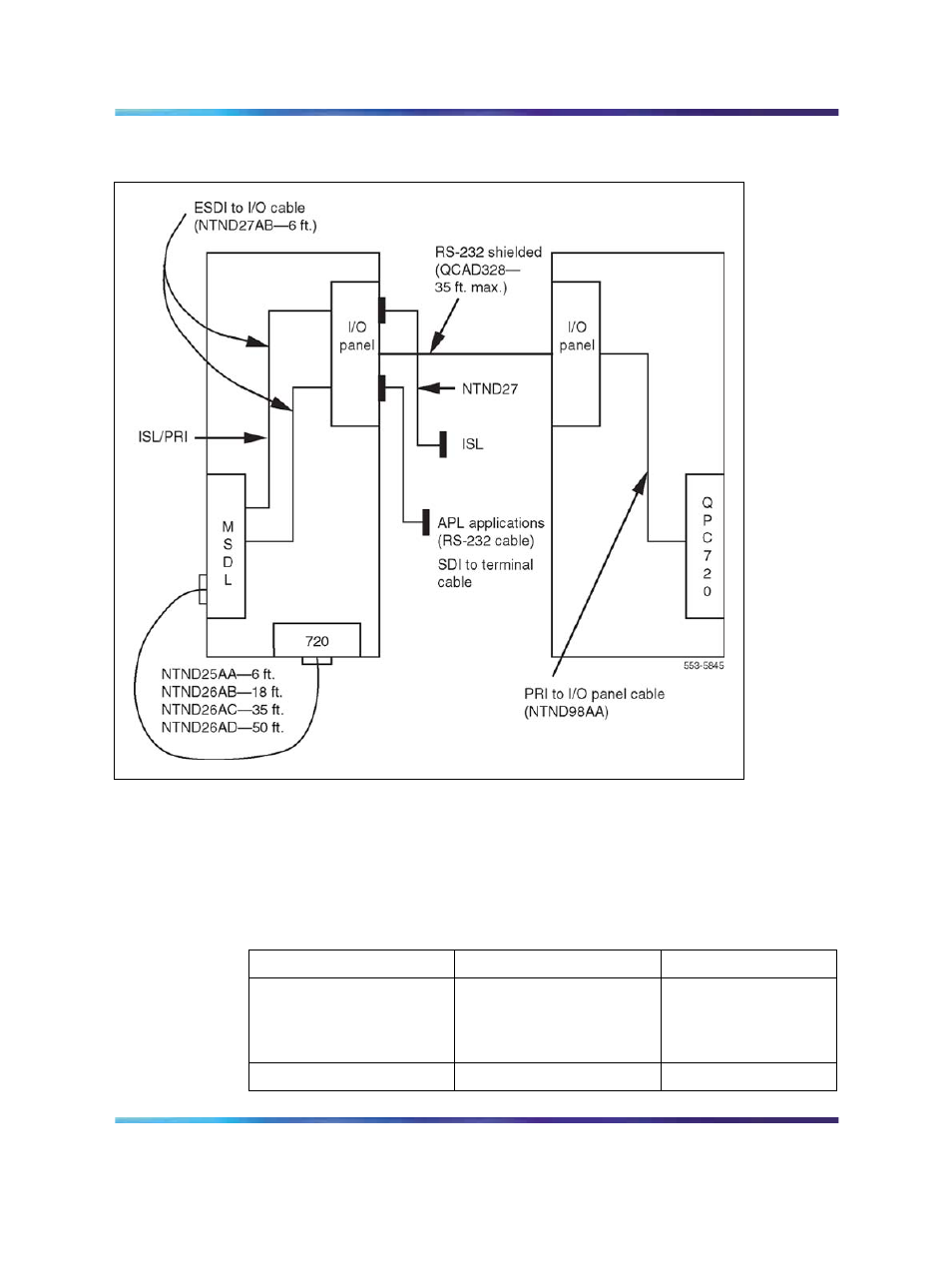

Figure 105
MSDL cabling
Note: The choices of cable to use with an MSDL card depend on what
type of modem is connected. For example, the NTND27 cable is used
when the modem has a DB25 connection. If the modem is v.35, a
customized or external vendor cable is required.
Table 177
Cable types
Function
Cable type
Cable length
DCH
NTND26AA
NTND26AB
NTND26AC
NTND26AD
6 feet
18 feet
35 feet
50 feet
AML, ISL, SDI
NTND27AB
6 feet
Nortel Communication Server 1000
Circuit Card Reference
NN43001-311
01.04
Standard
Release 5.0
23 May 2008
Copyright © 2003-2008, Nortel Networks
.
