732

NT8D15 E and M Trunk card

•

paging trunk operation (see

) with support access by low-resistance path at the PG/A1 leads

Note: Paging end-to-end signaling is not supported.

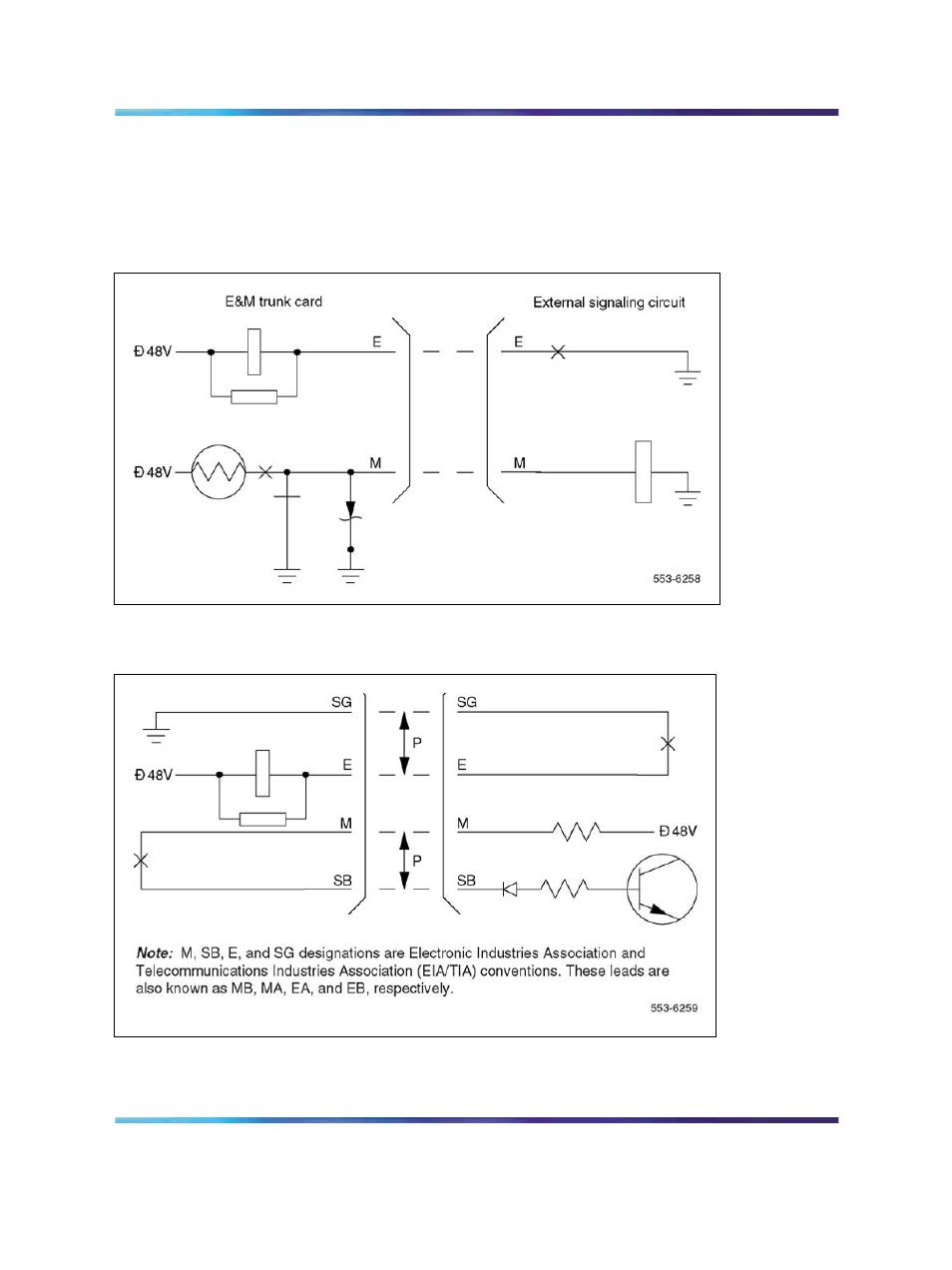

Figure 228
E and M Type I signaling

Figure 229
E and M Type II signaling

Nortel Communication Server 1000

Circuit Card Reference

NN43001-311

01.04

Standard

Release 5.0

23 May 2008
