Physical description 327
NT5D97 faceplate

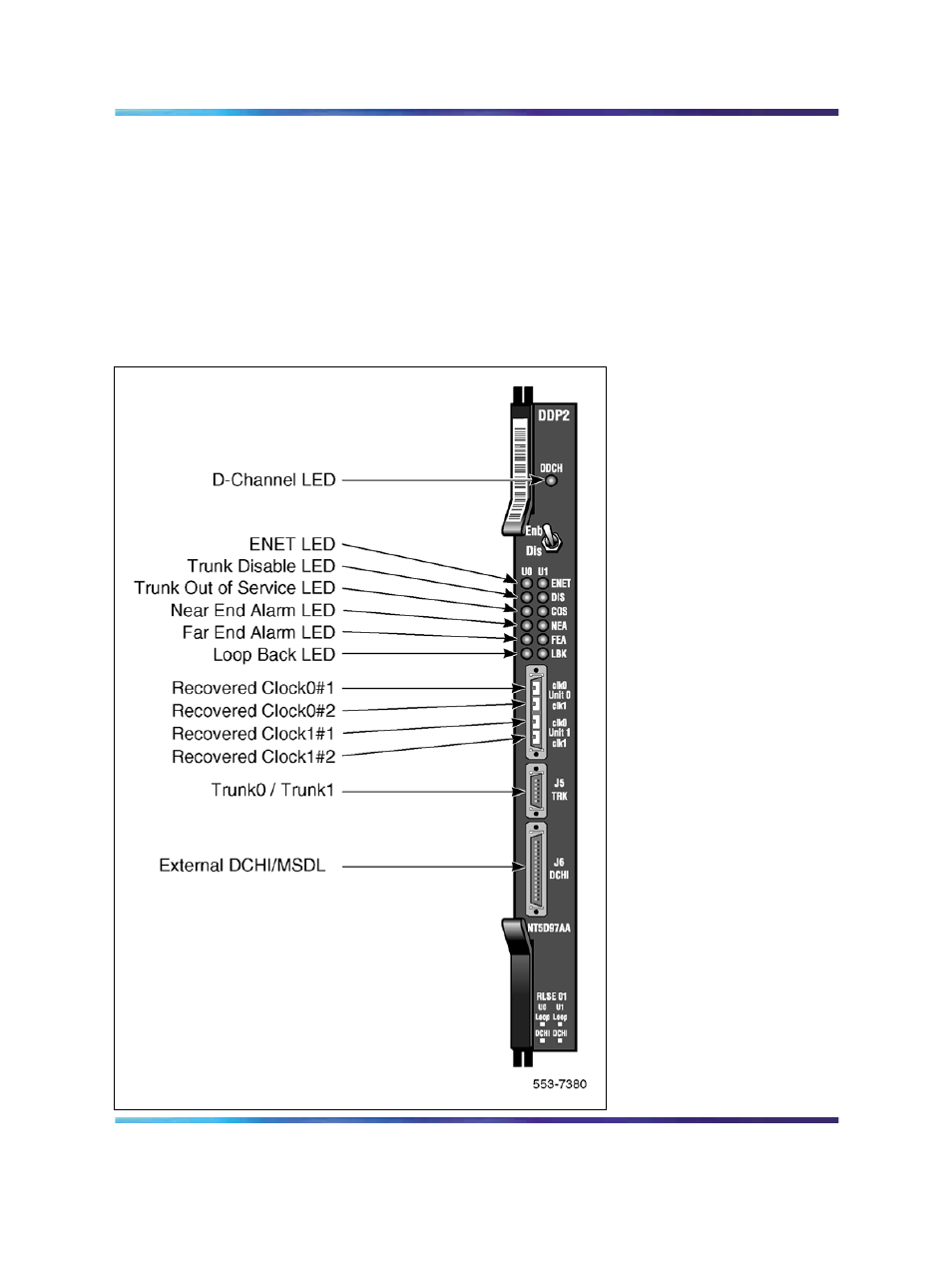

Figure 84 "NT5D97 faceplate" (page 327) illustrates the faceplate layout
for the NT5D97 DDP card. The faceplate contains an enable/disable
switch; a DDCH status LED; 6 x 2 trunk port status LEDs; and six external
connectors.
Table 135 "External connectors and LEDs" (page 328) shows
the name of each connector, its designation with respect to the faceplate
and the name and description of the card it is connected to. Also shown
are the names of the LEDs.
