670 NT8D14 Universal Trunk card

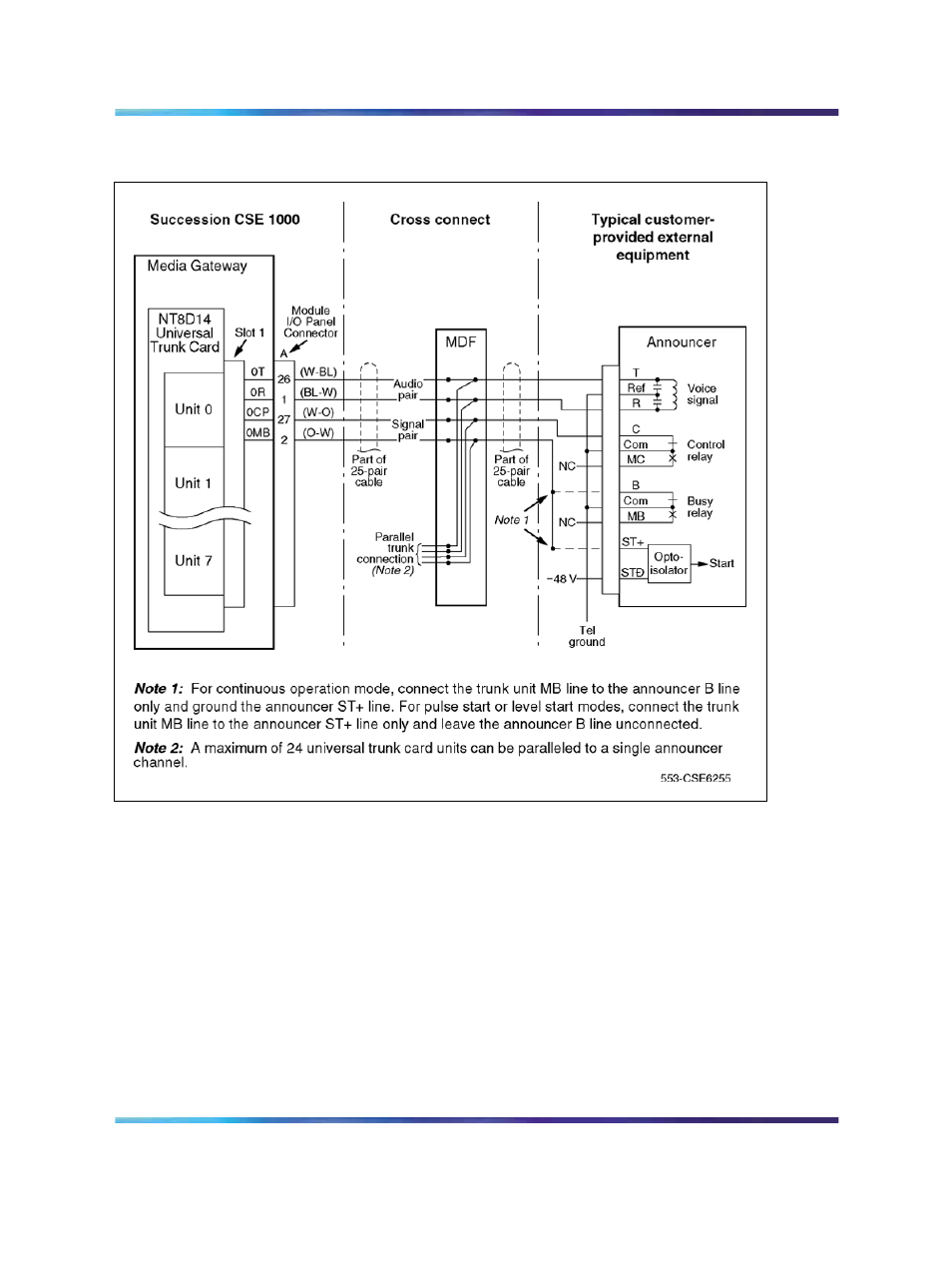

Figure 214
RAN control signals (Control GRD = IDLE)
Note 1: For continuous operation mode, connect the trunk unit MB line
to the announcer B line only, and ground the announcer ST+ line. For
pulse start or level start modes, connect the trunk unit MB line to the
announcer ST+ line only, and leave the announcer B line unconnected.
Note 2: A maximum of 24 universal trunk card units can be paralleled
to a single announcer channel.
