Operation 619

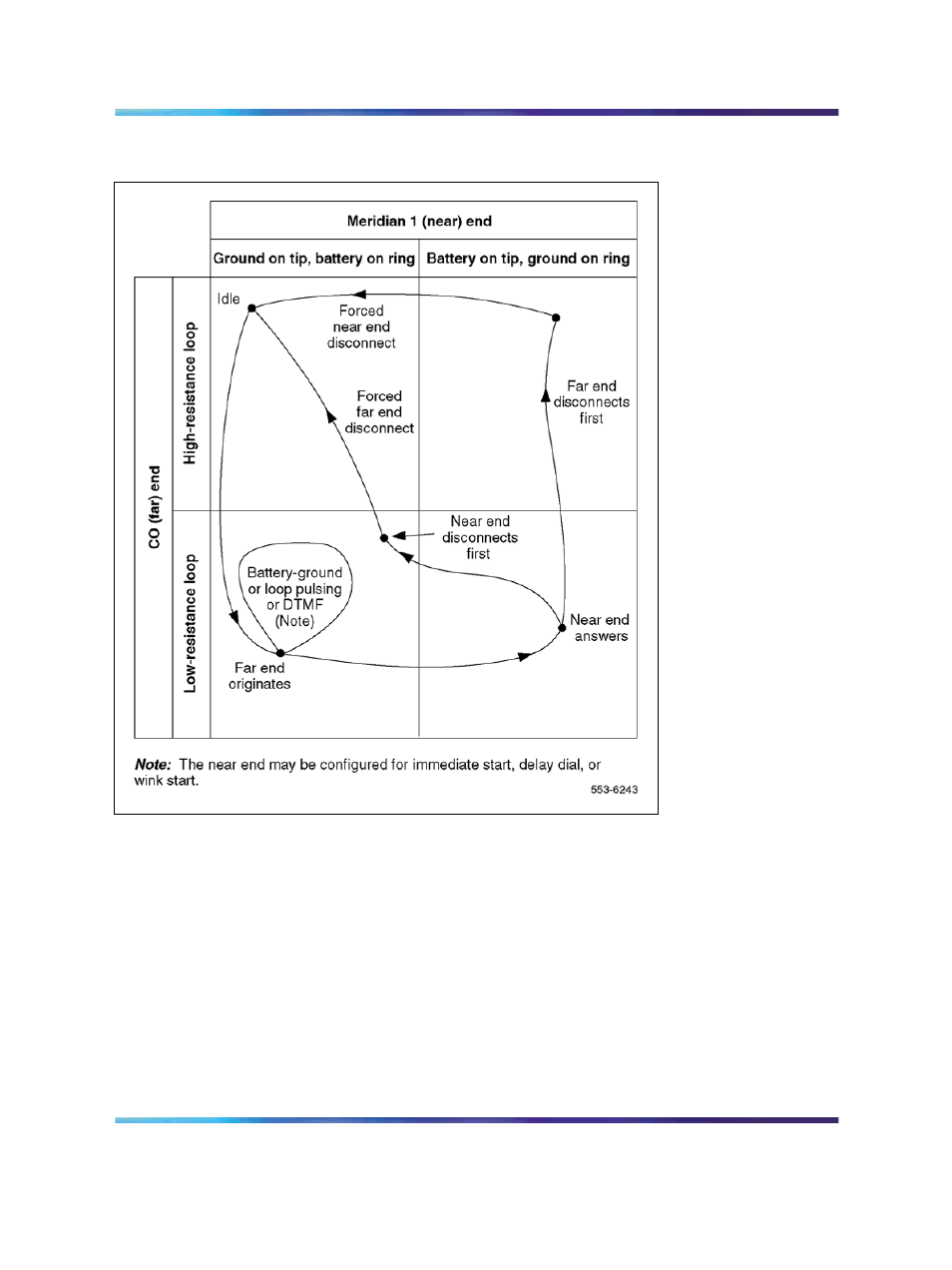

Figure 173
DID trunk, loop DR call states - incoming call from CO
An incoming call from the CO places a low resistance loop across the tip and
ring leads. Dial pulses or DTMF signals are then presented from the CO.
When the call is presented and the terminating party answers, the Universal
Trunk Card reverses battery and ground on the tip and ring leads to the CO.
