482 NT7D16 Data Access card

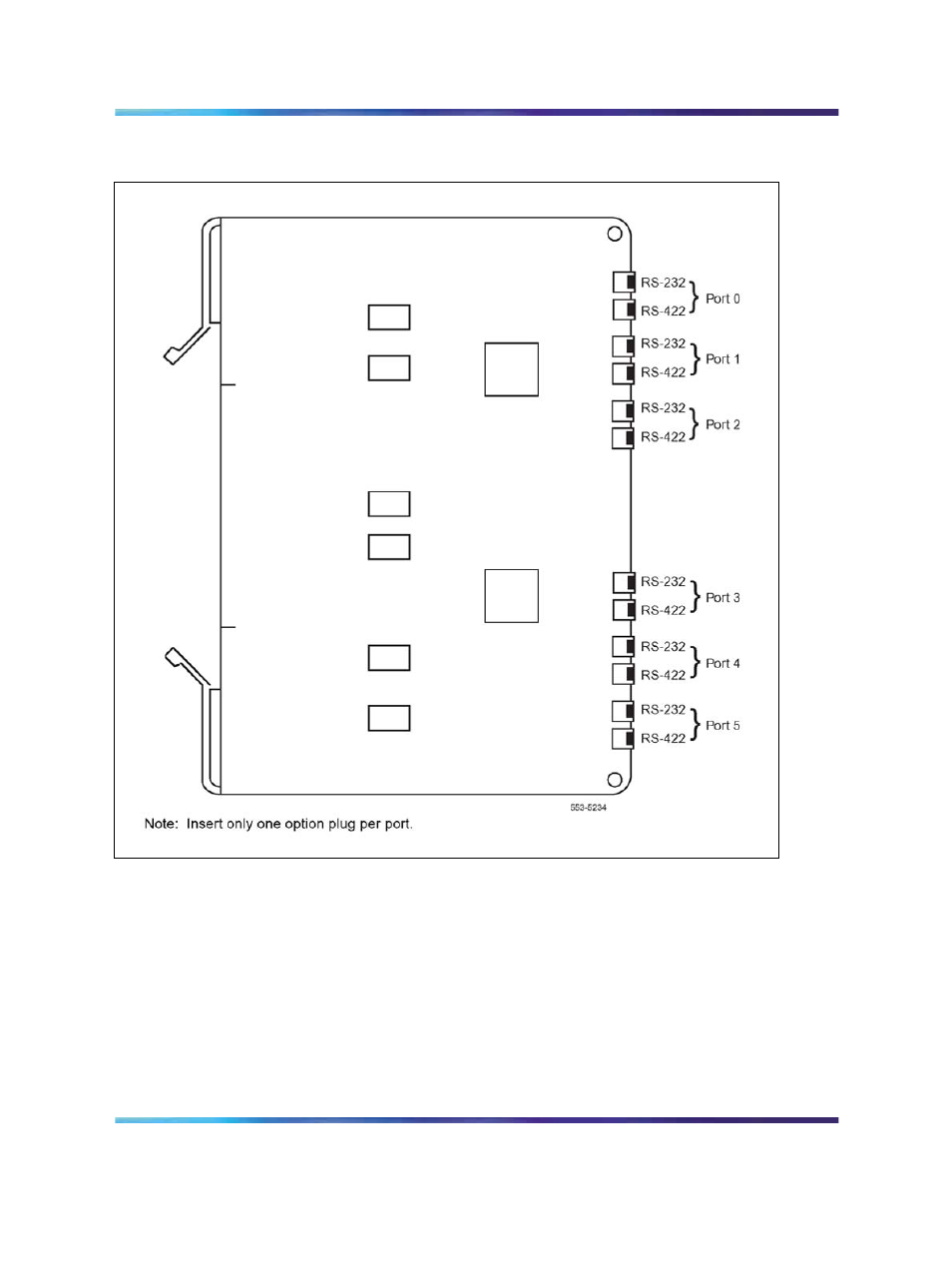

Figure 116
NT7D16 Data Access Card port connectors
Cabling
Several cabling schemes are possible for both AILC and RILC modes.
Typical capacitance for 24- and 26-gauge cables is shown in the
Table 190
"RS-232-C maximum line capacitance 2,500 µF" (page 483) and Table
191 "RS-422 maximum line capacitance 60,000 µF" (page 483) . RS-232
and RS-422 transmission distance is limited by the electrical capacitance
of the cable. Low-capacitance cable carries a digital signal further than a
high-capacitance cable.
