1038 NTDW61 and NTDW66 Common Processor Pentium Mobile Card

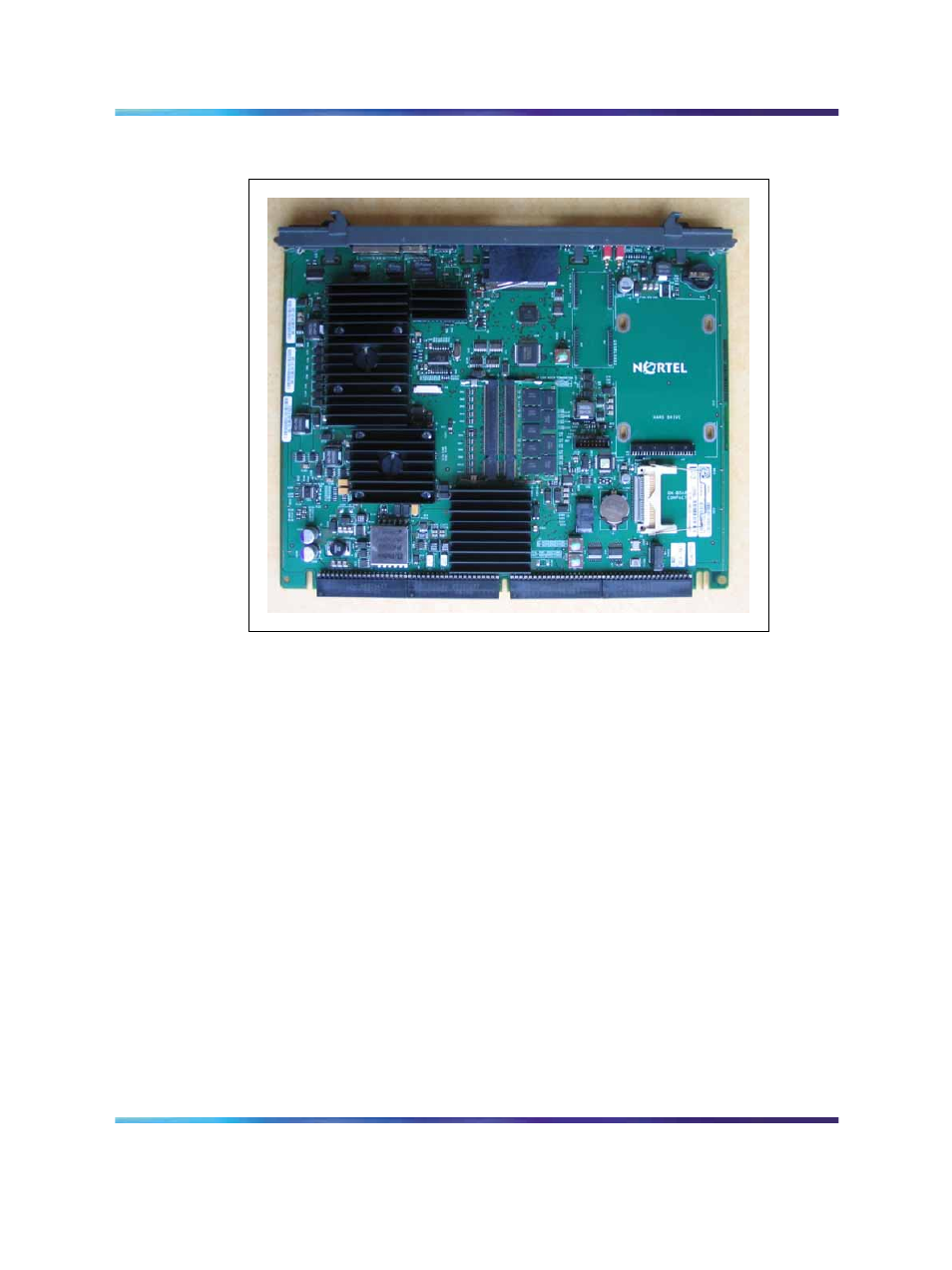

Figure 293
CP PM card
Cabinet/chassis support
The CP PM NTDW61 single-slot card is supported in the following chassis:
• Option 11C cabinet (except for slot 0).
• Option 11C expansion cabinet (except for slot 0).
• Option 11C Mini chassis (except for slot 0 and slot 4).
• Option 11C Mini expander chassis.
• MG 1000E main chassis (except for slot 0).
• MG 1000E expander chassis.
The CP PM NTDW66 double-slot card is supported in the CS 1000M IPE
Universal Equipment Module (UEM).
Slot 0 in the Option 11C , Option 11C expansion, Option 11C Mini and MG
1000E main chassis are reserved for the MGC card. Slot 4 in the Option
11C Mini is reserved for the 48 DLC.
