338 NT5D97 Dual-port DTI2 PRI2 card
• NTCK80AB (18 ft) - DDP2 to MSDL cable
• NTCK80AC (35 ft) - DDP2 to MSDL cable
• NTCK80AD (50 ft) - DDP2 to MSDL cable

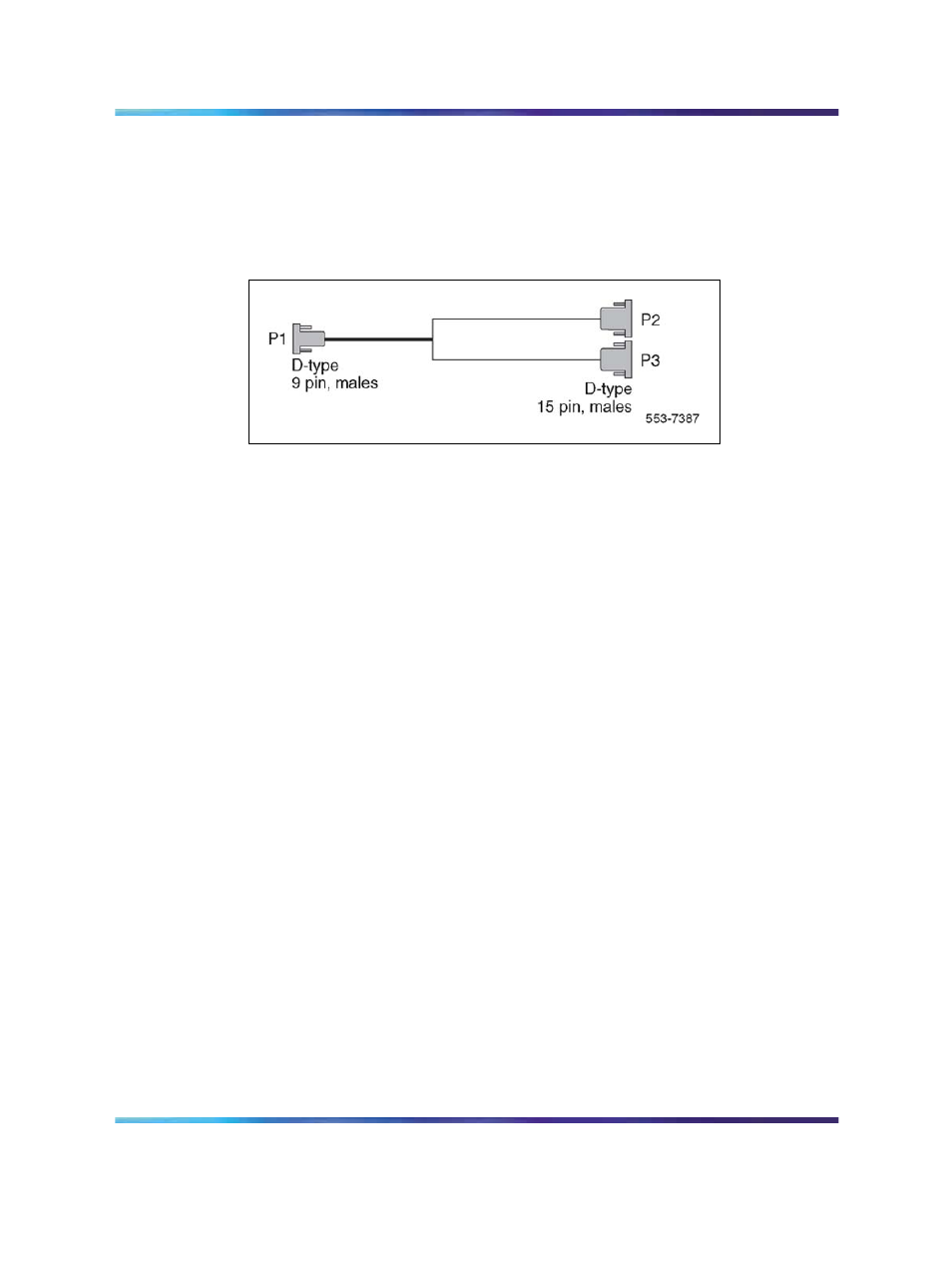

Figure 91
NTCK80AA/AB/AC/AD
Cable diagrams
Figure 92 "DDP2 cable for systems with an I/O panel" (page 339) and
Figure 93 "DDP2 cable for systems without an I/O panel" (page 340) provide
examples of typical cabling configurations for the DDP2.
Figure 92 "DDP2 cable for systems with an I/O panel" (page 339) shows a
typical DDP2 cabling for a system with an I/O panel, with the connection
between the I/O panel and a Network Channel Terminating Equipment
(NCTE).
Figure 93 "DDP2 cable for systems without an I/O panel" (page 340) shows
cabling for a system without an I/O panel. Here, the DDP2 faceplate is
cabled directly to the NCTE.
Note: Since several clock cabling options exists, none has been
represented in the diagrams. Refer to
"Clock configurations" (page
353) for a description on each available option.
