Preview Prefs
Preview displays can be adjusted by the user, including Safe Area borders,
Crosshairs, and the selection of optional multi-image ME Viewer layouts.

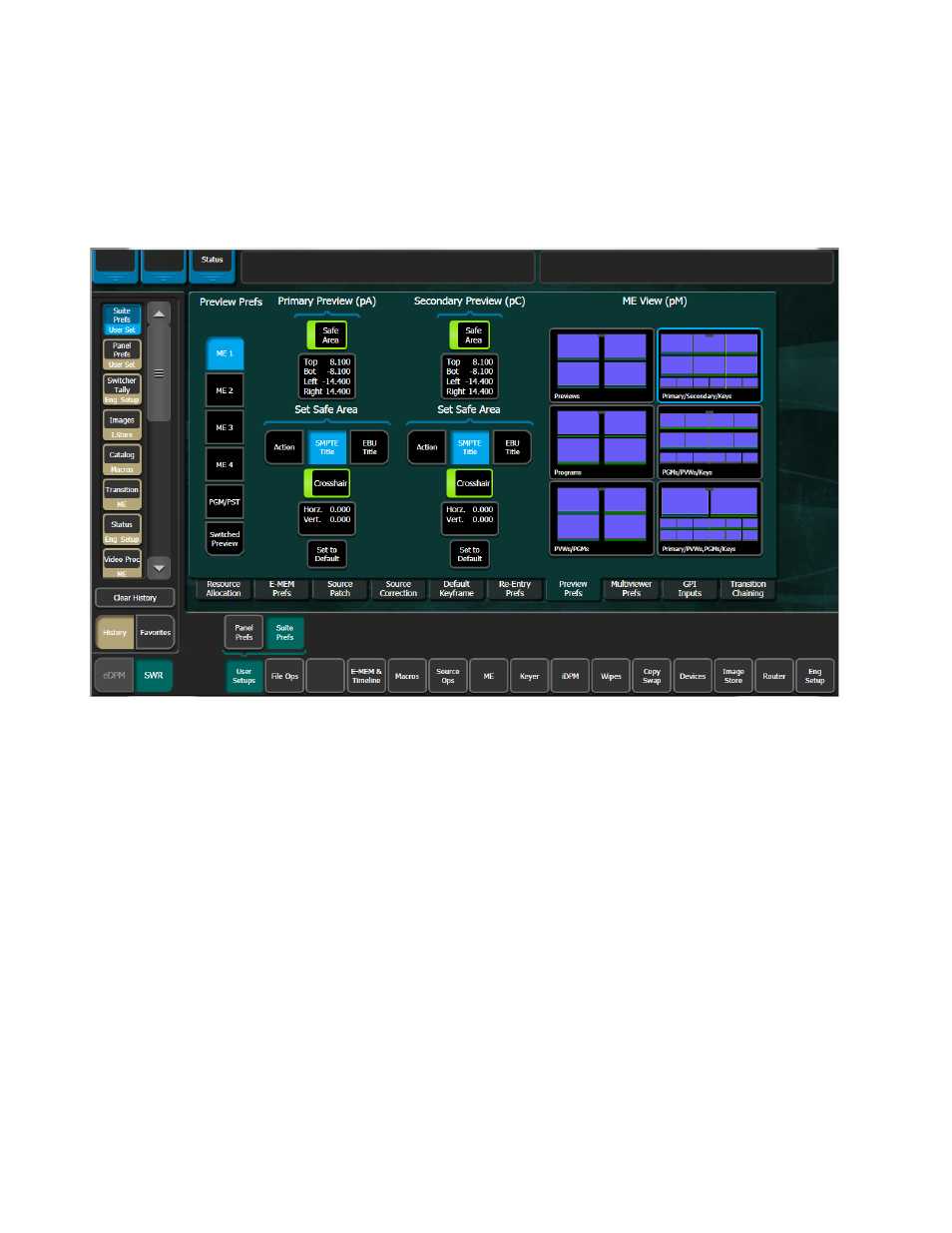

Figure 23. Preview Prefs Menu
• Preview Prefs buttons on the left select the ME or Switched Preview that
will be affected by the settings on the right. Each ME has Primary and
Secondary Preview parameters for Safe Area and Crosshairs, and an
ME Viewer layout. Switched Preview has a single set of parameters for
Safe Area and Crosshairs.
Safe Area
• Safe Area button, when illuminated, activates the Safe Area border
display for the selected preview.
• Set Safe Area data pad displays knob controls on the right used to move
the Safe Area borders.
• Action, SMPTE Title, EBU Title buttons sets the safe area borders to those
standards.
