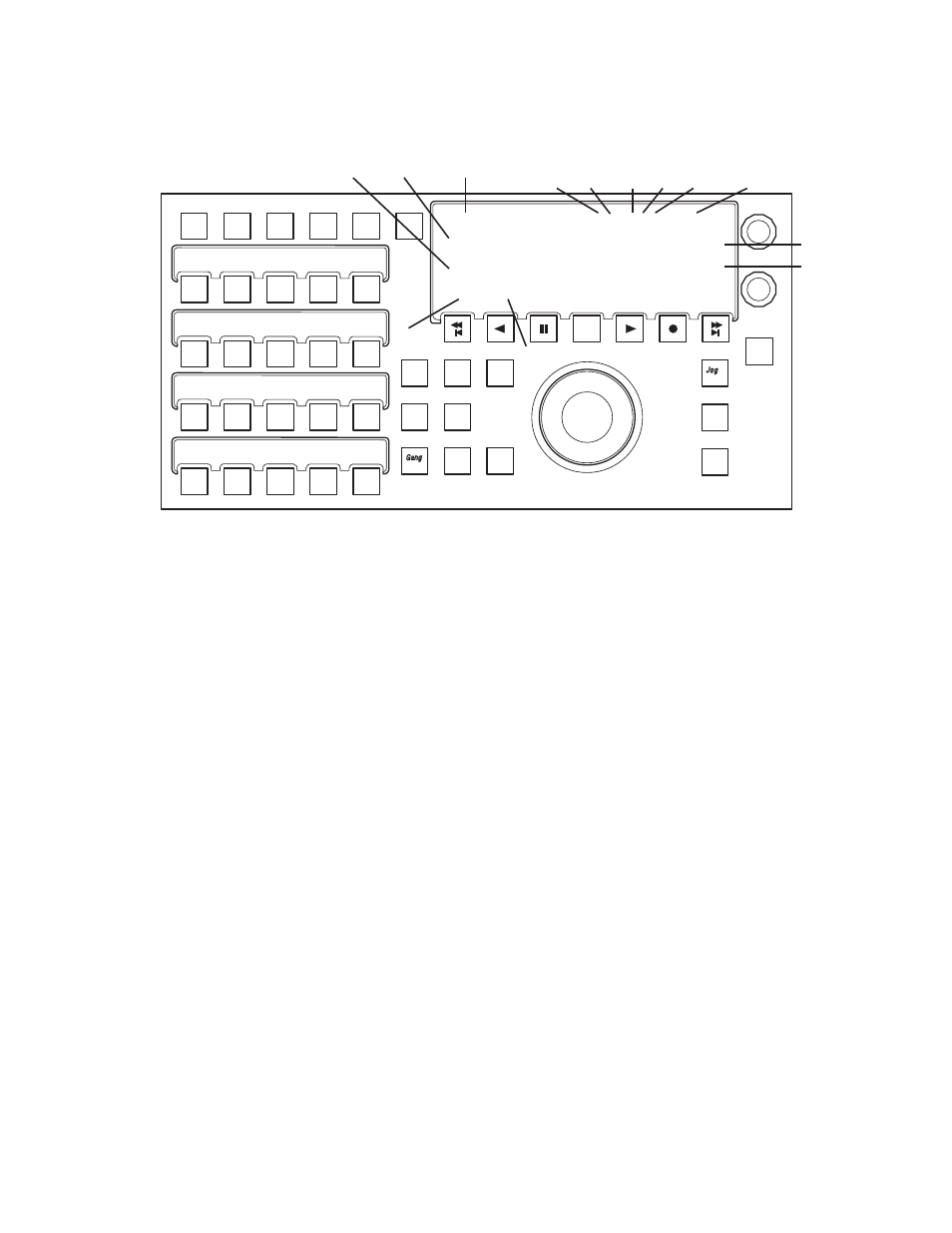

Figure 116. DCM—Cue Links
E-MEM Control of External Devices
Introduction
E-MEM effects can be used to:
• Load, cue, play, and stop DDR clips, and
• Cue, play, and stop tapes in VTRs.
E-MEM Device Control is good for recalling the same clips repeatedly, and
for integrating clips into specific switcher effects. Manual control is appro-
priate when different clips are used each time, and when clips are not used
in a switcher effect (like rolling a news story and taking it directly to air.)
E-MEM Device Control operates independently from the manual controls
on the Multi-Function or Device Control Module, but both mechanisms can
be used together. For example, an E-MEM recall can make a VTR cue up,
then the module can be used to roll that tape.
E-MEM External Device Control utilizes events. External device events are
different from other parameters in the Kayenne E-MEM system. Rather
than defining a value at a keyframe and smoothing the transition between
keyframes with interpolation, a device event consists of instructions sent to
the external device at the time cursor passes the keyframe during an effect
run. This similar to GPI and PBus triggers.
