iDPM Kurl Menu

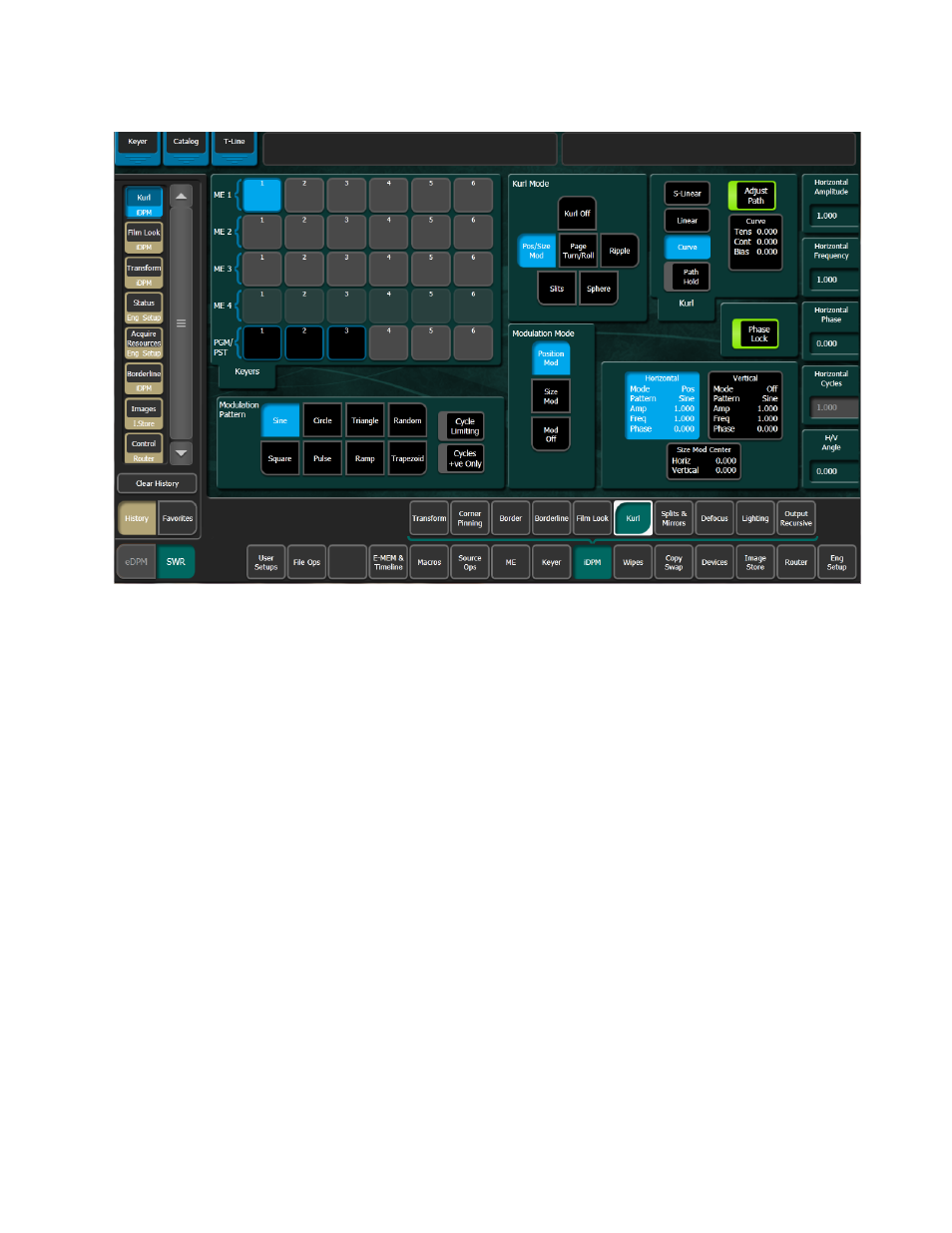

Figure 71. Kurl Menu, Position Modulation
Modulation Pane
In the Modulation pane you select the wave train axis ( Horizontal or Vertical )
for which the rest of the menu controls will apply. The following Soft knob
controls appear on the right for the selected axis:
Amplitude — defines the modulation amplitude (the height of the pattern
waves).
Frequency — defines the modulation frequency and therefore the number of
pattern cycles to appear across the source.
Phase knobs — The Phase Lock button on the right controls whether the
pattern is fixed (on) or moving (off). When Phase Lock is on, the Phase soft
knob is available to control the static location of the phase of the pattern.
When off, the
Speed soft knob is available to adjust the speed of the pattern’s
motion. Negative values can be entered to reverse the direction of the
motion.
H/V Angle — defines the angle of the Position Modulation with respect to
the source X and Y axes.
