Kayenne XL Package — User Manual
Section 5 — Stand-Alone Applications
Main Dialog, Left Part - Online

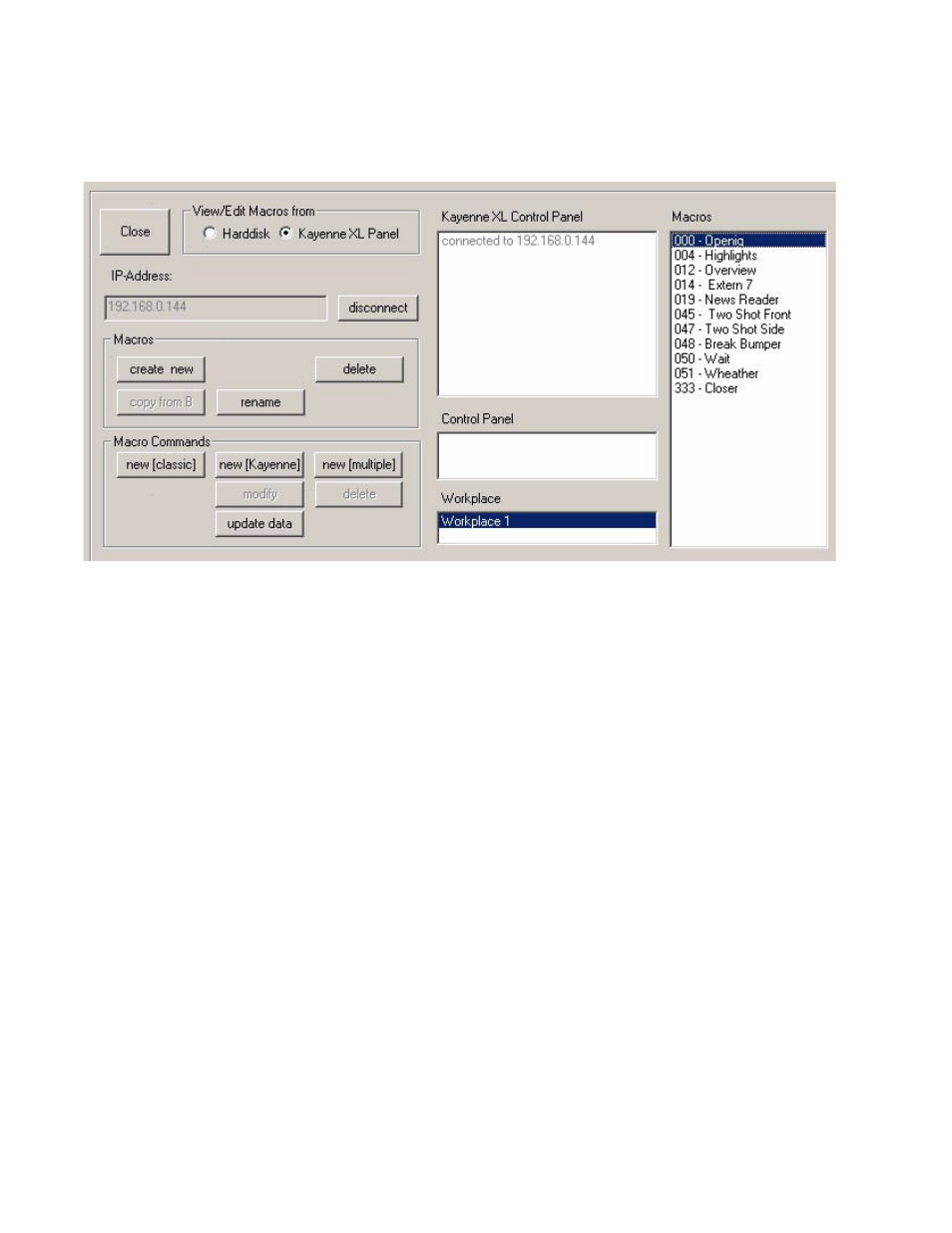

Figure 520. Stand-Alone Macro Editor - Main Dialog - Online
When you select Kayenne XL Panel in View/Edit Macros from you can enter the
IP address of your Kayenne XL control panel. Then press the connect
button.
Select the workplace you are working on (In most case Workplace 1). You
can now create a new macro, rename or delete an existing one or copy a
macro from Macro Overview B. To view the contents of a macro just select it
in the Macros list.
•
To view the contents of a macro:
•
Select Kayenne XL Panel in View/Edit Macros from
•
Enter the IP address of your Kayenne XL control panel
•
Select a workplace
•
Select a macro
Note
You can run this program on the same PC or the Kayenne XL Menu module
in parallel to the Sidepanel application.
