302 Kayenne XL Package — User Manual
Section 4 — Sidepanel Menu Summaries
Extern DVE Page
Menu page for selecting and modifying the parameters of an external
Digital Video Effect System (DVE). For details, refer to the Installation
Manual of your external DVE unit.

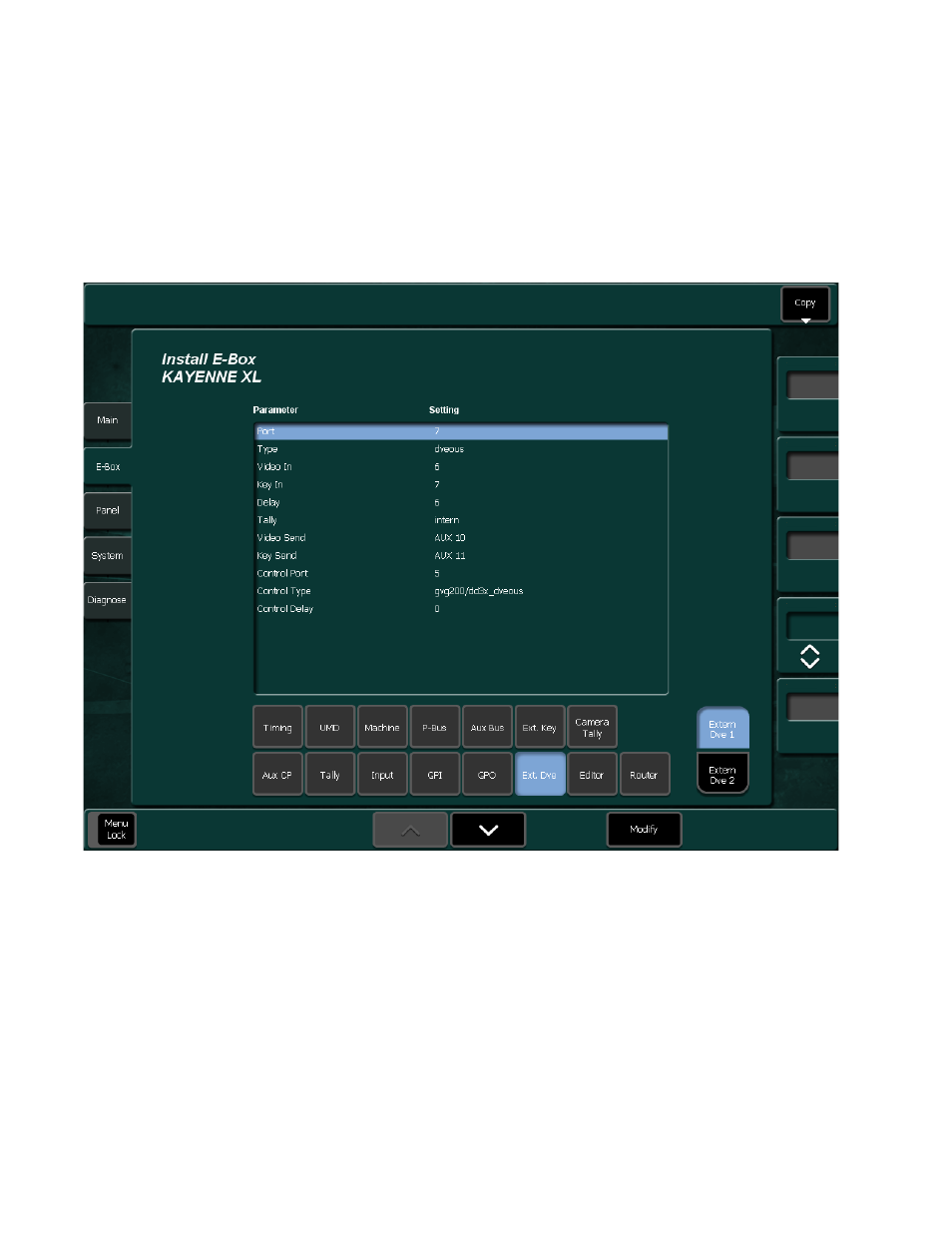

Figure 232. Install E-Box Extern DVE
To program an external DVE, select the parameter from the list in the
central pane. Then select Modify to change the parameters:
• Port: The first item in the menu is the port number. This defines which
unused RS422 port on the mainframe will be connected to the DVE,
here Port 7 is shown.
