Section 4 — Sidepanel Menu Summaries
VTR Emulation Settings
VTR Emulation provides a mechanism to control internal VTR based
switcher components by external editors using the BVW75 protocol. VTR
based components in Kayenne XL are EMEM (Master, PP, M/E1, ...) and
RamRecorder (Channel 1 - 6).
It is possible to control up to 5 component instances simultaneously.

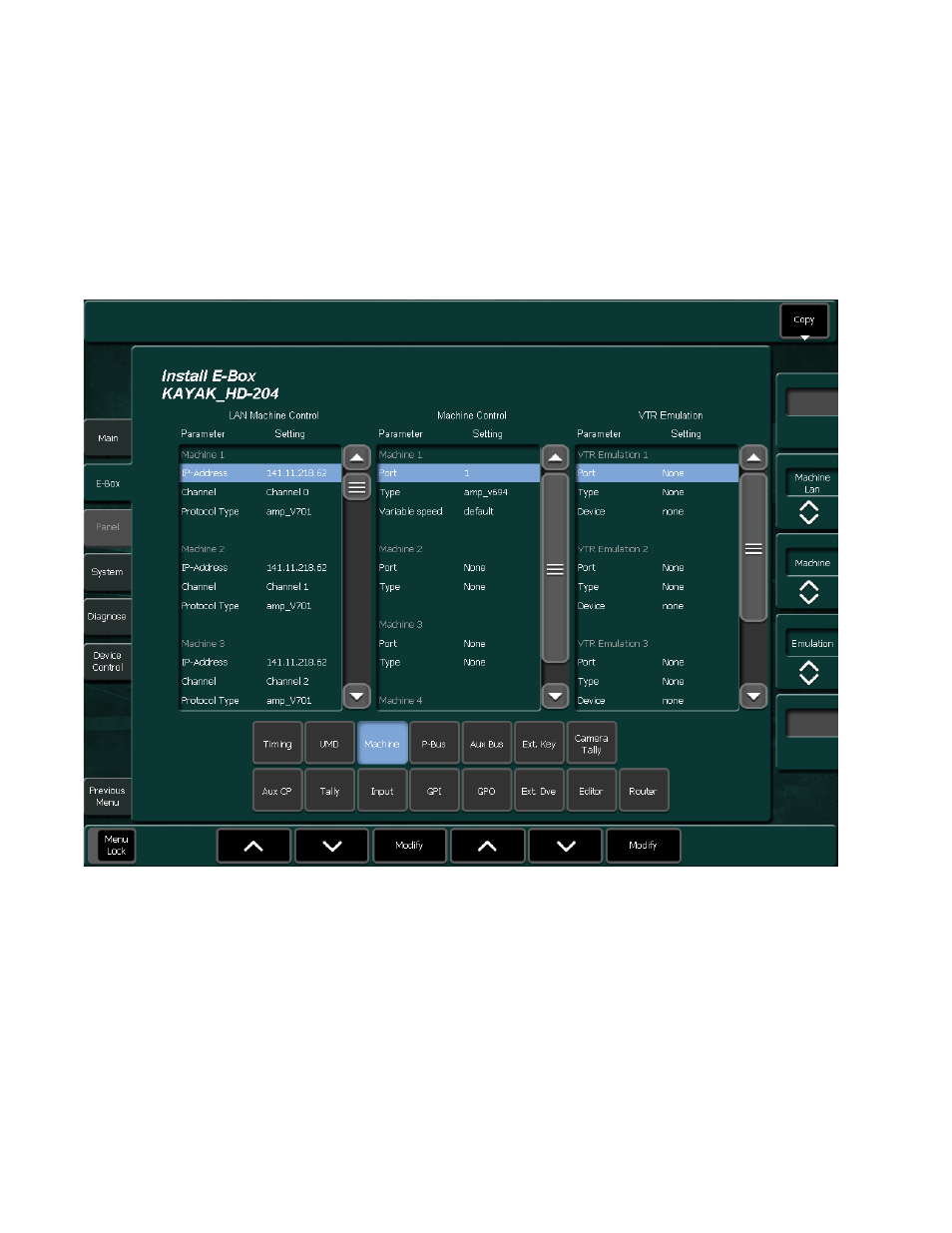

Figure 260. Install E-Box VTR Emulation
To setup a VTR emulation session, select the number of the serial Kayak HD
port (Port button) that is connected to a corresponding serial port of the
editor. Select the BVW75 protocol with the Select Type button. After the
internal component has been selected (Select Device button), the chosen
switcher instance can be controlled by the editor device. To setup addi-
tional sessions, use the VTR Emulation Delegation button.
Note Port and protocol type are environment data and therefore independent from
loading and saving an application. In contrast the type of the internal compo-
nent to control is stored within an application.
