Kayenne XL Package — User Manual
Section 4 — Sidepanel Menu Summaries
Tally Page
The tally signalling for the system works via serial communication line
with the option to hook a hardware device onto that (those) serial line(s) to
provide tally for those cases where it is not connected to a control system,
for example, Jupiter from Grass Valley. For that optional hardware device
the already existing Tally Distributor MI-3040 was chosen. This device is
driven via the serial MPK protocol and has 40 opto-isolated inputs and 40
relay outputs. Because the maximum needed amount of inputs and outputs
is greater than 40, more then one (up to three) MI-3040 boxes are needed.
The menu serves for installing the Tally Distributors connected with the
Kayenne XL. For installation details refer to your MI-3040 manual.
You can configure Tally outputs in the Kayenne XL control panel software
from the Config - GPO/Tally menu which is described in more detail in
section Config menu.

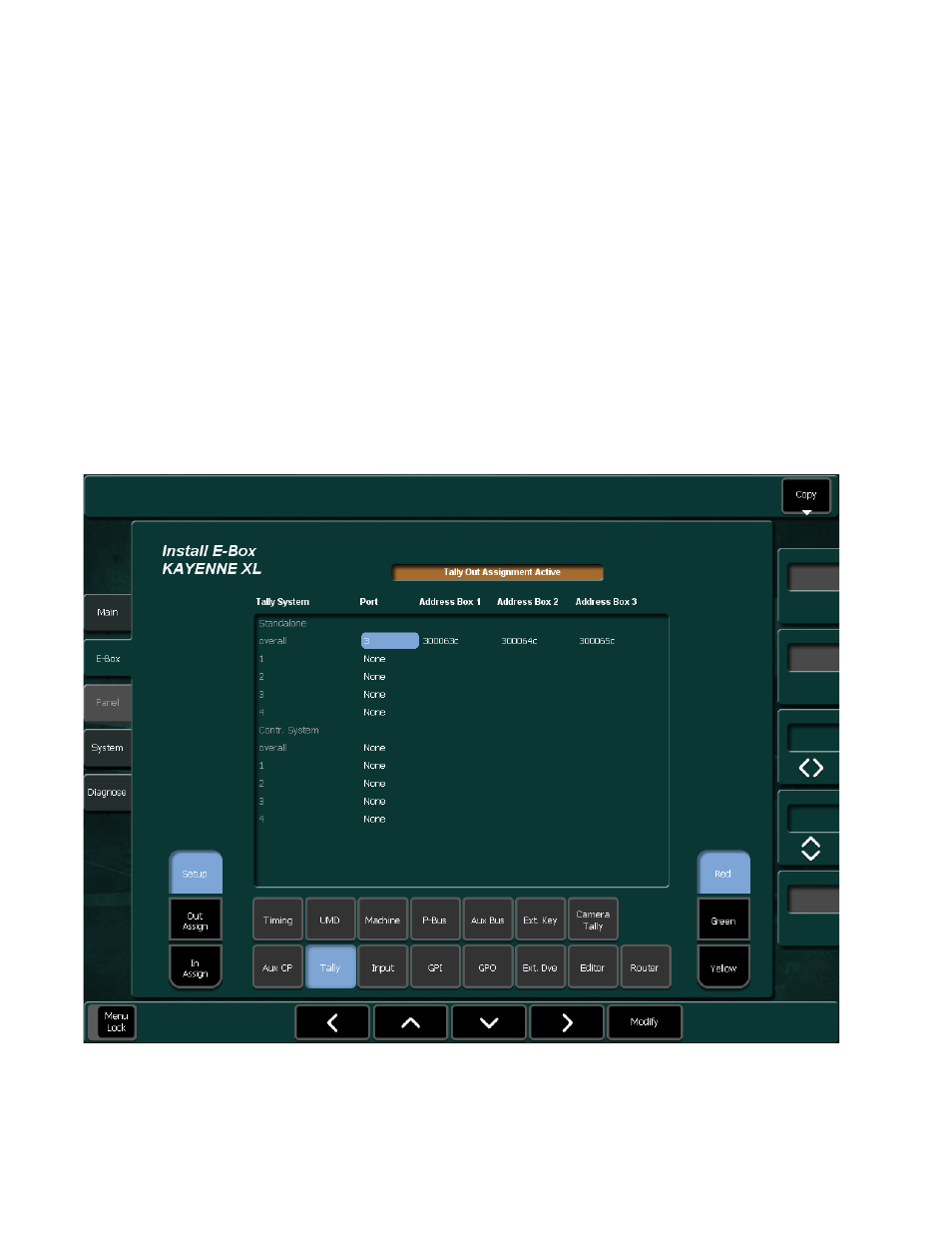

Figure 217. Install E-Box Tally
