326 Kayenne XL Package — User Manual
Section 4 — Sidepanel Menu Summaries
P-Bus Page
The P-Bus menu page serves for setting the P-Bus (Peripheral Bus) param-
eters. The menu defines the machines which can be controlled via an RS422
bus. In the left list box of the P-Bus menu page, these machines can be pro-
vided with a name and can be activated or deactivated.
The right list box enables you to provide for each of these machines the
trigger events with function names (for example, PLAY, SHUTTLE). For
each machine there are the triggers from 0 ... 15 which can be assigned each
to other function. The name can be selected from a list of default names
which provides specific names for this application.
The list of trigger names consists of a fixed-programmed part and a freely
definable part. The freely definable part – 16 names – can be adjusted in the
sub-dialog Edit Names.
For controlling the machines, refer to the section Remote Menu.

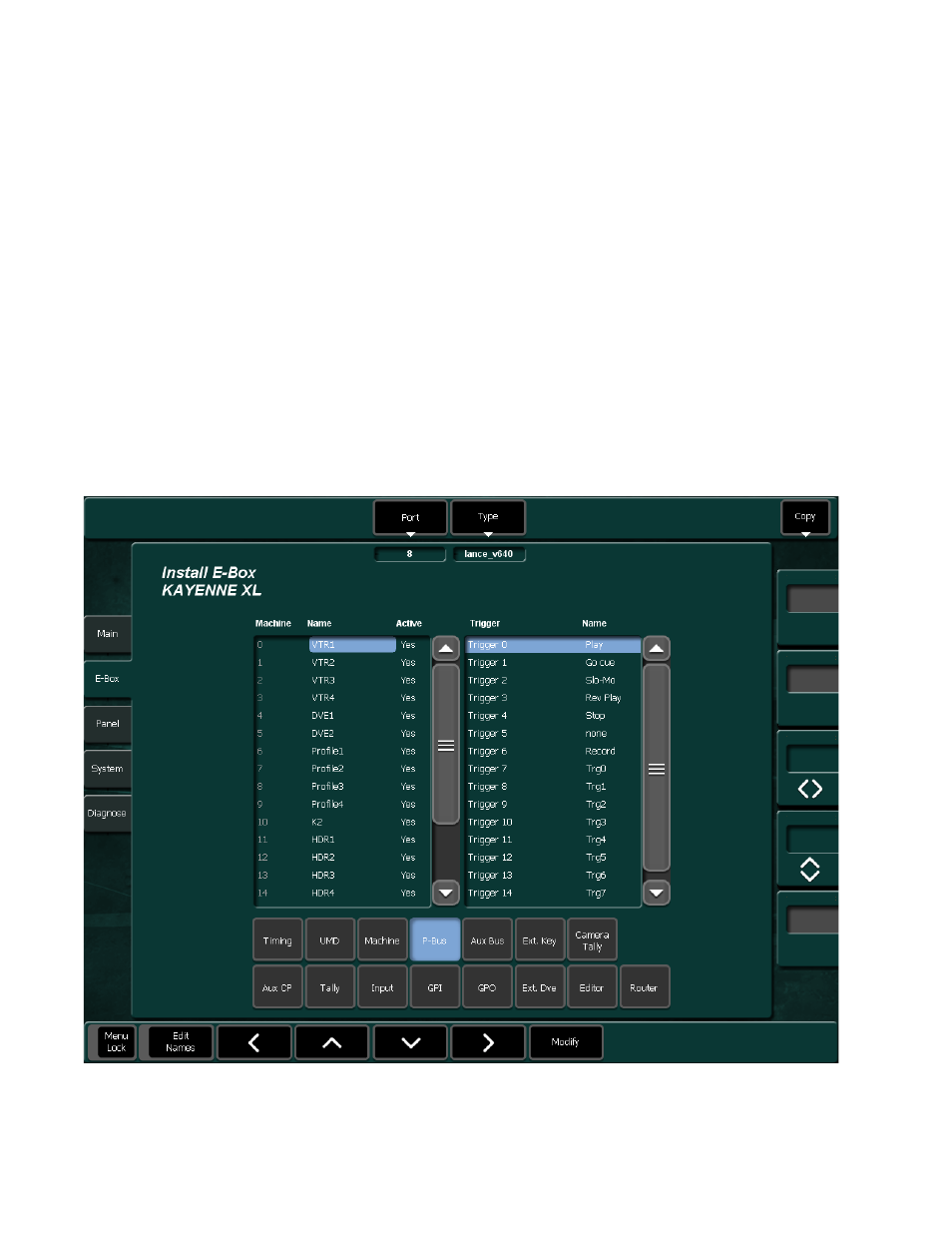

Figure 263. Install E-Box P-Bus
