Install Menu
To program an Input, select the channel from the scrolling list in the central
pane. Then select Modify to change the parameters:
• Type: Shows a pop-up window with all types of AUX Control Panels.

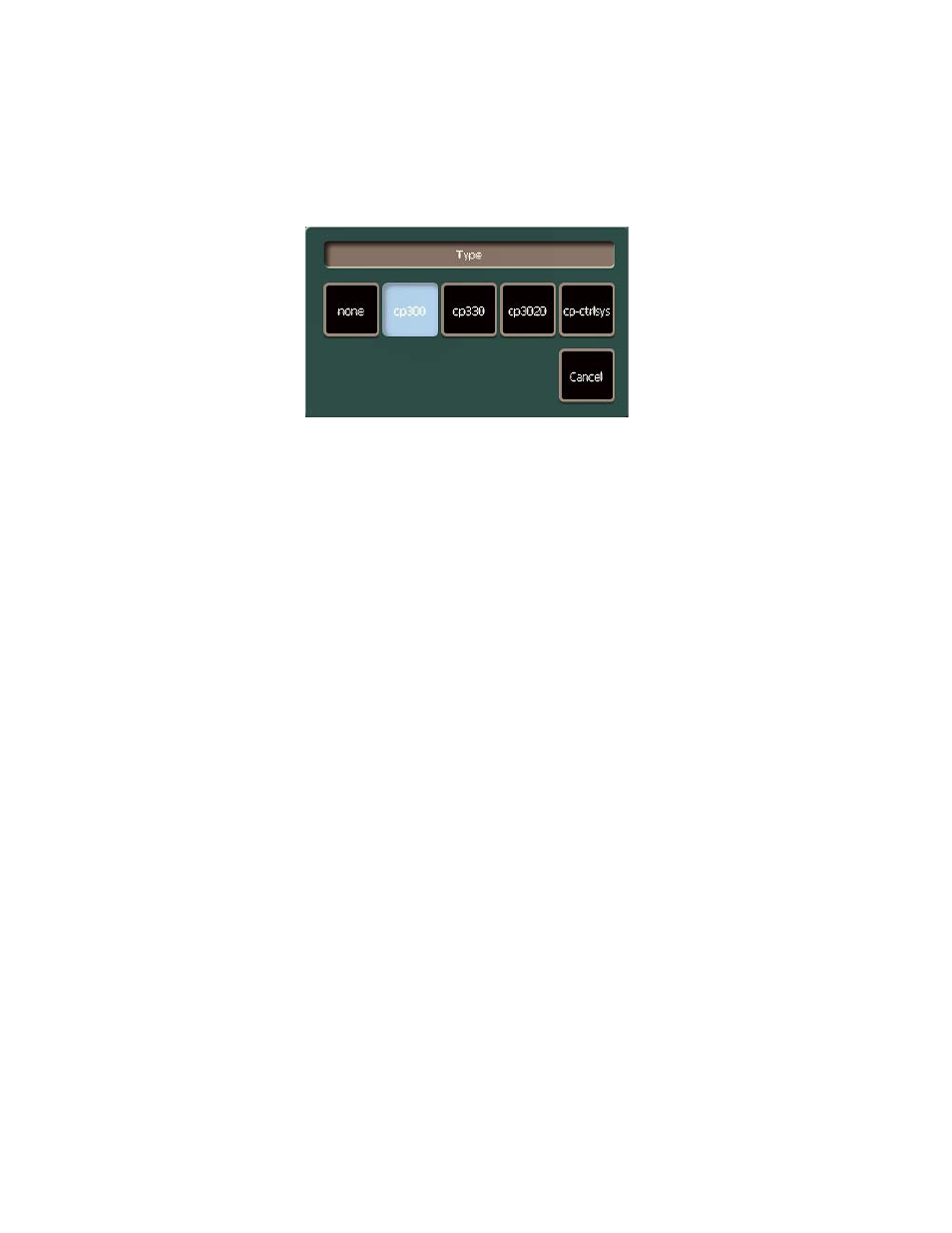

Figure 216. Install E-Box AUX CP Type
• Port: Shows a pop-up window with all ports plus ”None” like in all other
menus where a port must be configured.
Note The port must be different to the ports used for DVEs, Editors, ext. DSKs, etc.
• MPK-Address: Opens the typewriter pop-up window. The physical MPK
address of the AUX-CP must be entered. Refer the label at the rear of
the panel modules (for example, CP-3020: e0002d43).
