Kayenne XL Package — User Manual
317
Install Menu
UMD Page
Grass Valley offers a wide range of programmable 8-character Under
Monitor Displays, especially designed for use in Production Switcher
applications and in Control Systems for indication of source names and
Tally. Single, double and triple displays are available.
The standard modules offer green 8-character displays with red tally lights
on both sides of the display, able to be switched individually on and off for
yellow Tally. The latest versions comprise dual-color-8-character displays
which will switch the source name characters from green to an intensive
red for Tally indication.
The menu serves for installing the Under Monitor Displays connected with
the Kayenne XL and setting the tally mode. For details, refer to your Under
Monitor Display manual.

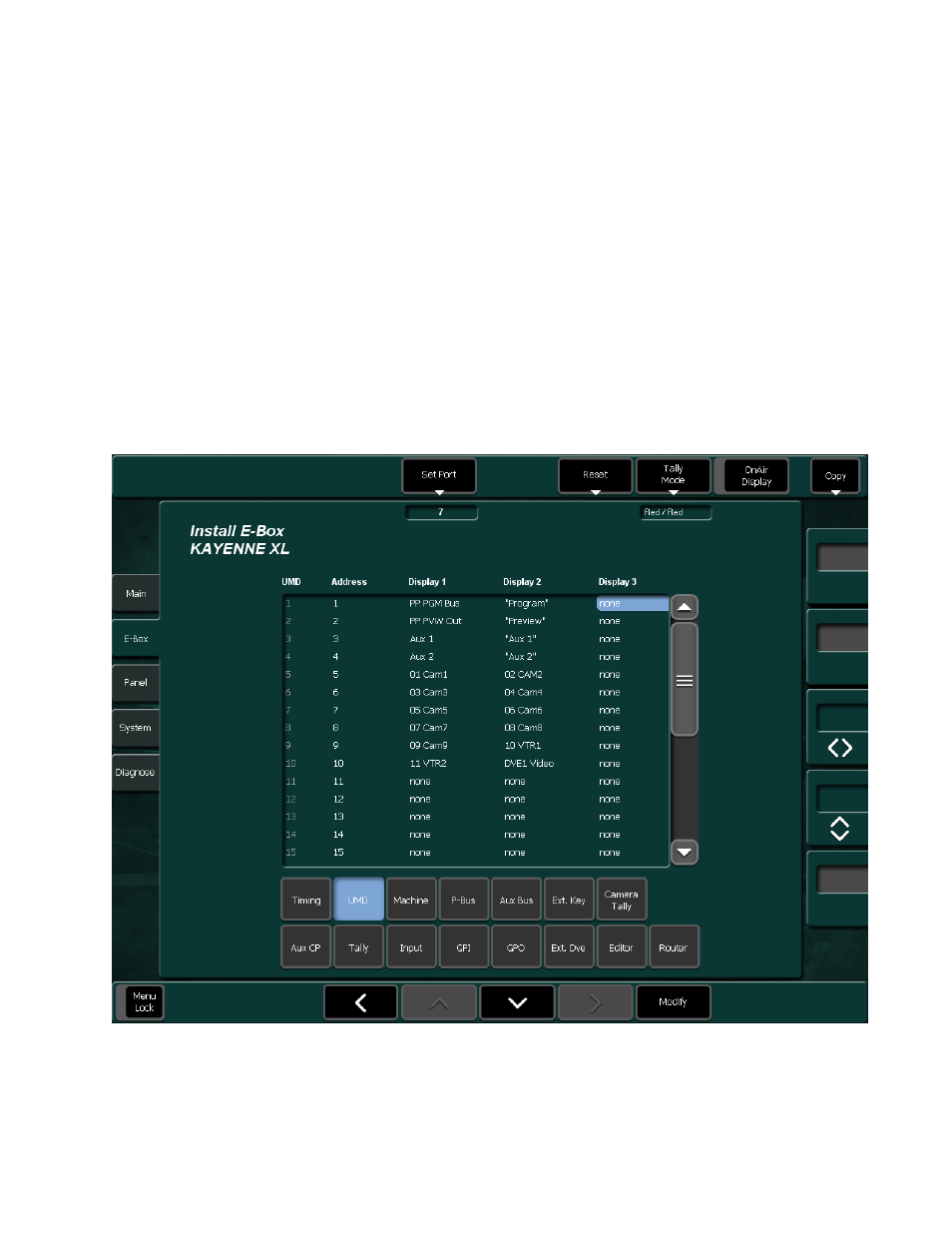

Figure 251. Install E-Box UMD
