Section 3 — Control Panel
System Bars
Overview
There are three lengths of system bar to accommodate the four basic
models of panel.
The System Bar is used for
• Switched Preview selection
• Macro Recording / Editing
• Machine Control

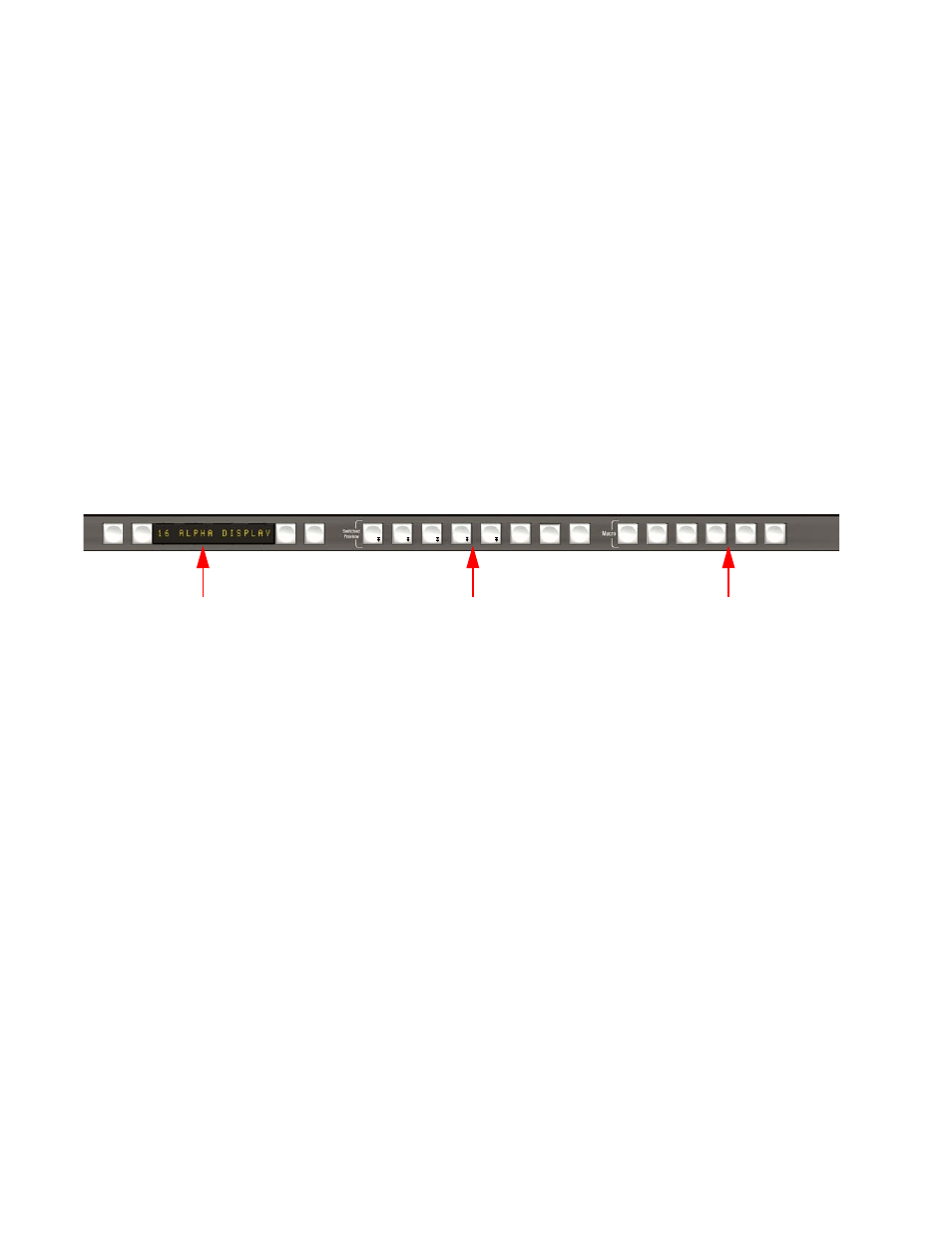

Figure 117. System Bar
The Kayenne XL control panel types are different:
• The 4, 3 and 2 M/E control panels (35 sources) have 6 machine control
groups.
• The 2 M/E panel (25 sources) has 6 machine control groups.
• The 1 M/E panel (15 sources) has 2 machine control groups.
ME
1 ME
2 ME
3 PGM ME
h eDPM Attch
Enable Show
Attch Repl
Attch Delete Ins
Pause Rec Cue/
Load Play Prev Next
Machine Control Group Switched Preview Macro Recording /Edting
