436 Kayenne XL Package — User Manual
Section 4 — Sidepanel Menu Summaries
Attached Macros Page
The macro attachment viewer shows you all macro attachments to all
buttons on all levels.

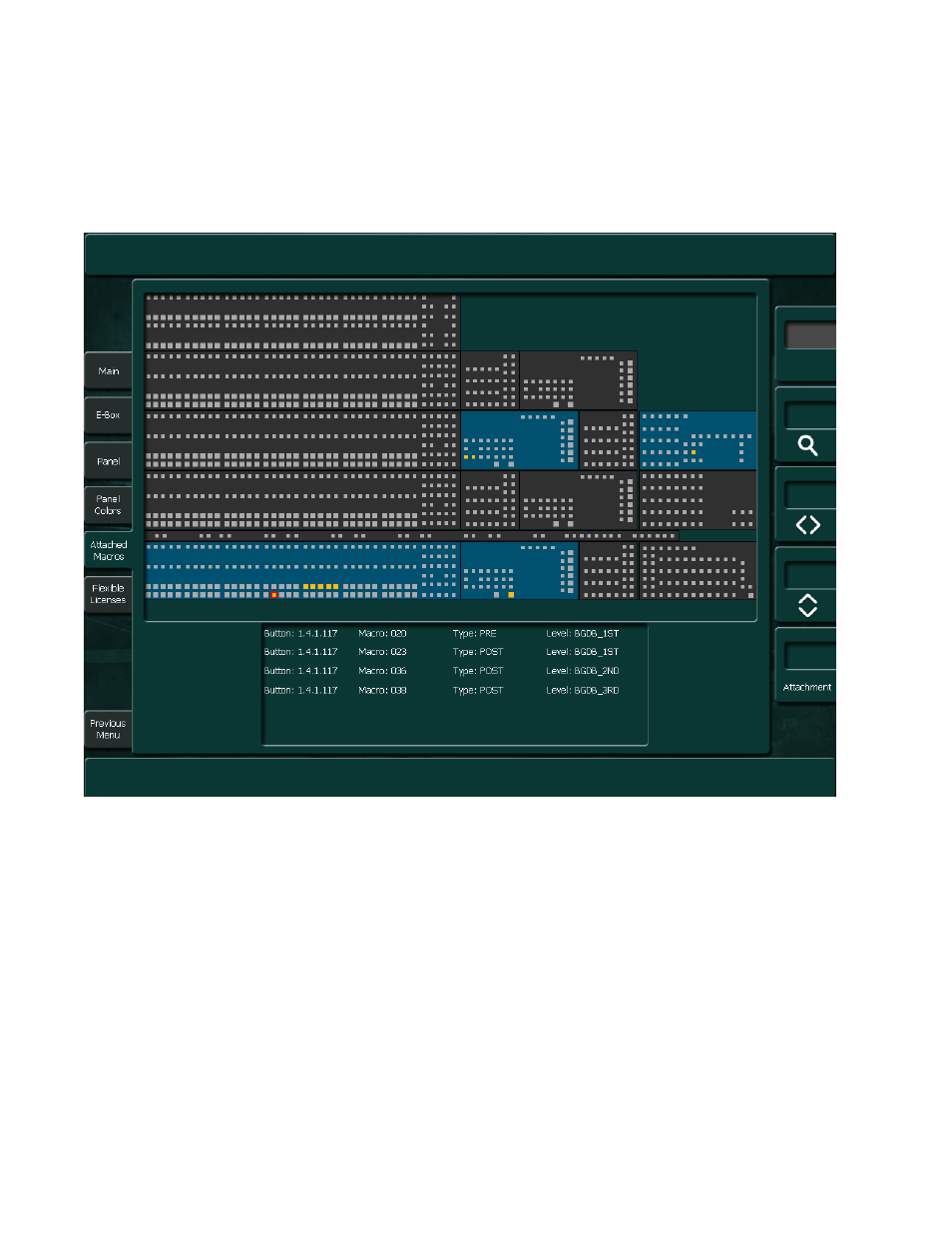

Figure 355. Config Panel Attached Macros
You can zoom and shift the display by the according digipots.
When at least one macro is attached to a module the module turns blue.
The individual attachments are indicated in yellow. The listbox in the
bottom shows the attachments for the selected button (red border).
• Button: Unique identifier of the button in the control panel
• Macro: Number of the attached Macro.
• Type: Can be Pre-attachment, Post-attachment, Replace-attachment.
• Level: Logical delegation level.
