Kayenne XL Package — User Manual 385
Config Menu
To configure the Aux Bus Couple parameters, select the parameter from the
scroll list. Then press Modify to change the parameters.
• Coupled To: Select the desired switcher bus
• Mode:
• Normal: In coupled mode, additional selection of sources on the
AUX bus is possible.
• Exclusive: In coupled mode, additional selection of sources on the
AUX bus is not possible.
• Subst. Table: 
With the Subs. Table button, a substitution table can be selected. These
tables can be used by coupled AUX buses or coupled M/Es to exchange
the source when the coupled AUX bus follows his master.

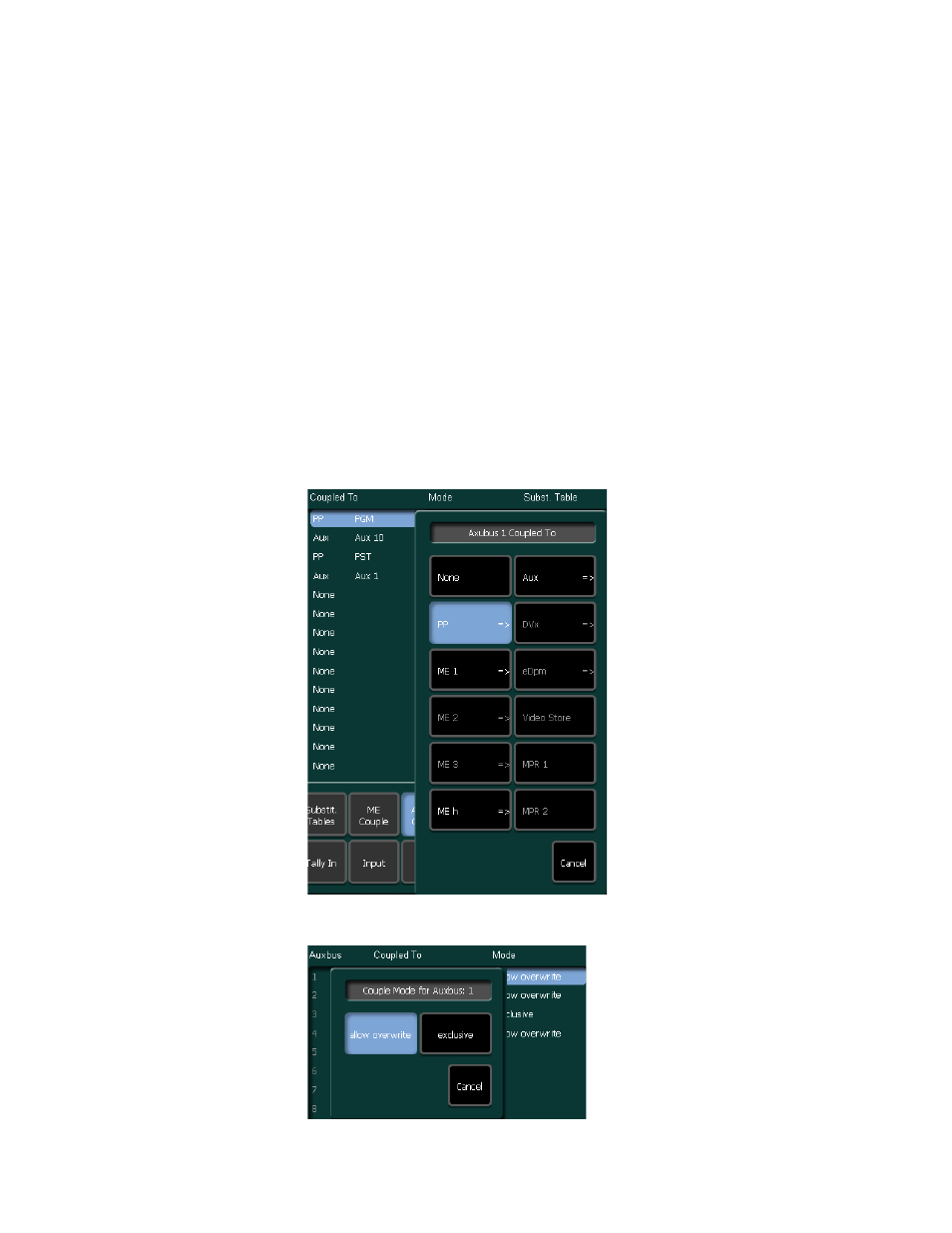

Figure 314. Config E-Box Aux Bus Couple Auxbus Coupled to...
Figure 315. Config E-Box Aux Bus Couple Mode
