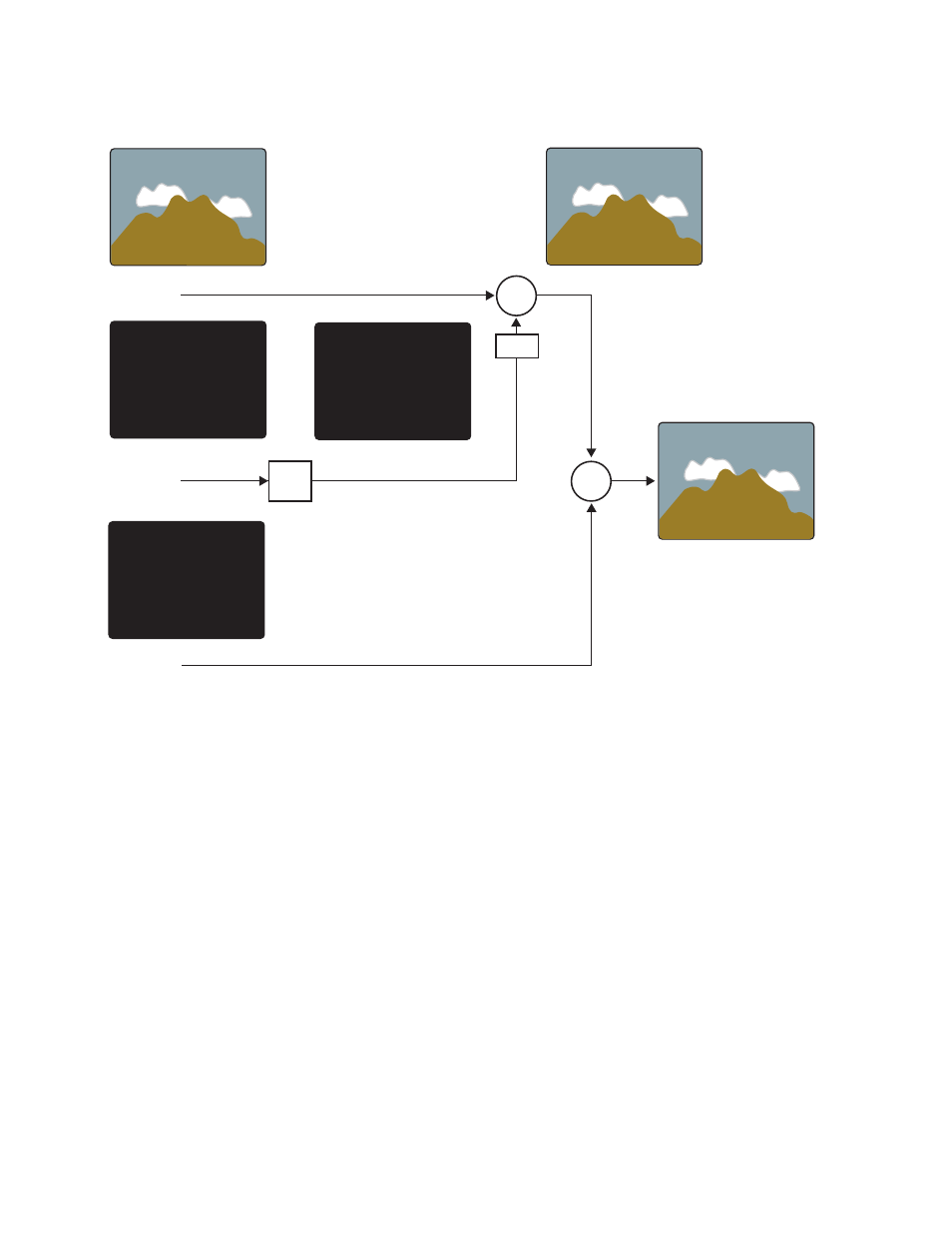

Figure 12. Linear Keying
Note The soft edges in the illustrations in this part of the manual are simulated. The
key edges are actually gradients, which
enable these edges to blend
smoothly with the background. In the Kayak HD System the Linear Key is just
a special parameter setup of the Luminance Key
Background Video
Key Cut Key Control
(typically unchanged)
Completed
Linear Key
Key Fill
LOGO LOGO
LOGO LOGO
+
Key Hole in Background
x
Clip
Gain
Invert
0618_00_61
LOGO LOGO
L O G O
L O G O
