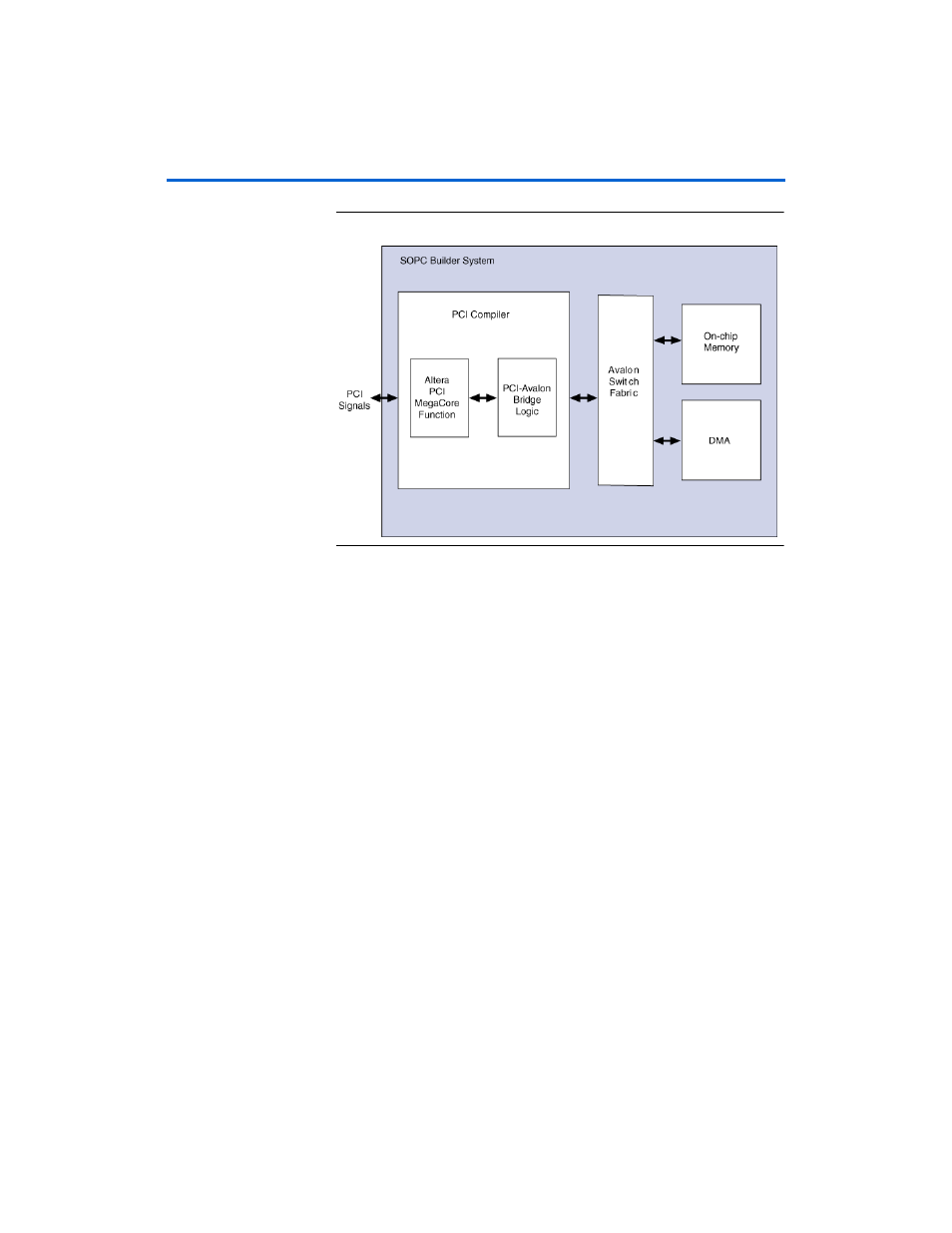

Figure 5–1. System Generated Using SOPC Builder
1 This walkthrough uses Verilog HDL to create a system. You can
substitute VHDL for Verilog HDL.
This walkthrough consists of these steps:
■ Create a New Quartus II Project
■ Set Up the PCI-Avalon Bridge
■ Add the Remaining Components to the SOPC Builder System
■ Complete the Connections in SOPC Builder
■ Generate the SOPC Builder System
Create a New Quartus II Project
You need to create a new Quartus II project with the New Project Wizard,
which specifies the working directory for the project, assigns the project
name, and designates the name of the top-level design entity. To create a
new project follow these steps:
1. To run the Quartus II software, select Programs > Altera > Quartus
II
<version> from the Windows Start menu. You can also use the
Quartus II Web Edition software.
2. On the File menu, click New Project Wizard.
3. Click Next in the New Project Wizard: Introduction (the
introduction does not display if you turned it off previously).
