Configuring Enhanced PLC-5 Processors 2-29

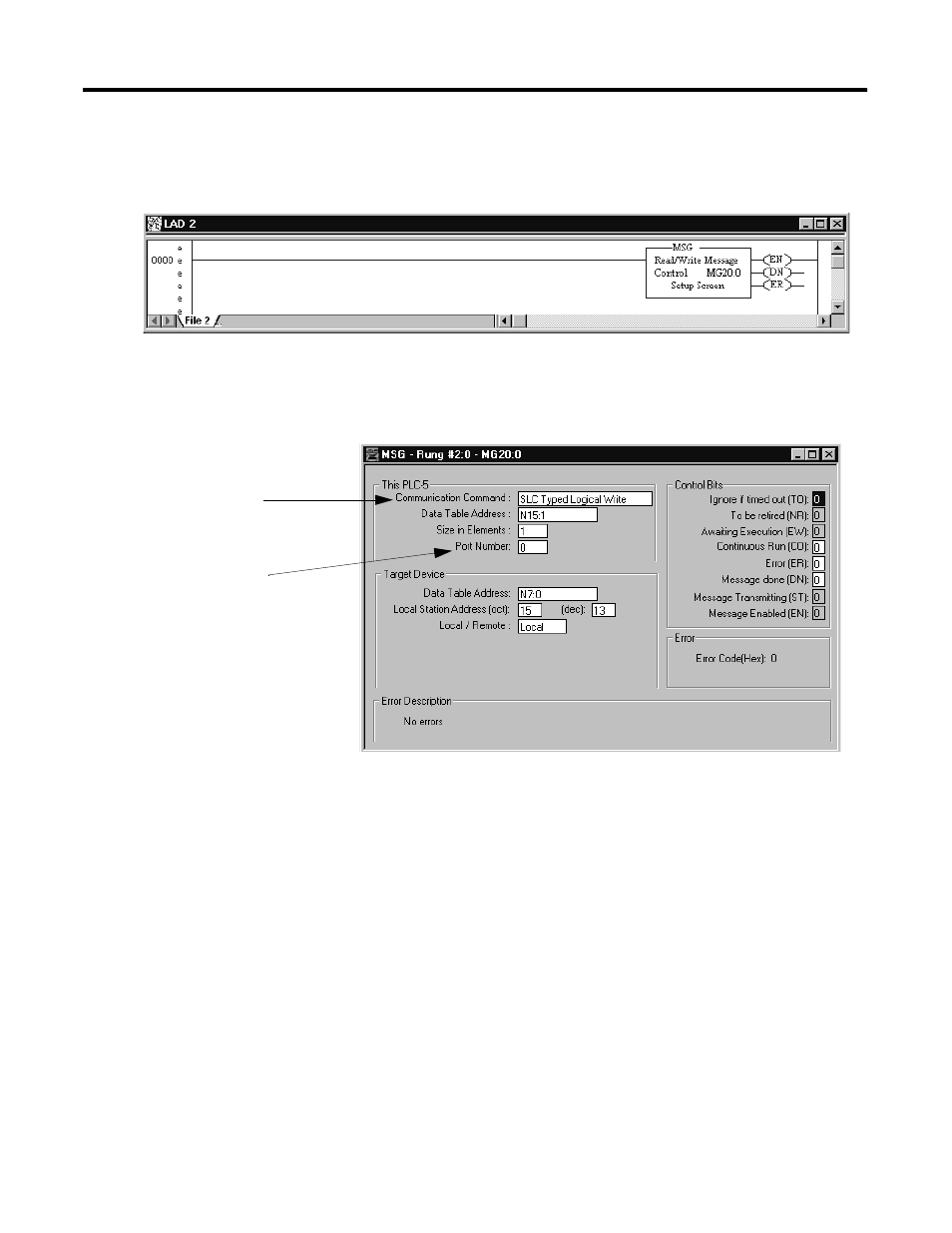

Figure 2.8 Example of a PLC-5 Write MSG to an SLC 500 or MicroLogix Processor
This MSG example tells the PLC-5 master station to write the
information from its N15:1 through its serial port (channel 0) to the
SLC 500 slave station 13
10
(15
8
). The data’s destination is N7:0 of the
SLC 500 slave station.
Ladder Rung
Control Block
MSG being sent to an SLC 500
or MicroLogix processor.
MSG being sent out channel 0
(must use MG file type).
