Rockwell Automation DAG6.5.8 APPLICATION GUIDE SCADA SYSTEM User Manual
Page 112
Publication AG-UM008C-EN-P - February 2005
3-44 Configuring MicroLogix 1100/1200/1500 Controllers

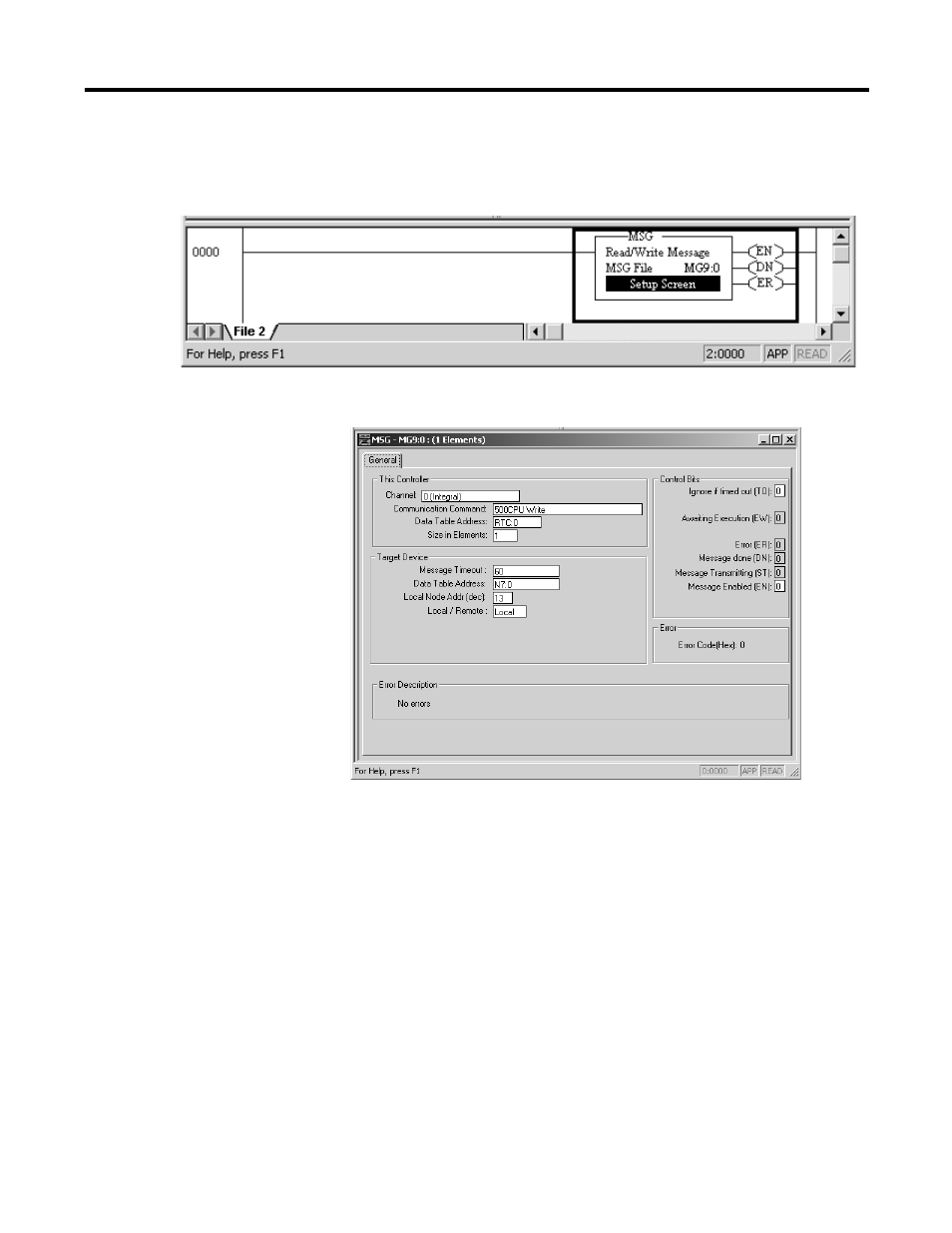

Figure 3.9 Write MSG from a MicroLogix 1100/1200/1500 controller to an SLC 500 or
MicroLogix Controller
In this example, the MicroLogix master station is issuing a write
request through its serial port to SLC station 13
10
. The master station
wants to
write the information from RTC:0 into station 13
10
’s file N7:0.
