2-4 Configuring Enhanced PLC-5 Processors
To configure the processor for a master station using standard
communication, place the processor into program mode and follow
the steps below using your RSLogix
™ 5 software:

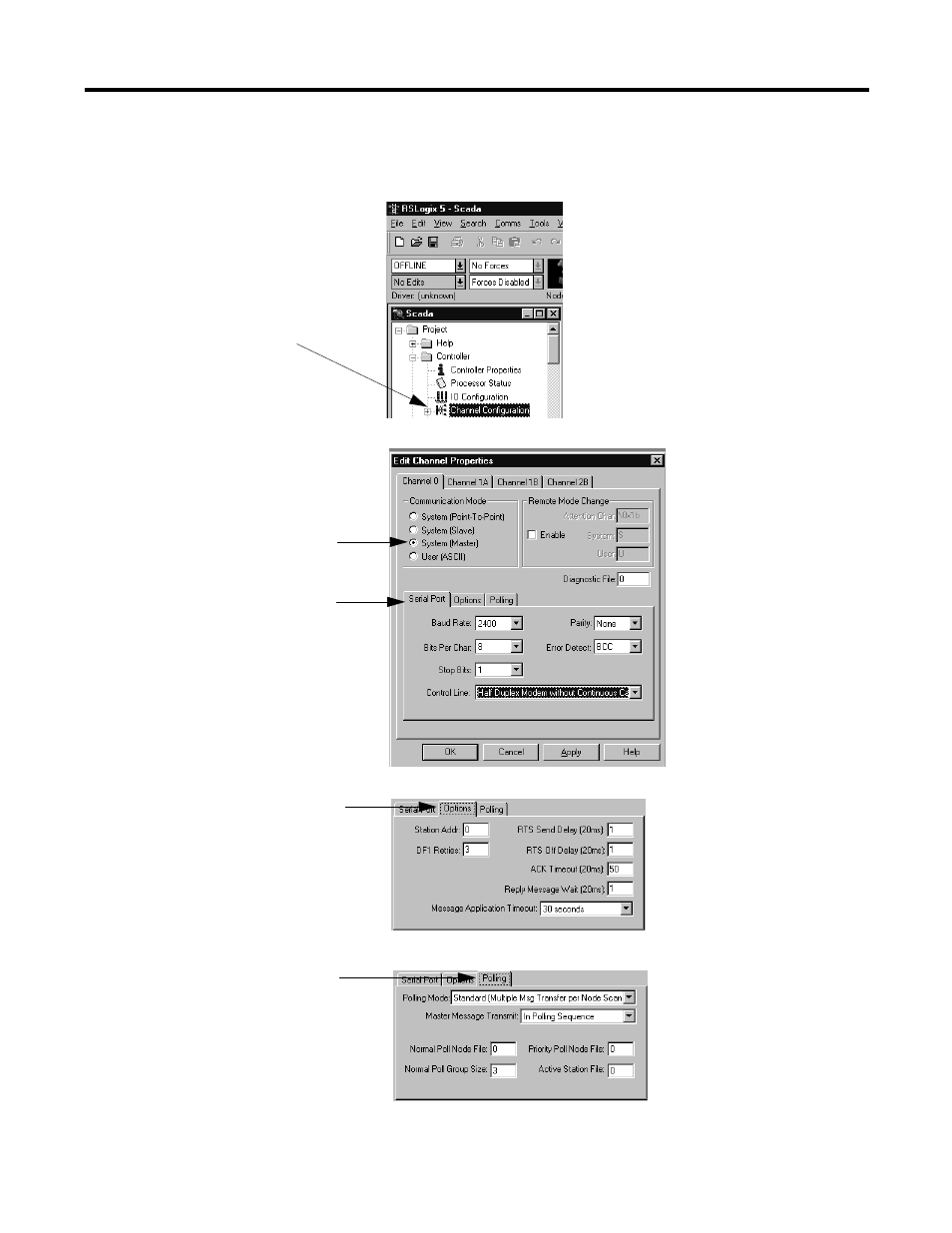

1. Double-click on the Channel
Configuration file to bring up
the Edit Channel Properties
interface.
2. On the Channel 0 tab, choose
System (Master) for your
Communication Mode.
3. Configure the Serial Port,
Options, and Polling
parameters according to
Table 2.1.
4. Configure Options parameters
according to Table 2.1.
5. Configure the Polling
parameters according to
Table 2.1.
6. When all parameters are set,
click OK.
7. Create station lists (page 2-8).
