2-26 Configuring Enhanced PLC-5 Processors
Example MSG Control Blocks

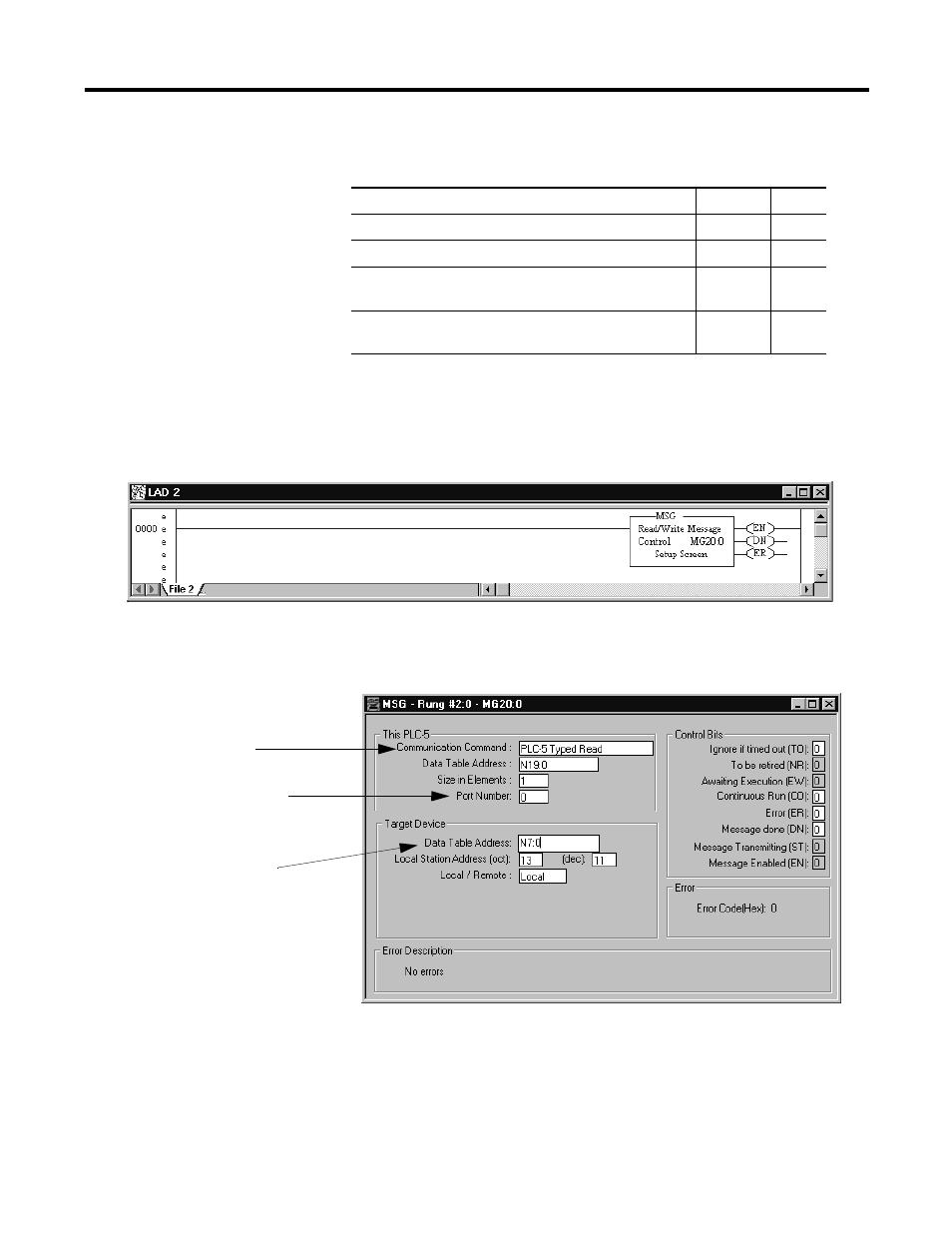

Figure 2.5 Example of a PLC-5 read MSG to Another PLC-5
(or SLC 5/03, 5/04, 5/05, MicroLogix 1100/1200/1500, or Logix) processor
This MSG example tells this (master) PLC-5 to read the information
from PLC-5 (slave) station 13
8
’s, location N7:0 and place the
information in file N19:0 (master).
Application See Page
PLC-5 read message to another PLC-5 processor Figure 2.5 2-26
PLC-5 write message to another PLC-5 processor Figure 2.6 2-27
PLC-5 read message to an SLC 500 or MicroLogix 1000
processor Figure 2.7 2-28
PLC-5 write message to an SLC 500 or MicroLogix 1000
processor Figure 2.8 2-29
Ladder Rung
Control Block
MSG being sent to another
PLC-5 processor.
If the destination were a Logix
processor, then the address
could also be entered as
’tagname’.
MSG being sent out channel
0 (must use MG file type).
